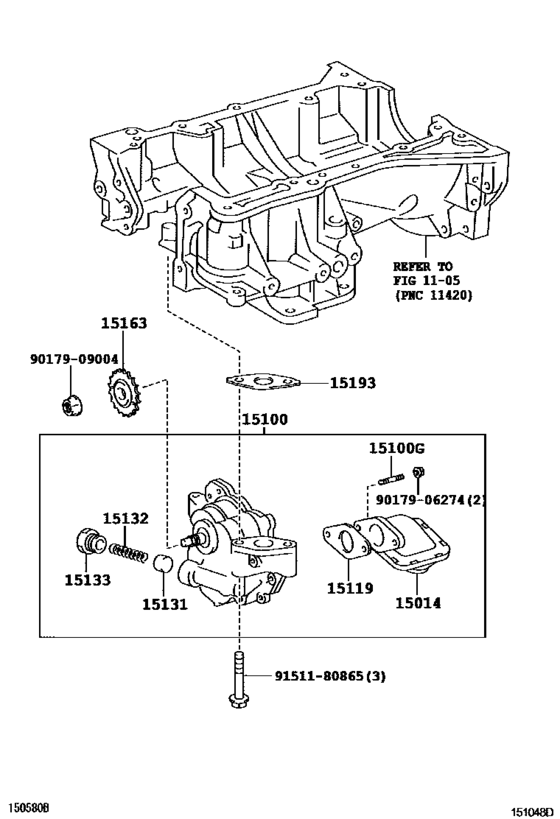

Engine Oil Pump ([11.2005 - ] (0511- )2AZFE) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- G
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15014
|
15014
15014-28020 Strainer Set, Oil Pump[11.2005 - 12.2008] 2AZFE..ACA31,33,38 |
15014-28020 |
from US $15.29 |
||
|
15100
|
15100
15100-28020 Pump Assy, Oil[11.2005 - 12.2008] 2AZFE..ACA31,33,38 |
15100-28020 |
from US $80.16 |
||
|
15100G
|
15100G
15183-28020 Bolt,stud(For Oil Pump)[11.2005 - 12.2008] 2AZFE..ACA31,33,38 |
15183-28020 |
US $5.02 |
||
|
15119
|
15119
15119-28020 Gasket, Oil Pump Cover[11.2005 - 12.2008] 2AZFE..ACA31,33,38 |
15119-28020 |
from US $4.19 |
||
|
15131
|
15131
15131-46040 Valve, Oil Pump Relief[11.2005 - 12.2008] 1AZFE..ACA30; 2AZFE..ACA31,33,38 |
15131-46040 |
from US $2.94 |
||
|
15132
|
15132
15132-46020 Spring, Oil Pump Relief Valve[11.2005 - 12.2008] 1AZFE..ACA30; 2AZFE..ACA31,33,38 |
15132-46020 |
from US $1.42 |
||
|
15133
|
15133
15133-28020 Plug, Oil Pump Relief Valve[11.2005 - 12.2008] 1AZFE..ACA30; 2AZFE..ACA31,33,38 |
15133-28020 |
from US $2.24 |
||
|
15163
|
15163
15163-28010 Gear, Oil Pump Drive Shaft[11.2005 - 12.2008] 1AZFE..ACA30; 2AZFE..ACA31,33,38 |
15163-28010 |
from US $3.74 |
||
|
15193
|
15193
15193-28010 Gasket, Oil Pump[11.2005 - 12.2008] 1AZFE..ACA30; 2AZFE..ACA31,33,38 |
15193-28010 |
from US $5.01 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017909004
|
9017909004
90179-09004 NUT |
90179-09004 |
from US $1.03 |
||
|
9151180865
|
9151180865
91511-80865 Bolt(For Cylinder Head Set Sub) |
91511-80865 |
US $0.87 |
