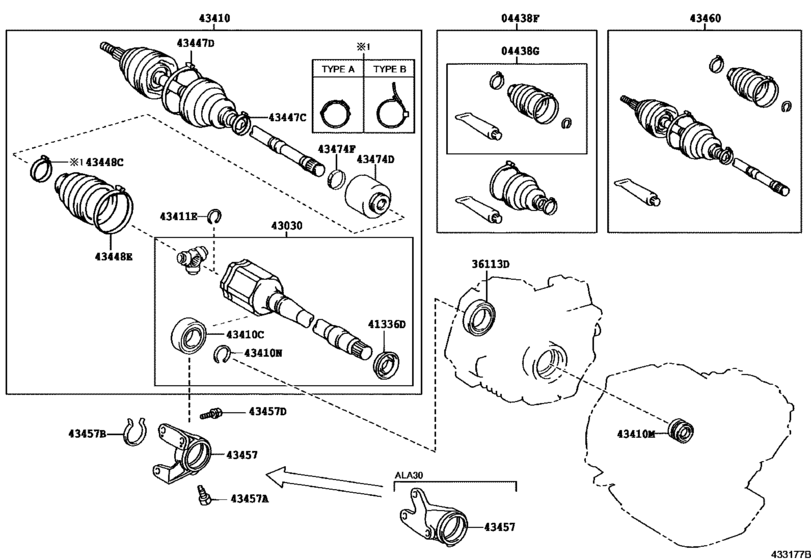

Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- G
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04427-44040
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[11.2005 - 12.2008] ACA30,31..4FC;ACA33..G..GCC |
04427-44040 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04427-44041 Boot Kit, Front Drive Shaft, In & Outboard, Rh[11.2005 - 12.2008] ACA30,31..4FC;ACA33..G..GCC |
04427-44041 |
US $97.84 |
||
|
04438G
|
04438G
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 |
04438-42180 |
from US $65.77 |
||
|
36113D
|
36113D
90311-35056 Seal, Oil (For Transfer Case Rh)[11.2005 - 12.2008] ACA30,31,33,ALA30,GSA33 |
90311-35056 |
from US $3.15 |
||
|
41336D
|
41336D
41336-52020 Cover, Front Drive Shaft Dust, Rh[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 |
41336-52020 |
US $4.48 |
||
|
43030
|
43030
43030-42070 Joint Assy, Front Drive Inboard, Rh[11.2005 - 12.2008] ACA30,31,33,GSA33..ATM |
43030-42070 |
US $384.38 |
||
|
43410
|
43410
43410-42170 Shaft Assy, Front Drive, RhFRONT DRIVE, RH [11.2005 - 12.2008] ACA30,31..4FC;ACA33..G..GCC |
43410-42170 |
US $912.50 |
||
|
43410C
|
43410C
90363-36006 Bearing (For Front Drive Shaft)[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 |
90363-36006 |
from US $22.54 |
||
|
43410M
|
43410M
90316-34001 Oil Seal, Front Drive Shaft, Rh[11.2005 - 12.2008] ACA30,31,33,ALA30,GSA33 |
90316-34001 |
from US $8.06 |
||
|
43410N
|
43410N
90520-33008 Ring, Hole Snap (For Differential Side Gear Shaft)[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 |
90520-33008 |
from US $1.91 |
||
|
43411E
|
43411E
43425-28010 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 |
43425-28010 |
US $0.72 |
||
|
43447C
|
43447C
42345-42100 Clamp (For Front Axle Outboard Joint Boot)Small [11.2005 - 12.2008] ACA30,31..4FC;ACA33..G..GCC |
42345-42100 |
US $3.94 |
||
|
43447D
|
43447D
42345-42090 Clamp, No.2 (For Front Axle Outboard Joint Boot)Big [11.2005 - 12.2008] ACA30,31..4FC;ACA33..G..GCC |
42345-42090 |
from US $5.40 |
||
|
43448C
|
43448C
42345-42010 Clamp (For Axle Inboard Joint Boot)Small [11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 TYPE A:REFER ILLUST. |
42345-42010 |
from US $1.60 |
||
|
43448C
|
43448C
90949-01559 Clamp, No.1 (For Axle Outboard Joint Boot Setting)[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 TYPE B:REFER ILLUST. |
90949-01559 |
US $5.73 |
||
|
43448E
|
43448E
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 |
42345-12160 |
from US $4.43 |
||
|
43457
|
43457
43457-42060
Bracket, Drive Shaft Bearing
[11.2005 - 12.2008] ACA30,31..4FC;ACA33..G..GCC |
43457-42060 |
— | ||
|
43457A
|
43457A
90119-10461 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 *10-1.25PX19.8-8.3 |
90119-10461 |
from US $1.25 |
||
|
43457B
|
43457B
90521-75002 Ring, Hole Snap (For Drive Shaft Bearing Bracket)[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 |
90521-75002 |
from US $2.01 |
||
|
43457D
|
43457D
90105-10381 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 |
90105-10381 |
US $1.79 |
||
|
43460
|
43460
43470-49665 Shaft Assy, Front Drive Outboard Joint, Rh[11.2005 - 12.2008] ACA3#..4FC |
43470-49665 |
US $452.82 |
||
| replacement | |||||
|
43460
|
43460
43470-49666 Shaft Assy, Front Drive Outboard Joint, Rh[11.2005 - 12.2008] ACA3#..4FC |
43470-49666 |
US $410.59 |
||
|
43474D
|
43474D
43474-48030 Damper, Front Drive Shaft, Rh[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 |
43474-48030 |
US $55.74 |
||
|
43474F
|
43474F
42345-14010 Clamp, Rear Drive Shaft Boot[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 |
42345-14010 |
US $12.54 |
||
