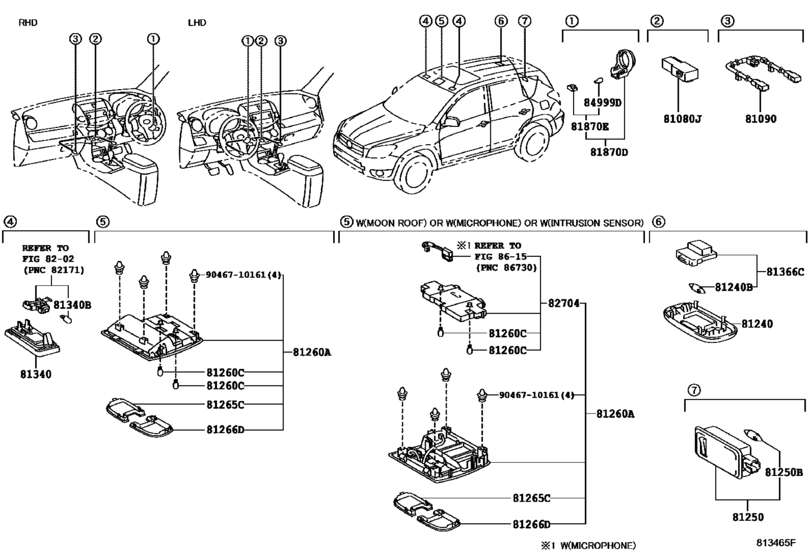

Interior Lamp ([11.2005 - ] (0511- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- G
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81080J
|
81080J
81080-42010 Lamp Assy, Interior Illumination, No.1[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 |
81080-42010 |
US $11.50 |
||
|
81090
|
81090
81090-42010
Lamp Assy, Interior Illumination, No.2
[11.2005 - 12.2008] ACA30,31,33,ALA30..G..(EUR,GCC); ACA30,ALA30..G WITHOUT(CURTAIN & SIDE AIR BAG) |
81090-42010 |
— | ||
|
81240
|
81240
81240-52040-A0 Lamp Assy, Room, No.1[11.2005 - 12.2008] ACA33,38..LHD;ACA30,31,ALA30..G IVORY,TRIM4# |
81240-52040-A0 |
US $47.90 |
||
|
81240
|
81240
81240-52040-B0 Lamp Assy, Room, No.1[11.2005 - 12.2008] ACA3#,ALA30,GSA33 GRAY,TRIM1# |
81240-52040-B0 |
US $33.20 |
||
|
81240
|
81240
81240-52040-E2 Lamp Assy, Room, No.1[08.2008 - 12.2012] ACA33,38..LHD;ACA30,ALA3#,ZSA3#..G SAND BEIGE,TRIM4# |
81240-52040-E2 |
US $33.75 |
||
|
81240B
|
81240B
90981-14011 Bulb, Room Lamp, No.1[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 12V 8W |
90981-14011 |
from US $1.89 |
||
|
81250
|
81250
81250-48010 Lamp Assy, Room, No.2[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 |
81250-48010 |
from US $23.93 |
||
|
81250B
|
81250B
99132-13050 Bulb(For Courtesy Lamp)[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 12V 5W |
99132-13050 |
from US $2.57 |
||
| replacement | |||||
|
81250B
|
81250B
00234-13050 Bulb,Room Lamp[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 12V 5W |
00234-13050 |
US $2.82 |
||
|
81260A
|
81260A
81260-42010-A0 Lamp Assy, Map[11.2005 - 02.2008] ACA33,38;ACA30,31,ALA30..G IVORY,TRIM4# |
81260-42010-A0 |
US $139.78 |
||
| replacement | |||||
|
81260A
|
81260A
81260-42011-B1 Lamp Assy, Map[11.2005 - 02.2008] ACA33,38;ACA30,31,ALA30..G IVORY,TRIM4# |
81260-42011-B1 |
US $113.57 |
||
|
81260A
|
81260A
81260-42010-B1 Lamp Assy, Map[11.2005 - 02.2008] ACA3#,ALA30,GSA33 GRAY,TRIM1# |
81260-42010-B1 |
US $139.78 |
||
| replacement | |||||
|
81260A
|
81260A
81260-42011-B1 Lamp Assy, Map[11.2005 - 02.2008] ACA3#,ALA30,GSA33 GRAY,TRIM1# |
81260-42011-B1 |
US $113.57 |
||
|
81260A
|
81260A
81260-42011-A0 Lamp Assy, MapMAP [03.2008 - 12.2008] ACA33,38..LHD;ACA30,31,ALA30..G IVORY,TRIM4# |
81260-42011-A0 |
US $139.78 |
||
| replacement | |||||
|
81260A
|
81260A
81260-42011-B1 Lamp Assy, Map[03.2008 - 12.2008] ACA33,38..LHD;ACA30,31,ALA30..G IVORY,TRIM4# |
81260-42011-B1 |
US $113.57 |
||
|
81260A
|
81260A
81260-42011-B1 Lamp Assy, Map[03.2008 - 12.2008] ACA3#,ALA30,GSA33 GRAY,TRIM1# |
81260-42011-B1 |
US $113.57 |
||
|
81260A
|
81260A
81260-42011-E1 Lamp Assy, Map[08.2008 - 12.2012] ACA33,38..GCC,GEN SAND BEIGE,TRIM4# |
81260-42011-E1 |
US $96.10 |
||
|
81260A
|
81260A
81260-42020-A0 Lamp Assy, Map[11.2005 - 12.2008] ACA3#,ALA30..G MOON ROOF-WITH,IVORY,TRIM4# |
81260-42020-A0 |
US $177.63 |
||
|
81260A
|
81260A
81260-42020-B1 Lamp Assy, Map[11.2005 - 12.2008] ACA3#,ALA30,GSA33..G MOON ROOF-WITH,GRAY,TRIM1# |
81260-42020-B1 |
US $177.63 |
||
| replacement | |||||
|
81260A
|
81260A
81260-42120-B0 Lamp Assy, Map[11.2005 - 12.2008] ACA3#,ALA30,GSA33..G MOON ROOF-WITH,GRAY,TRIM1# |
81260-42120-B0 |
US $247.52 |
||
|
81260A
|
81260A
81260-42110-B0 Lamp Assy, Map[08.2008 - 12.2012] GSA33..G GRAY,TRIM1#; ACA33,38..G..(GCC,GEN) MOON ROOF-WITH,GRAY,TRIM1#; ACA33,38..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
81260-42110-B0 |
US $122.30 |
||
|
81260A
|
81260A
81260-42110-E0 Lamp Assy, Map[08.2008 - 12.2012] ACA33,38..G..(GCC,GEN) MOON ROOF-WITH,SAND BEIGE,TRIM4# |
81260-42110-E0 |
US $122.30 |
||
|
81260C
|
81260C
90981-11062 Bulb, Room Lamp, No.1[11.2005 - 12.2008] ACA3#,ALA30,GSA33 12V 8W |
90981-11062 |
from US $2.54 |
||
|
81265C
|
81265C
81265-42010 Lens, Map Lamp, No.1[11.2005 - 12.2008] ACA3#,ALA30,GSA33 |
81265-42010 |
from US $4.80 |
||
|
81265C
|
81265C
81265-42020 Lens, Map Lamp, No.1[11.2005 - 12.2008] ACA3#,ALA30,GSA33..G MOON ROOF-WITH; ACA30,ALA30..RHD ANTI-THEFT SYSTEM-WITH(IMMOBILISER, DOUBLE ROCK & ALARM); ACA30,ALA30..RHD..G ANTI-THEFT SYSTEM-WITH(IMMOBILISER, DOUBLE ROCK & ALARM)&MOON ROOF-WITH; ACA30,ALA30..RHD..G ANTI-THEFT |
81265-42020 |
from US $4.40 |
||
|
81266D
|
81266D
81266-42010 Lens, Map Lamp, No.2[11.2005 - 12.2008] ACA3#,ALA30,GSA33 |
81266-42010 |
from US $3.59 |
||
|
81266D
|
81266D
81266-42020 Lens, Map Lamp, No.2[11.2005 - 12.2008] ACA3#,ALA30,GSA33..G MOON ROOF-WITH; ACA30,ALA30..RHD ANTI-THEFT SYSTEM-WITH(IMMOBILISER, DOUBLE ROCK & ALARM); ACA30,ALA30..RHD..G ANTI-THEFT SYSTEM-WITH(IMMOBILISER, DOUBLE ROCK & ALARM)&MOON ROOF-WITH; ACA30,ALA30..RHD..G ANTI-THEFT |
81266-42020 |
from US $4.40 |
||
|
81340
|
81340
81340-30100-A1 Lamp Assy, Vanity[11.2005 - 12.2008] ACA33,38;ACA30,31,ALA30..G IVORY,TRIM4# |
81340-30100-A1 |
US $24.90 |
||
|
81340
|
81340
81340-30100-B1 Lamp Assy, Vanity[11.2005 - 12.2008] ACA3#,ALA30,GSA33 GRAY,TRIM1# |
81340-30100-B1 |
US $22.57 |
||
|
81340
|
81340
81340-30100-E2 Lamp Assy, Vanity[08.2008 - 01.2012] ACA33,38..LHD;ACA30,ALA3#,ZSA3#..G SAND BEIGE,TRIM4# |
81340-30100-E2 |
US $24.90 |
||
|
81340
|
81340
81340-30110 Lamp Assy, Vanity[02.2012 - 12.2012] ACA3#,ALA3#,GSA33,ZSA3# |
81340-30110 |
from US $22.07 |
||
|
81340B
|
81340B
90981-11062 Bulb, Room Lamp, No.1[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30 12V 8W |
90981-11062 |
from US $2.54 |
||
|
81366C
|
81366C
81366-68010 Base, Room Lamp Switch[11.2005 - 12.2008] ACA3#,ALA30,GSA33 |
81366-68010 |
from US $10.87 |
||
|
82704
|
82704
82704-42020-A0 Block, Overhead Junction[11.2005 - 12.2008] ACA3#,ALA30..G MOON ROOF-WITH,IVORY,TRIM4#; ACA30,ALA30..RHD..G ANTI-THEFT SYSTEM-WITH(IMMOBILISER, DOUBLE ROCK & ALARM)&MOON ROOF-WITH,IVORY,TRIM 4# |
82704-42020-A0 |
US $65.52 |
||
|
82704
|
82704
82704-42020-B0 Block, Overhead Junction[11.2005 - 12.2008] ACA3#,ALA30,GSA33..G MOON ROOF-WITH,GRAY,TRIM1#; ACA30,ALA30..RHD..G ANTI-THEFT SYSTEM-WITH(IMMOBILISER, DOUBLE ROCK & ALARM)&MOON ROOF-WITH,GRAY,TRIM1 # |
82704-42020-B0 |
US $65.52 |
||
| replacement | |||||
|
82704
|
82704
82704-42080-B0 Block, Overhead Junction[11.2005 - 12.2008] ACA3#,ALA30,GSA33..G MOON ROOF-WITH,GRAY,TRIM1#; ACA30,ALA30..RHD..G ANTI-THEFT SYSTEM-WITH(IMMOBILISER, DOUBLE ROCK & ALARM)&MOON ROOF-WITH,GRAY,TRIM1 # |
82704-42080-B0 |
US $87.36 |
||
|
82704
|
82704
82704-42070-B0 Block, Overhead Junction[08.2008 - 01.2010] GSA33..G GRAY,TRIM1#; ACA33,38..G..(GCC,GEN) MOON ROOF-WITH,GRAY,TRIM1#; ACA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
82704-42070-B0 |
US $54.60 |
||
| replacement | |||||
|
82704
|
82704
82704-42080-B0 Block, Overhead Junction[08.2008 - 01.2010] GSA33..G GRAY,TRIM1#; ACA33,38..G..(GCC,GEN) MOON ROOF-WITH,GRAY,TRIM1#; ACA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
82704-42080-B0 |
US $87.36 |
||
|
82704
|
82704
82704-42070-E0 Block, Overhead Junction[08.2008 - 01.2010] ACA33,38..G..(GCC,GEN) MOON ROOF-WITH,SAND BEIGE,TRIM4# |
82704-42070-E0 |
US $54.60 |
||
| replacement | |||||
|
82704
|
82704
82704-42080-E0 Block, Overhead Junction[08.2008 - 01.2010] ACA33,38..G..(GCC,GEN) MOON ROOF-WITH,SAND BEIGE,TRIM4# |
82704-42080-E0 |
US $87.36 |
||
|
82704
|
82704
82704-42100-B0 Block, Overhead JunctionOVERHEAD JUNCTION [01.2010 - 12.2012] GSA33..G GRAY,TRIM1#; ACA33,38..G..(GCC,GEN) MOON ROOF-WITH,GRAY,TRIM1#; ACA33,38..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#; ALA30..RHD..G;ACA30,ALA35,ZSA3#..G;ALA30..LHD..G..(DCR,DCRE) MOON ROOF-WITH&AUDIO-RADIO LESS,GRA |
82704-42100-B0 |
US $45.43 |
||
|
82704
|
82704
82704-42100-E0 Block, Overhead JunctionOVERHEAD JUNCTION [01.2010 - 12.2012] ACA33,38..G..(GCC,GEN) MOON ROOF-WITH,SAND BEIGE,TRIM4#; ALA30..RHD..G;ACA30,ALA35,ZSA3#..G;ALA30..LHD..G..(DCR,DCRE) MOON ROOF-WITH&AUDIO-RADIO LESS,SAND BEIGE,TRIM4# |
82704-42100-E0 |
US $45.43 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.90 |
||
