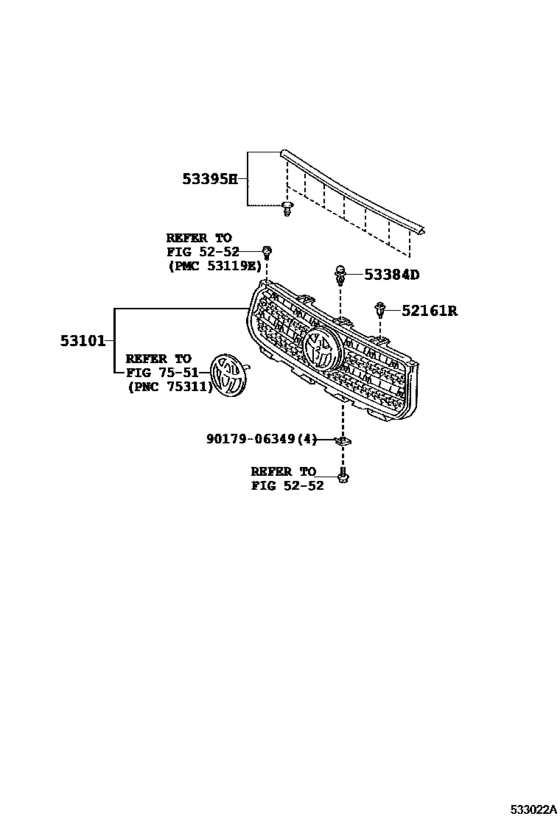

Radiator Grille ([08.2008 - 12.2008] CHINA SPEC (0808-0812)G..GCC) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- G
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52161R
|
52161R
52161-16010 Clip[11.2005 - 12.2008] ACA3#,ALA30,GSA33 |
52161-16010 |
from US $1.72 |
||
| replacements | |||||
|
52161R
|
52161R
52161-0K040 Clip[11.2005 - 12.2008] ACA3#,ALA30,GSA33 |
52161-0K040 |
from US $1.50 |
||
|
52161R
|
52161R
52161-02020 Clip[11.2005 - 12.2008] ACA3#,ALA30,GSA33 |
52161-02020 |
US $5.27 |
||
|
53101
|
53101
53101-42150
Grille Sub-Assy, Radiator
[11.2005 - 12.2008] ACA30,33,38,ALA30..DCR,DCRE,HTWC |
53101-42150 |
— | ||
| replacements | |||||
|
53101
|
53101
53111-42100 Grille, Radiator[11.2005 - 12.2008] ACA30,33,38,ALA30..DCR,DCRE,HTWC |
53111-42100 |
US $206.75 |
||
|
53101
|
53101
75311-42010 Emblem, Radiator Grille (Or Front Panel)[11.2005 - 12.2008] ACA30,33,38,ALA30..DCR,DCRE,HTWC |
75311-42010 |
from US $24.92 |
||
|
53101
|
53101
53101-42220 Grille Sub-Assy, RadiatorRADIATOR [08.2008 - 12.2012] ACA33,38..ARL,GCC,GEN |
53101-42220 |
US $208.21 |
||
| replacements | |||||
|
53101
|
53101
53111-42130 Grille, Radiator[08.2008 - 12.2012] ACA33,38..ARL,GCC,GEN |
53111-42130 |
from US $180.28 |
||
|
53101
|
53101
90975-02100 Emblem, Radiator Grille (Or Front Panel)RADIATOR GRILLE (OR FRONT PANEL) [08.2008 - 12.2012] ACA33,38..ARL,GCC,GEN |
90975-02100 |
from US $31.22 |
||
|
53101
|
53101
53101-42250 Grille Sub-Assy, RadiatorRADIATOR [03.2011 - 12.2012] ACA33,38..G..GCC |
53101-42250 |
US $336.34 |
||
|
53384D
|
53384D
53384-68010 Cushion, Radiator Grille[11.2005 - 12.2008] ACA3#,ALA30,GSA33 |
53384-68010 |
from US $6.81 |
||
|
53395H
|
53395H
53395-42030
Seal, Hood To Radiator Grille
[11.2005 - 02.2007] ACA3#,ALA30 |
53395-42030 |
— | ||
| replacement | |||||
|
53395H
|
53395H
53395-42032 Seal, Hood To Radiator Grille[11.2005 - 02.2007] ACA3#,ALA30 |
53395-42032 |
from US $20.82 |
||
|
53395H
|
53395H
53395-42031 Seal, Hood To Radiator Grille[03.2007 - 04.2008] ACA3#,ALA30,GSA33 |
53395-42031 |
US $106.58 |
||
|
53395H
|
53395H
53395-42032 Seal, Hood To Radiator Grille[05.2008 - 12.2008] ACA3#,ALA30,GSA33 |
53395-42032 |
from US $20.82 |
||
|
53395H
|
53395H
53395-42050 Seal, Hood To Radiator Grille[08.2008 - 12.2008] ACA33,38,GSA33 |
53395-42050 |
US $29.41 |
||
| replacement | |||||
|
53395H
|
53395H
53395-42051 Seal, Hood To Radiator GrilleHOOD TO RADIATOR GRILLE [08.2008 - 12.2008] ACA33,38,GSA33 |
53395-42051 |
from US $35.67 |
||
|
53395H
|
53395H
53395-42051 Seal, Hood To Radiator GrilleHOOD TO RADIATOR GRILLE [01.2009 - 12.2012] ACA3#,ALA3#,GSA33,ZSA3#..ATYPE |
53395-42051 |
from US $35.67 |
||
|
9017906349
|
9017906349
90179-06349 NUT |
90179-06349 |
from US $1.31 |
||
