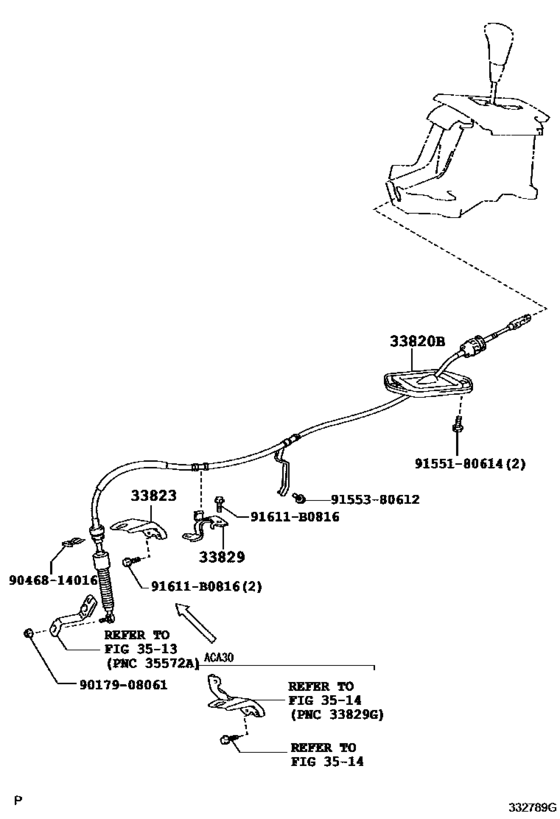

Shift Lever & Retainer ([11.2005 - ] (0511- )4FC) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- G
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33820B
|
33820B
33820-42250 Cable Assy, Transmission ControlTRANSMISSION CONTROL [11.2005 - 12.2008] ACA30,31..4FC;ACA33..G..GCC |
33820-42250 |
US $211.63 |
||
|
33823
|
33823
33823-42020 Bracket, Transmission Control Cable, No.1[11.2005 - 12.2008] ACA31,33..G..(EUR,GCC) |
33823-42020 |
US $9.03 |
||
|
33829
|
33829
33829-42020 Support, Transmission Control CableTRANSMISSION CONTROL CABLE [11.2005 - 12.2008] ACA30,31..4FC;ACA33..G..GCC |
33829-42020 |
US $5.53 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.76 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.66 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.62 |
