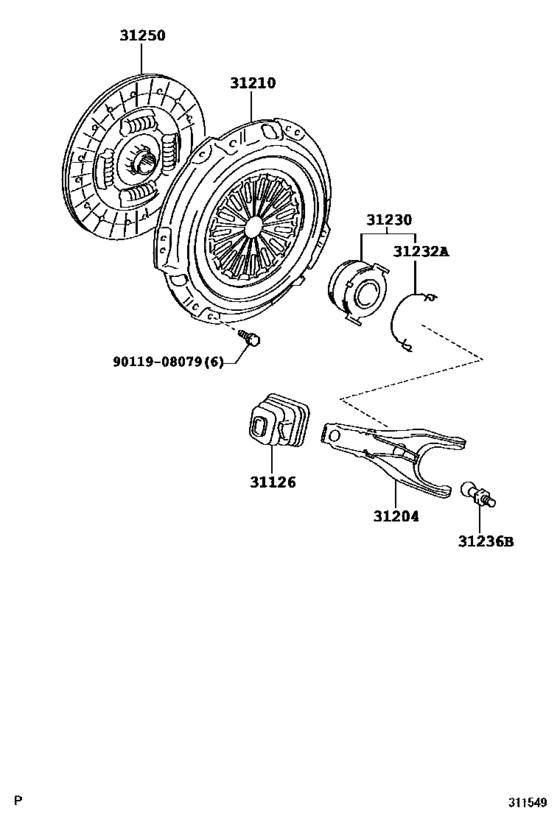

Clutch & Release Fork ([11.2005 - ] (0511- )5F) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- X
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 5F
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-32010 Boot, Clutch Release Fork[11.2005 - 08.2008] ACA33,38..5F |
31126-32010 |
from US $11.74 |
||
|
31204
|
31204
31204-20100 Fork Sub-Assy, Clutch Release[11.2005 - 08.2008] ACA33,38..5F |
31204-20100 |
from US $30.42 |
||
|
31210
|
31210
31210-33040 Cover Assy, ClutchCLUTCH [11.2005 - 01.2007] ACA33,38..5F |
31210-33040 |
US $214.03 |
||
| replacement | |||||
|
31210
|
31210
31210-33042 Cover Assy, ClutchCLUTCH [11.2005 - 01.2007] ACA33,38..5F |
31210-33042 |
from US $181.29 |
||
|
31210
|
31210
31210-33041 Cover Assy, ClutchCLUTCH [02.2007 - 03.2007] ACA33,38..5F |
31210-33041 |
US $214.03 |
||
| replacement | |||||
|
31210
|
31210
31210-33042 Cover Assy, ClutchCLUTCH [02.2007 - 03.2007] ACA33,38..5F |
31210-33042 |
from US $181.29 |
||
|
31210
|
31210
31210-33042 Cover Assy, ClutchCLUTCH [03.2007 - 08.2008] ACA33,38..5F |
31210-33042 |
from US $181.29 |
||
|
31230
|
31230
31230-20170 Bearing Assy, Clutch Release[11.2005 - 08.2006] ACA3#..5F |
31230-20170 |
from US $44.69 |
||
|
31230
|
31230
31230-33020 Bearing Assy, Clutch Release[08.2006 - 08.2008] ACA33,38..5F |
31230-33020 |
from US $46.37 |
||
|
31232A
|
31232A
31232-20020 Clip, Release Bearing Hub[11.2005 - 08.2008] ACA33,38..5F |
31232-20020 |
from US $1.50 |
||
|
31236B
|
31236B
31236-20060 Ball, Release Fork[11.2005 - 08.2008] ACA33,38..5F |
31236-20060 |
from US $8.87 |
||
|
31250
|
31250
31250-33040
Disc Assy, Clutch
[11.2005 - 08.2008] ACA33,38..5F |
31250-33040 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-33041 Disc Assy, Clutch[11.2005 - 08.2008] ACA33,38..5F |
31250-33041 |
US $214.03 |
||
|
31250
|
31250
31250-33041 Disc Assy, Clutch[12.2011 - 12.2012] ACA3#..5F |
31250-33041 |
US $214.03 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
