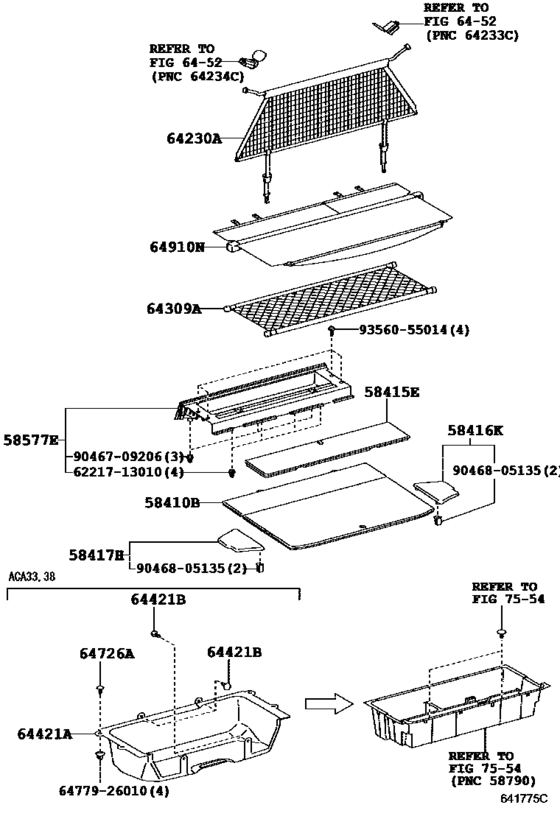

Deck Board & Deck Trim Cover ([11.2005 - ] (0511- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- X
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 5F
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58410B
|
58410B
58410-42020-B2 Board Assy, DeckDECK [11.2005 - 06.2008] ACA33,GSA33..ARL DK.GRAY,TRIM1# |
58410-42020-B2 |
US $313.04 |
||
| replacement | |||||
|
58410B
|
58410B
58410-42020-B6 Board Assy, Deck[11.2005 - 06.2008] ACA33,GSA33..ARL DK.GRAY,TRIM1# |
58410-42020-B6 |
US $304.01 |
||
|
58410B
|
58410B
58410-42020-B4 Board Assy, Deck[08.2010 - 12.2012] ACA33,38..GEN DK.GRAY,TRIM13; ACA33,38,GSA33..ARL,EUR DK.GRAY,TRIM1# |
58410-42020-B4 |
US $216.94 |
||
|
58410B
|
58410B
58410-42020-B6 Board Assy, Deck[06.2008 - 08.2008] ACA33,GSA33..ARL DK.GRAY,TRIM1# |
58410-42020-B6 |
US $304.01 |
||
|
58415E
|
58415E
58415-42010-B2 Board, Rear Floor, No.1REAR FLOOR, NO.1 [11.2005 - 06.2008] ACA33..ARL GRAY,TRIM10; ACA33,38..LHD GRAY,TRIM1# |
58415-42010-B2 |
US $198.02 |
||
| replacement | |||||
|
58415E
|
58415E
58415-42010-B5 Board, Rear Floor, No.1REAR FLOOR, NO.1 [11.2005 - 06.2008] ACA33..ARL GRAY,TRIM10; ACA33,38..LHD GRAY,TRIM1# |
58415-42010-B5 |
US $164.53 |
||
|
58415E
|
58415E
58415-42010-B3 Board, Rear Floor, No.1REAR FLOOR, NO.1 [11.2005 - 06.2008] ACA33..ARL DK.GRAY,TRIM13 |
58415-42010-B3 |
US $198.02 |
||
| replacement | |||||
|
58415E
|
58415E
58415-42010-B6 Board, Rear Floor, No.1[11.2005 - 06.2008] ACA33..ARL DK.GRAY,TRIM13 |
58415-42010-B6 |
US $192.19 |
||
|
58415E
|
58415E
58415-42010-B4 Board, Rear Floor, No.1[08.2010 - 12.2012] ACA33,38..GEN DK.GRAY,TRIM13; ACA33,38,GSA33..ARL,EUR DK.GRAY,TRIM1# |
58415-42010-B4 |
US $136.86 |
||
|
58415E
|
58415E
58415-42010-B6 Board, Rear Floor, No.1[06.2008 - 08.2008] ACA33,GSA33..ARL DK.GRAY,TRIM1# |
58415-42010-B6 |
US $192.19 |
||
|
58415E
|
58415E
58415-42010-E1 Board, Rear Floor, No.1[11.2005 - 08.2008] ACA33,38 FAWN,TRIM4# |
58415-42010-E1 |
US $198.02 |
||
|
58416K
|
58416K
58416-42020-B0 Board, Rear Floor, No.2[11.2005 - 08.2008] ACA33,GSA33..ARL DK.GRAY,TRIM1# |
58416-42020-B0 |
US $43.10 |
||
|
58417H
|
58417H
58417-42020-B0 Board, Rear Floor, No.3[11.2005 - 08.2008] ACA33,GSA33..ARL DK.GRAY,TRIM1# |
58417-42020-B0 |
from US $43.10 |
||
|
58577E
|
58577E
58577-42010-B0 Plate, Rear Floor Mat Support Side, No.1[11.2005 - 08.2008] ACA33..ARL DK.GRAY,TRIM13 |
58577-42010-B0 |
US $216.94 |
||
|
58577E
|
58577E
58577-42010-B1 Plate, Rear Floor Mat Support Side, No.1REAR FLOOR MAT SUPPORT SIDE, NO.1 [11.2005 - 08.2008] ACA33..ARL GRAY,TRIM10 |
58577-42010-B1 |
US $260.62 |
||
|
58577E
|
58577E
58577-42010-E0 Plate, Rear Floor Mat Support Side, No.1[11.2005 - 08.2008] ACA33,38 FAWN,TRIM4# |
58577-42010-E0 |
US $313.04 |
||
|
64230A
|
64230A
64230-42020 Net Assy, Room Partition[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN ROOM SEPARATOR-WITH |
64230-42020 |
US $203.84 |
||
|
64309A
|
64309A
64309-42010-B0 Pocket Sub-Assy, Package Tray Trim[11.2005 - 12.2008] ACA33..ARL;ACA31,33,38..LHD..G DARK GRAY,TRIM1#,4#; ACA30,ALA30..X WITH(TONEAU COVER),DARK GRAY,TRIM1#; ACA30,ALA30..G;ACA33,38..LHD..X WITH(TONEAU COVER),DARK GRAY,TRIM1#,4# |
64309-42010-B0 |
US $285.38 |
||
| replacement | |||||
|
64309A
|
64309A
64309-42031-B0 Pocket Sub-Assy, Package Tray Trim[11.2005 - 12.2008] ACA33..ARL;ACA31,33,38..LHD..G DARK GRAY,TRIM1#,4#; ACA30,ALA30..X WITH(TONEAU COVER),DARK GRAY,TRIM1#; ACA30,ALA30..G;ACA33,38..LHD..X WITH(TONEAU COVER),DARK GRAY,TRIM1#,4# |
64309-42031-B0 |
from US $215.49 |
||
|
64309A
|
64309A
64309-42011-B1 Pocket Sub-Assy, Package Tray Trim[08.2012 - 12.2012] ACA33,38..LHD..G DARK GRAY,TRIM1#,4#; ACA33,38,GSA33..ARL DARK GRAY,TRIM1#; ZSA3#..LHD..X;ACA30,ALA35..X;ALA30..X..ATYPE PACKAGE TRAY TRIM & TONEAU COVER-WITH(DECK BOARD & TONEAU COVER),DARK GRAY,TRIM1#; ACA30,ALA35..G;ACA33,38..LHD..X |
64309-42011-B1 |
US $237.33 |
||
| replacement | |||||
|
64309A
|
64309A
64309-42031-B0 Pocket Sub-Assy, Package Tray Trim[08.2012 - 12.2012] ACA33,38..LHD..G DARK GRAY,TRIM1#,4#; ACA33,38,GSA33..ARL DARK GRAY,TRIM1#; ZSA3#..LHD..X;ACA30,ALA35..X;ALA30..X..ATYPE PACKAGE TRAY TRIM & TONEAU COVER-WITH(DECK BOARD & TONEAU COVER),DARK GRAY,TRIM1#; ACA30,ALA35..G;ACA33,38..LHD..X |
64309-42031-B0 |
from US $215.49 |
||
|
64421A
|
64421A
58571-42090 Tray, Luggage Compartment[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
58571-42090 |
US $173.26 |
||
|
64421B
|
64421B
90467-05164-B2 Clip(For Front Floor Carpet)[11.2005 - 02.2006] ACA33..ARL DK.GRAY,TRIM13 |
90467-05164-B2 |
from US $0.78 |
||
|
64421B
|
64421B
90467-05164-B6 Clip, Roof Headlining[11.2005 - 02.2006] ACA33..ARL GRAY,TRIM10; ACA33,38..LHD GRAY,TRIM1# |
90467-05164-B6 |
from US $0.68 |
||
|
64421B
|
64421B
90467-05164-C0 Clip(For Deck Boad)[02.2006 - 12.2008] ACA33,38,GSA33 BLACK |
90467-05164-C0 |
from US $0.68 |
||
|
64421B
|
64421B
90467-05164-E1 Clip, Roof Headlining[11.2005 - 02.2006] ACA33,38 FAWN,TRIM4# |
90467-05164-E1 |
US $0.87 |
||
|
64726A
|
64726A
64726-26010-B1 Clip(For Front Floor Mat)[11.2005 - 02.2006] ACA33..ARL DK.GRAY,TRIM13 |
64726-26010-B1 |
from US $1.27 |
||
|
64726A
|
64726A
64726-26010-B2 Clip(For Front Floor Rear Carpet)[11.2005 - 02.2006] ACA33..ARL GRAY,TRIM10; ACA33,38..LHD GRAY,TRIM1# |
64726-26010-B2 |
US $1.46 |
||
|
64726A
|
64726A
64726-26010-E0 Clip(For Front Floor Rear Carpet)[11.2005 - 02.2006] ACA33,38 FAWN,TRIM4# |
64726-26010-E0 |
US $2.18 |
||
|
64910N
|
64910N
64910-42020-B0 Cover Assy, Tonneau[11.2005 - 12.2008] ACA33..ARL;ACA31,33,38..LHD..G DK.GRAY,TRIM1#,4#; ACA30,ALA30..X WITH(TONEAU COVER),DK.GRAY,TRIM1#; ACA30,ALA30..G;ACA33,38..LHD..X WITH(TONEAU COVER),DK.GRAY,TRIM1#,4# |
64910-42020-B0 |
US $355.26 |
||
| replacement | |||||
|
64910N
|
64910N
64910-42080-B0 Cover Assy, Tonneau[11.2005 - 12.2008] ACA33..ARL;ACA31,33,38..LHD..G DK.GRAY,TRIM1#,4#; ACA30,ALA30..X WITH(TONEAU COVER),DK.GRAY,TRIM1#; ACA30,ALA30..G;ACA33,38..LHD..X WITH(TONEAU COVER),DK.GRAY,TRIM1#,4# |
64910-42080-B0 |
US $355.26 |
||
|
6221713010
|
6221713010
62217-13010 Clip(For Rear Floor Mat Plate) |
62217-13010 |
from US $0.96 |
||
|
6477926010
|
6477926010
64779-26010 Stopper, Rear Floor Mat |
64779-26010 |
from US $1.48 |
||
|
9046709206
|
9046709206
90467-09206 Clip, Front Air Shutter Seal |
90467-09206 |
from US $0.47 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.92 |
||
|
9356055014
|
9356055014
93560-55014 SCREW |
93560-55014 |
from US $0.64 |
||
