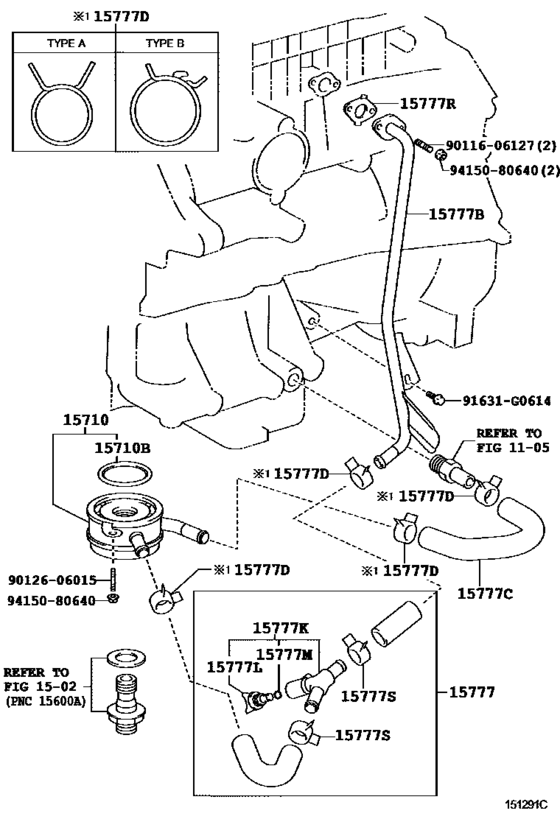

Engine Oil Cooler ([11.2005 - ] (0511- )1AZFE..5F ; (0511- )2AZFE..ACA33,3 8..ARL) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- X
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 5F
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15710
|
15710
15710-28020 Cooler Assy, Oil[11.2005 - 08.2008] 2AZFE..ACA33..ARL |
15710-28020 |
from US $401.86 |
||
|
15710B
|
15710B
90301-52006 Ring, O(For Oil Cooler)[11.2005 - 08.2008] 2AZFE..ACA33..ARL |
90301-52006 |
from US $3.28 |
||
|
15777
|
15777
16267-28020 Hose, Oil Cooler[11.2005 - 08.2008] 2AZFE..ACA33..ARL |
16267-28020 |
US $14.27 |
||
| replacement | |||||
|
15777
|
15777
16267-28080 Hose, Oil CoolerOIL COOLER [11.2005 - 08.2008] 2AZFE..ACA33..ARL |
16267-28080 |
from US $7.90 |
||
|
15777B
|
15777B
16279-28010 Pipe, Oil Cooler[11.2005 - 08.2008] 2AZFE..ACA33..ARL |
16279-28010 |
US $33.49 |
||
|
15777C
|
15777C
16281-28010 Hose, Oil Cooler[11.2005 - 08.2008] 2AZFE..ACA33..ARL |
16281-28010 |
from US $5.11 |
||
|
15777D
|
15777D
96134-41900 Clip Or Clamp(For Ventilation Hose)[11.2005 - 08.2008] 2AZFE..ACA33..ARL |
96134-41900 |
from US $1.61 |
||
|
15777D
|
15777D
96136-42201 Clip(For Ventilation Hose No.2)[07.2012 - 12.2012] 2AZFE..ACA33,38..ARL TYPE B:REFER ILLUST.; 1AZFE..ACA30..5F WITH(TOWING PACKAGE),TYPE B:REFER ILLUST. |
96136-42201 |
from US $1.09 |
||
|
15777K
|
15777K
90910-09119 Cock Assy, Drain(For Oil Cooler Hose)[11.2005 - 08.2008] 2AZFE..ACA33..ARL |
90910-09119 |
US $24.14 |
||
|
15777L
|
15777L
23322-54010 Plug,air(For Oil Cooler Drain Cock)[11.2005 - 08.2008] 2AZFE..ACA33..ARL |
23322-54010 |
from US $4.86 |
||
|
15777M
|
15777M
16492-21050 Ring, O(For Oil Cooler Drain Cock)[11.2005 - 08.2008] 2AZFE..ACA33..ARL |
16492-21050 |
from US $2.16 |
||
|
15777R
|
15777R
16258-28040 Gasket(For Oil Cooler Pipe Union Bolt)[11.2005 - 08.2008] 2AZFE..ACA33..ARL |
16258-28040 |
from US $2.59 |
||
|
15777S
|
15777S
96134-41900 Clip Or Clamp(For Ventilation Hose)[11.2005 - 08.2008] 2AZFE..ACA33..ARL |
96134-41900 |
from US $1.61 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.66 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.94 |
||
|
9012606015
|
9012606015
90126-06015 Bolt, Stud(For Oil Pan) |
90126-06015 |
from US $1.23 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $0.74 |
||
