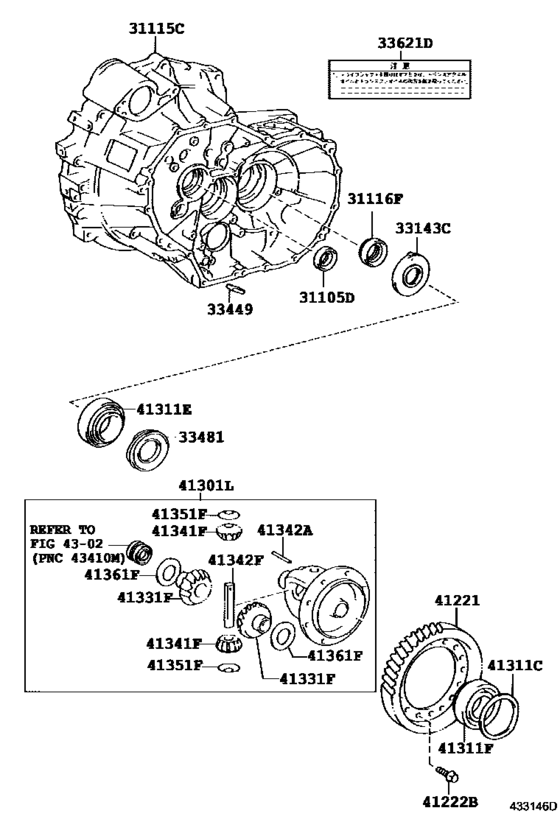

Front Axle Housing & Differential ([11.2005 - ] E352F,E359F (0511- )ACA30,33..5F) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- X
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 5F
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105D
|
31105D
90311-30017 Seal, Oil, No.1(For Front Transaxle Case)OIL, NO.1(FOR FRONT TRANSAXLE CASE) [11.2005 - 12.2008] ACA30,33,38,ALA30..MTM |
90311-30017 |
from US $5.20 |
||
|
31115C
|
31115C
31115-42040 Case, Front Transaxle(Mtm)FRONT TRANSAXLE(MTM) [11.2005 - 05.2008] ACA30,33..5F |
31115-42040 |
US $484.34 |
||
|
31115C
|
31115C
31115-42041 Case, Front Transaxle(Mtm)FRONT TRANSAXLE(MTM) [05.2008 - 08.2008] ACA33..5F |
31115-42041 |
US $484.34 |
||
|
31116F
|
31116F
90311-55004 Seal, Type T Oil, No.1(For Cvt)OIL, NO.2(FOR TRANSAXLE CASE) [11.2005 - 12.2008] ACA30,33..5F |
90311-55004 |
from US $10.93 |
||
|
33143C
|
33143C
33143-28010 Baffle, Front Differential Oil[11.2005 - 08.2008] ACA33,38..5F |
33143-28010 |
US $2.97 |
||
|
33449
|
33449
33449-20010 Magnet, Transmission[11.2005 - 08.2008] ACA33,38..5F |
33449-20010 |
US $5.97 |
||
|
33481
|
33481
33481-42070
Gear, Speedometer Drive (Mtm)
[11.2005 - 08.2008] ACA33,38..5F N=33 |
33481-42070 |
— | ||
|
33621D
|
33621D
33621-12150 Label, Transaxle Oil Information[11.2005 - 01.2008] ACA30,33..5F |
33621-12150 |
US $1.60 |
||
|
33621D
|
33621D
33621-42020
Label, Transaxle Oil Information
[01.2008 - 12.2008] ACA30,33..5F |
33621-42020 |
— | ||
|
41221
|
41221
41221-42090
Gear, Front Differential Ring
[11.2005 - 08.2008] ACA33..5F |
41221-42090 |
— | ||
|
41222B
|
41222B
90105-12319 Bolt (For Front Differential Ring Gear Set)[11.2005 - 08.2008] ACA33,38..5F |
90105-12319 |
US $1.97 |
||
|
41301L
|
41301L
41301-42100
Case Sub-Assy, Front Differential, No.1
[11.2005 - 08.2008] ACA33..5F |
41301-42100 |
— | ||
|
41311C
|
41311C
90564-56055 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.00,MARK 0 |
90564-56055 |
US $3.35 |
||
|
41311C
|
41311C
90564-56056 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.05,MARK 1 |
90564-56056 |
US $3.35 |
||
|
41311C
|
41311C
90564-56057 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.10,MARK 2 |
90564-56057 |
US $3.35 |
||
|
41311C
|
41311C
90564-56058 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.15,MARK 3 |
90564-56058 |
US $3.35 |
||
|
41311C
|
41311C
90564-56059 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.20,MARK 4 |
90564-56059 |
US $4.37 |
||
|
41311C
|
41311C
90564-56060 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.25,MARK 5 |
90564-56060 |
US $4.37 |
||
|
41311C
|
41311C
90564-56061 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.30,MARK 6 |
90564-56061 |
US $4.37 |
||
|
41311C
|
41311C
90564-56062 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.35,MARK 7 |
90564-56062 |
US $4.37 |
||
|
41311C
|
41311C
90564-56063 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.40,MARK 8 |
90564-56063 |
US $4.37 |
||
|
41311C
|
41311C
90564-56064 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.45,MARK 9 |
90564-56064 |
US $4.37 |
||
|
41311C
|
41311C
90564-56065 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.50,MARK A |
90564-56065 |
US $4.37 |
||
|
41311C
|
41311C
90564-56066 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.55,MARK B |
90564-56066 |
US $4.37 |
||
|
41311C
|
41311C
90564-56067 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.60,MARK C |
90564-56067 |
US $4.37 |
||
|
41311C
|
41311C
90564-56068 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.65,MARK D |
90564-56068 |
US $4.37 |
||
|
41311C
|
41311C
90564-56069 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.70,MARK E |
90564-56069 |
US $4.37 |
||
|
41311C
|
41311C
90564-56070 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.75,MARK F |
90564-56070 |
US $4.37 |
||
|
41311C
|
41311C
90564-56071 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.80,MARK G |
90564-56071 |
US $4.37 |
||
|
41311C
|
41311C
90564-56072 Shim (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F T=2.85,MARK H |
90564-56072 |
US $4.37 |
||
|
41311C
|
41311C
90564-56091
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.00,MARK 0 |
90564-56091 |
— | ||
|
41311C
|
41311C
90564-56092
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.05,MARK 1 |
90564-56092 |
— | ||
|
41311C
|
41311C
90564-56093
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.10,MARK 2 |
90564-56093 |
— | ||
|
41311C
|
41311C
90564-56094
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.15,MARK 3 |
90564-56094 |
— | ||
|
41311C
|
41311C
90564-56095
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.20,MARK 4 |
90564-56095 |
— | ||
|
41311C
|
41311C
90564-56096
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.25,MARK 5 |
90564-56096 |
— | ||
|
41311C
|
41311C
90564-56097
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.30,MARK 6 |
90564-56097 |
— | ||
|
41311C
|
41311C
90564-56098
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.35,MARK 7 |
90564-56098 |
— | ||
|
41311C
|
41311C
90564-56099
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.40,MARK 8 |
90564-56099 |
— | ||
|
41311C
|
41311C
90564-56100
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.45,MARK 9 |
90564-56100 |
— | ||
|
41311C
|
41311C
90564-56101
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.50,MARK A |
90564-56101 |
— | ||
|
41311C
|
41311C
90564-56102
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.55,MARK B |
90564-56102 |
— | ||
|
41311C
|
41311C
90564-56103
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.60,MARK C |
90564-56103 |
— | ||
|
41311C
|
41311C
90564-56104
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.65,MARK D |
90564-56104 |
— | ||
|
41311C
|
41311C
90564-56105
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.70,MARK E |
90564-56105 |
— | ||
|
41311C
|
41311C
90564-56106
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.75,MARK F |
90564-56106 |
— | ||
|
41311C
|
41311C
90564-56107
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.80,MARK G |
90564-56107 |
— | ||
|
41311C
|
41311C
90564-56108
Shim (For Front Differential Case Rear)
[10.2010 - 12.2012] ACA3#..5F T=2.85,MARK H |
90564-56108 |
— | ||
|
41311E
|
41311E
90366-57001 Bearing(For Rear Differential Case)[11.2005 - 08.2008] ACA33,38..5F |
90366-57001 |
from US $48.89 |
||
|
41311F
|
41311F
90366-50072 Bearing, Tapered Roller (For Front Differential Case Rear)[11.2005 - 08.2008] ACA33,38..5F |
90366-50072 |
US $47.88 |
||
|
41331F
|
41331F
41331-12140
Gear, Front Differential Side
[04.2008 - 08.2008] ACA33,38..5F |
41331-12140 |
— | ||
|
41331F
|
41331F
41331-28020 Gear, Front Differential Side[11.2005 - 04.2008] ACA30,33,38..5F |
41331-28020 |
US $55.04 |
||
| replacement | |||||
|
41331F
|
41331F
41331-28040 Gear, Front Differential Side[11.2005 - 04.2008] ACA30,33,38..5F |
41331-28040 |
US $50.52 |
||
|
41341F
|
41341F
41341-12090
Pinion, Front Differential
[04.2008 - 08.2008] ACA33,38..5F |
41341-12090 |
— | ||
|
41341F
|
41341F
41341-28010 Pinion, Front Differential[11.2005 - 04.2008] ACA30,33,38..5F |
41341-28010 |
US $31.30 |
||
| replacement | |||||
|
41341F
|
41341F
41341-28030 Pinion, Front Differential[11.2005 - 04.2008] ACA30,33,38..5F |
41341-28030 |
US $28.68 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
90250-06058 |
from US $1.87 |
||
|
41342F
|
41342F
41342-28010 Shaft, Front Differential Pinion, No.1[11.2005 - 08.2008] ACA33,38..5F |
41342-28010 |
US $19.51 |
||
|
41351F
|
41351F
41351-28010 Washer, Front Differential Pinion Thrust[01.2010 - 09.2011] ACA30,33..5F;ACA38..5F..GEN |
41351-28010 |
US $2.18 |
||
|
41351F
|
41351F
41351-30060 Washer, Rear Differential Pinion Thrust[11.2005 - 08.2008] ACA33,38..5F |
41351-30060 |
from US $2.07 |
||
|
41361F
|
41361F
41361-28230 Washer, Front Differential Side Gear Thrust, No.1[11.2005 - 08.2008] ACA38;ACA33..5F T=1.0,MARK 1 |
41361-28230 |
US $2.62 |
||
|
41361F
|
41361F
41361-28240 Washer, Front Differential Side Gear Thrust, No.1[11.2005 - 08.2008] ACA38;ACA33..5F T=1.1,MARK 2 |
41361-28240 |
US $2.62 |
||
|
41361F
|
41361F
41361-28250 Washer, Front Differential Side Gear Thrust, No.1[11.2005 - 08.2008] ACA38;ACA33..5F T=1.2,MARK 3 |
41361-28250 |
US $2.62 |
||
|
41361F
|
41361F
41361-28260 Washer, Front Differential Side Gear Thrust, No.1[11.2005 - 08.2008] ACA38;ACA33..5F T=1.3,MARK 4 |
41361-28260 |
US $2.62 |
||
