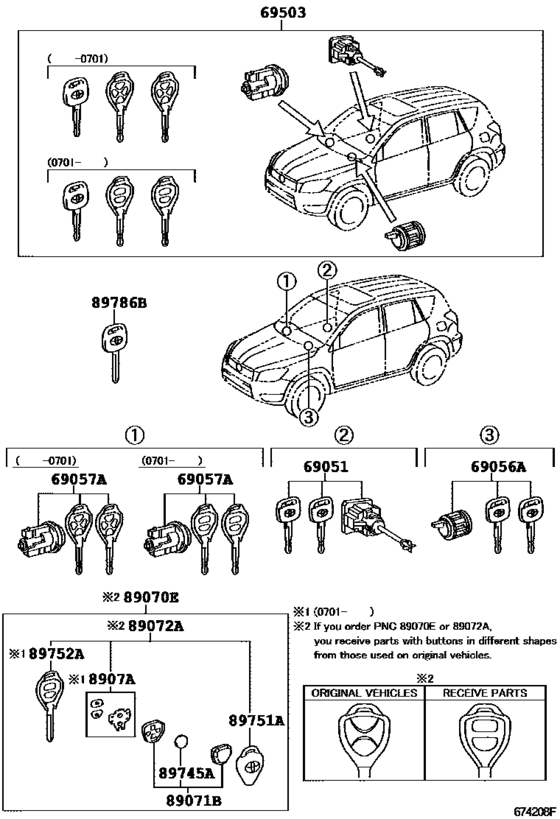

Lock Cylinder Set ([11.2005 - ] W/O(SMART ENTRY) (0511- )RHD) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- X
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 5F
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8907A
|
8907A
8907A-28010 Switch Set, Transmitter[01.2007 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
8907A-28010 |
from US $9.77 |
||
|
69051
|
69051
69051-52400
Cylinder & Key Set, Door Lock, Rh
[11.2005 - 08.2008] ACA33,GSA33..ARL |
69051-52400 |
— | ||
|
69056A
|
69056A
69056-42100
Cylinder & Key Set, Glove Compartment Lock
[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
69056-42100 |
— | ||
|
69057A
|
69057A
69057-12800
Cylinder & Key Set, Ignition Switch Lock
[02.2010 - 12.2012] ACA33,38..G..GEN;ACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR,GCC; ACA33,38..X..GEN ANTI-THEFT SYSTEM-WITH(IMMOBILIZER) |
69057-12800 |
— | ||
|
69057A
|
69057A
69057-28370 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [02.2007 - 08.2008] ACA33..X..GCC;ACA33,GSA33..ARL;ACA33,38..G..GEN |
69057-28370 |
US $87.46 |
||
|
69057A
|
69057A
69057-42210
Cylinder & Key Set, Ignition Switch Lock
[11.2005 - 01.2007] ACA33,38..G..GEN;ACA30,33,ALA30..ARL,EUR,GCC |
69057-42210 |
— | ||
| replacement | |||||
|
69057A
|
69057A
69057-28370 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [11.2005 - 01.2007] ACA33,38..G..GEN;ACA30,33,ALA30..ARL,EUR,GCC |
69057-28370 |
US $87.46 |
||
|
69503
|
69503
69005-42510
Cylinder Set, Lock
[11.2005 - 01.2007] ACA30,33,ALA30..RHD |
69005-42510 |
— | ||
| replacements | |||||
|
69503
|
69503
69005-42511
Cylinder Set, Lock
[11.2005 - 01.2007] ACA30,33,ALA30..RHD |
69005-42511 |
— | ||
|
69503
|
69503
8907A-28010 Switch Set, Transmitter[11.2005 - 01.2007] ACA30,33,ALA30..RHD |
8907A-28010 |
from US $9.77 |
||
|
69503
|
69503
69005-42511
Cylinder Set, Lock
[01.2007 - 08.2008] ACA33,GSA33..ARL |
69005-42511 |
— | ||
|
69503
|
69503
69005-42512
Cylinder Set, Lock
[02.2010 - 12.2012] ACA3#,ALA3#,GSA33,ZSA3#..RHD |
69005-42512 |
— | ||
|
89070E
|
89070E
89070-12740
Transmitter Assy, Door Control
[01.2010 - 12.2012] ACA33,38,GSA33..ARL; ACA33,38..G..GEN TAIWAN SPEC; ACA33,38..4FC..X..GEN TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); ALA30..RHD..6F..DCRL;ALA30..RHD..G..DCR..BTYPE NEW ZEALAND SPEC |
89070-12740 |
— | ||
|
89070E
|
89070E
89070-28850
Transmitter Assy, Door Control
[01.2007 - 08.2008] ACA33,GSA33..ARL |
89070-28850 |
— | ||
|
89070E
|
89070E
89070-42530
Transmitter Assy, Door Control
[11.2005 - 04.2006] ACA33,38..G..GEN;ACA30,33,ALA30..ARL,EUR,GCC; ACA30,ALA30..G WITH(SMART KEY & CRUISE CONTROL); ACA30..RHD..4FC..G HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL) |
89070-42530 |
— | ||
| replacement | |||||
|
89070E
|
89070E
89070-28812
Transmitter Assy, Door Control
[11.2005 - 04.2006] ACA33,38..G..GEN;ACA30,33,ALA30..ARL,EUR,GCC; ACA30,ALA30..G WITH(SMART KEY & CRUISE CONTROL); ACA30..RHD..4FC..G HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL) |
89070-28812 |
— | ||
|
89070E
|
89070E
89070-42531
Transmitter Assy, Door Control
[05.2006 - 12.2006] ACA33,38..G..GEN;ACA30,33,ALA30..ARL,EUR,GCC; ACA30,ALA30..G WITH(SMART KEY & CRUISE CONTROL); ACA30..RHD..4FC..G HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL) |
89070-42531 |
— | ||
| replacement | |||||
|
89070E
|
89070E
89070-28812
Transmitter Assy, Door Control
[05.2006 - 12.2006] ACA33,38..G..GEN;ACA30,33,ALA30..ARL,EUR,GCC; ACA30,ALA30..G WITH(SMART KEY & CRUISE CONTROL); ACA30..RHD..4FC..G HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL) |
89070-28812 |
— | ||
|
89070E
|
89070E
89070-42721 Transmitter Assy, Door Control[08.2010 - 12.2012] ACA33,38..ARL JAMAICA SPEC; ACA33,38..ARL BERMUDA SPEC; ACA33,38..ARL TRINIDAD SPEC |
89070-42721 |
US $281.60 |
||
|
89071B
|
89071B
89071-26040
Module Set, Transmitter Sub-Assy, Door Control
[11.2005 - 04.2006] ACA3#,ALA30; ACA30..RHD..4FC..G HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY; ACA30,ALA30..G WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY |
89071-26040 |
— | ||
| replacement | |||||
|
89071B
|
89071B
89071-28202
Module Set, Transmitter Sub-Assy, Door Control
[11.2005 - 04.2006] ACA3#,ALA30; ACA30..RHD..4FC..G HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY; ACA30,ALA30..G WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY |
89071-28202 |
— | ||
|
89071B
|
89071B
89071-26041
Module Set, Transmitter Sub-Assy, Door Control
[05.2006 - 01.2007] ACA3#,ALA30; ACA30..RHD..4FC..G HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY; ACA30,ALA30..G WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY |
89071-26041 |
— | ||
| replacement | |||||
|
89071B
|
89071B
89071-28202
Module Set, Transmitter Sub-Assy, Door Control
[05.2006 - 01.2007] ACA3#,ALA30; ACA30..RHD..4FC..G HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY; ACA30,ALA30..G WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY |
89071-28202 |
— | ||
|
89071B
|
89071B
89071-28202
Module Set, Transmitter Sub-Assy, Door Control
[08.2010 - 12.2012] ACA33,38..ARL JAMAICA SPEC; ACA33,38..ARL BERMUDA SPEC; ACA33,38..ARL TRINIDAD SPEC |
89071-28202 |
— | ||
|
89071B
|
89071B
89071-28240
Module Set, Transmitter Sub-Assy, Door Control
[01.2007 - 08.2008] ACA33,GSA33..ARL |
89071-28240 |
— | ||
|
89072A
|
89072A
89072-12181 Housing Set, Door Control TransmitterDOOR CONTROL TRANSMITTER [01.2010 - 12.2012] ALA35,ZSA35..ATYPE;ZSA30..LHD..6F..ATYPE;ALA30..(DCRE,DCRL)..ATYPE;ACA33,38,GSA33, ZSA30..RHD..ATYPE; ACA33,38..4FC..X..GEN TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER) |
89072-12181 |
US $104.96 |
||
|
89072A
|
89072A
89072-12360
Housing Set, Door Control Transmitter
[08.2010 - 12.2012] ACA33,38..ARL JAMAICA SPEC; ACA33,38..ARL BERMUDA SPEC; ACA33,38..ARL TRINIDAD SPEC |
89072-12360 |
— | ||
|
89072A
|
89072A
89072-28300 Housing Set, Door Control Transmitter[11.2005 - 12.2008] ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC; ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL); ACA30..RHD..4FC..G HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL) |
89072-28300 |
US $104.96 |
||
|
89745A
|
89745A
89745-48030 Battery, Transmitter[11.2005 - 12.2008] ACA3#,ALA30,GSA33; ACA30..RHD..4FC..G HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY; ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY |
89745-48030 |
US $5.82 |
||
|
89751A
|
89751A
89751-12060
Cover, Transmitter Housing
[08.2010 - 12.2012] ACA33,38..ARL JAMAICA SPEC; ACA33,38..ARL BERMUDA SPEC; ACA33,38..ARL TRINIDAD SPEC |
89751-12060 |
— | ||
|
89751A
|
89751A
89751-22050 Cover, Transmitter Housing[11.2005 - 01.2007] ACA3#,ALA30; ACA30..RHD..4FC..G HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY; ACA30,ALA30..G WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY |
89751-22050 |
US $12.67 |
||
|
89751A
|
89751A
89751-28070 Cover, Transmitter Housing[01.2007 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
89751-28070 |
from US $10.16 |
||
|
89751A
|
89751A
89751-52140 Cover, Transmitter Housing[01.2010 - 12.2012] ACA33,38..X..GEN;ZSA30..LHD..6F..ATYPE;ACA33,ZSA30..RHD..ATYPE;ALA30..(DCRE,DCRL). .ATYPE;ACA38,ALA35,GSA33,ZSA35..(ARL,EUR)..ATYPE |
89751-52140 |
from US $9.30 |
||
|
89752A
|
89752A
89752-12140 Case, Transmitter HousingTRANSMITTER HOUSING [01.2010 - 12.2012] ACA33,38..G..GEN;ACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR,GCC; ACA33,38..4FC..X..GEN TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); ACA33,38..X..GEN ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART E |
89752-12140 |
from US $17.76 |
||
|
89752A
|
89752A
89752-28050 Case, Transmitter Housing[01.2007 - 12.2008] ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC; ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL); ACA30..RHD..4FC..G HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL) |
89752-28050 |
US $16.52 |
||
|
89786B
|
89786B
89786-60170 Transmitter, Transponder Key Sub[11.2005 - 08.2008] ACA33..X..GCC;ACA33,GSA33..ARL;ACA33,38..G..GEN BLANK KEY |
89786-60170 |
from US $35.24 |
||
|
89786B
|
89786B
89786-60220 Transmitter, Transponder Key SubTRANSPONDER KEY SUB [01.2010 - 12.2012] ACA33,38..G..GEN;ACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR,GCC BLANK KEY; ACA33,38..X..GEN BLANK KEY,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); ACA30,33,ALA3#,ZSA3#..G..EUR BLANK KEY,WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR) |
89786-60220 |
from US $34.81 |
||
