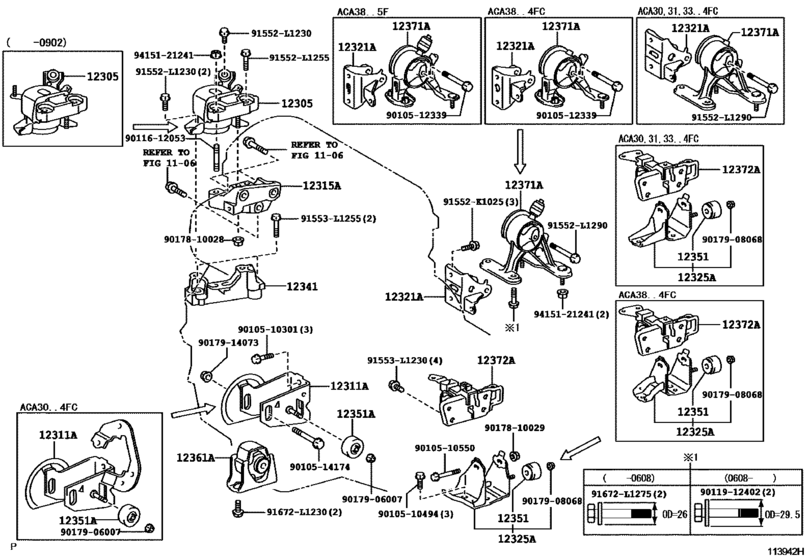

Mounting ([11.2005 - ] (0511- )1AZFE,2AZFE) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- X
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 5F
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-28230
Insulator Sub-Assy, Engine Mounting, Rh
[11.2005 - 08.2008] 2AZFE..ACA38;2AZFE..ACA33..5F |
12305-28230 |
— | ||
| replacement | |||||
|
12305
|
12305
12305-28231 Insulator Sub-Assy, Engine Mounting, Rh[11.2005 - 08.2008] 2AZFE..ACA38;2AZFE..ACA33..5F |
12305-28231 |
from US $138.66 |
||
|
12305
|
12305
12305-28300
Insulator Sub-Assy, Engine Mounting, Rh
[02.2009 - 12.2012] 2AZFE..ACA38;1AZFE,2AZFE..ACA30,33..5F |
12305-28300 |
— | ||
| replacement | |||||
|
12305
|
12305
12305-28301 Insulator Sub-Assy, Engine Mounting, Rh[02.2009 - 12.2012] 2AZFE..ACA38;1AZFE,2AZFE..ACA30,33..5F |
12305-28301 |
from US $179.21 |
||
|
12311A
|
12311A
12311-28220
Bracket, Engine Mounting, Front(For Transverse Engine)
[11.2005 - 08.2008] 2AZFE..ACA38;2AZFE..ACA33..5F |
12311-28220 |
— | ||
| replacement | |||||
|
12311A
|
12311A
12311-28310 Bracket, Engine Mounting, Front(For Transverse Engine)[11.2005 - 08.2008] 2AZFE..ACA38;2AZFE..ACA33..5F |
12311-28310 |
US $33.15 |
||
|
12311A
|
12311A
12311-28310 Bracket, Engine Mounting, Front(For Transverse Engine)[04.2010 - 12.2012] 2AZFE..ACA38;1AZFE,2AZFE..ACA30,33..5F |
12311-28310 |
US $33.15 |
||
|
12315A
|
12315A
12315-28090 Bracket, Engine Mounting, Rh(For Transverse Engine)[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
12315-28090 |
US $76.27 |
||
|
12321A
|
12321A
12321-28200
Bracket, Engine Mounting, Rear(For Transverse Engine)
[11.2005 - 08.2008] 2AZFE..ACA33..5F |
12321-28200 |
— | ||
|
12325A
|
12325A
12304-28140 Bracket, Engine Mounting, Lh(For Transverse Engine)ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) [11.2005 - 08.2008] 2AZFE..ACA33,38..5F |
12304-28140 |
US $39.02 |
||
|
12341
|
12341
12341-26010 Spacer, Engine Mounting[11.2005 - 01.2008] 1AZFE,2AZFE,2AD#..ACA3#,ALA30 |
12341-26010 |
US $151.42 |
||
| replacement | |||||
|
12341
|
12341
12341-26011 Spacer, Engine Mounting[11.2005 - 01.2008] 1AZFE,2AZFE,2AD#..ACA3#,ALA30 |
12341-26011 |
US $93.18 |
||
|
12341
|
12341
12341-26011 Spacer, Engine Mounting[02.2008 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN; 2GRFE..GSA33 |
12341-26011 |
US $93.18 |
||
|
12351
|
12351
12351-28100
Damper, Engine Mounting
[11.2005 - 08.2008] 2AZFE..ACA33,38..5F |
12351-28100 |
— | ||
|
12351A
|
12351A
12351-28110 Damper, Engine Mounting[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
12351-28110 |
US $17.30 |
||
|
12361A
|
12361A
12361-28230 Insulator, Engine Mounting, Front(For Transverse Engine)ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) [11.2005 - 08.2008] 2AZFE..ACA33,38..5F |
12361-28230 |
from US $55.76 |
||
|
12371A
|
12371A
12371-28200 Insulator, Engine Mounting, RearENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) [11.2005 - 08.2008] 2AZFE..ACA33..5F |
12371-28200 |
US $119.91 |
||
|
12372A
|
12372A
12372-28210 Insulator, Engine Mounting, Lh(For Transverse Engine)ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) [11.2005 - 08.2008] 2AZFE..ACA33,38..5F |
12372-28210 |
US $102.75 |
||
|
91552K1025
|
91552K1025
91552-K1025 BOLT FLANGE |
91552-K1025 |
US $1.79 |
||
|
91552L1230
|
91552L1230
91552-L1230 BOLT FLANGE |
91552-L1230 |
US $2.87 |
||
|
91552L1255
|
91552L1255
91552-L1255 New Genuine Part |
91552-L1255 |
US $3.40 |
||
|
91552L1290
|
91552L1290
91552-L1290 New Genuine Part |
91552-L1290 |
US $3.20 |
||
|
91553L1230
|
91553L1230
91553-L1230 New Genuine Part |
91553-L1230 |
US $3.76 |
||
|
91553L1255
|
91553L1255
91553-L1255 New Genuine Part |
91553-L1255 |
US $3.20 |
||
|
91672L1230
|
91672L1230
91672-L1230 BOLT FLANGE |
91672-L1230 |
US $3.40 |
||
|
91672L1275
|
91672L1275
91672-L1275 BOLT FLANGE |
91672-L1275 |
US $5.56 |
||
|
9010510301
|
9010510301
90105-10301 BOLT WASHER BASED |
90105-10301 |
US $1.97 |
||
|
9010510494
|
9010510494
90105-10494 BOLT FLANGE |
90105-10494 |
US $1.79 |
||
|
9010510550
|
9010510550
90105-10550 BOLT FLANGE |
90105-10550 |
US $4.30 |
||
|
9010512339
|
9010512339
90105-12339 New Genuine Part |
90105-12339 |
US $5.91 |
||
|
9010514174
|
9010514174
90105-14174 New Genuine Part |
90105-14174 |
US $7.17 |
||
|
9011612053
|
9011612053
90116-12053 BOLT STUD |
90116-12053 |
US $5.56 |
||
|
9011912402
|
9011912402
90119-12402 New Genuine Part |
90119-12402 |
US $4.84 |
||
|
9017810028
|
9017810028
90178-10028 New Genuine Part |
90178-10028 |
US $2.15 |
||
|
9017810029
|
9017810029
90178-10029 Nut(For Front Suspension Support) |
90178-10029 |
from US $0.90 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.80 |
||
|
9017914073
|
9017914073
90179-14073 New Genuine Part |
90179-14073 |
US $4.30 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $0.94 |
||
