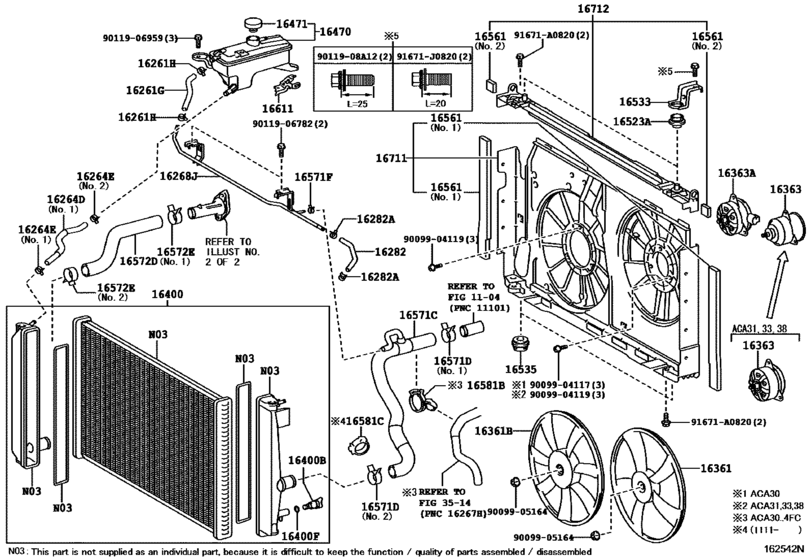

Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- X
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 5F
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261G
|
16261G
16261-28070 Hose, Water By-Pass[11.2005 - 12.2008] 1AZFE,2AZFE..ACA3# |
16261-28070 |
US $10.39 |
||
|
16261H
|
16261H
90467-15022 Clip Or Clamp(For Ventilation Hose)[11.2005 - 12.2008] 1AZFE,2AZFE..ACA3# |
90467-15022 |
from US $1.07 |
||
|
16264D
|
16264D
16264-28090 Hose, Water By-Pass, No.2[11.2005 - 12.2008] 1AZFE,2AZFE..ACA3# |
16264-28090 |
US $10.39 |
||
|
16264E
|
16264E
90467-15022 Clip Or Clamp(For Ventilation Hose)[11.2005 - 12.2008] 1AZFE,2AZFE..ACA3# NO.1 |
90467-15022 |
from US $1.07 |
||
|
16264E
|
16264E
96134-51700 Clip Or Clamp(For Ventilation Hose)[11.2005 - 12.2008] 1AZFE,2AZFE..ACA3# NO.2 |
96134-51700 |
US $2.51 |
||
|
16268J
|
16268J
16268-31020 Pipe, Water By-Pass, No.5[11.2005 - 12.2005] 1AZFE,2AZFE..ACA30,33..ARL,EUR |
16268-31020 |
US $59.26 |
||
| replacement | |||||
|
16268J
|
16268J
16268-31011 Pipe, Water By-Pass, No.1WATER BY-PASS, NO.1 [11.2005 - 12.2005] 1AZFE,2AZFE..ACA30,33..ARL,EUR |
16268-31011 |
from US $34.30 |
||
|
16268J
|
16268J
16268-31021
Pipe, Water By-Pass, No.1
[12.2005 - 12.2008] 1AZFE,2AZFE..ACA30,31,33..ARL,EUR |
16268-31021 |
— | ||
| replacement | |||||
|
16268J
|
16268J
16268-31011 Pipe, Water By-Pass, No.1WATER BY-PASS, NO.1 [12.2005 - 12.2008] 1AZFE,2AZFE..ACA30,31,33..ARL,EUR |
16268-31011 |
from US $34.30 |
||
|
16282
|
16282
16282-28120 Hose, Water By-Pass, No.5[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
16282-28120 |
from US $5.69 |
||
|
16282A
|
16282A
90467-15022 Clip Or Clamp(For Ventilation Hose)[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
90467-15022 |
from US $1.07 |
||
|
16361
|
16361
16361-28220 Fan[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
16361-28220 |
from US $49.96 |
||
|
16361B
|
16361B
16361-28240 Fan, No.2[11.2005 - 08.2008] 2AZFE..ACA33..ARL |
16361-28240 |
US $71.05 |
||
|
16363
|
16363
16363-28170 Motor, Cooling FanCOOLING FAN [11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
16363-28170 |
US $170.57 |
||
|
16363A
|
16363A
16363-28290 Motor, Cooling Fan[11.2005 - 08.2008] 2AZFE..ACA33..ARL |
16363-28290 |
from US $224.84 |
||
|
16400
|
16400
16400-28570 Radiator Assy[11.2005 - 08.2008] 2AZFE..ACA33,38..5F |
16400-28570 |
from US $569.30 |
||
|
16400B
|
16400B
16417-30170 Cock Sub-Assy, Radiator Drain[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
16417-30170 |
from US $4.76 |
||
|
16400F
|
16400F
16418-15520 Packing(For Radiator Drain Cock)[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
16418-15520 |
from US $1.56 |
||
|
16470
|
16470
16470-28110
Tank Assy, Radiator Reserve
[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
16470-28110 |
— | ||
| replacement | |||||
|
16470
|
16470
16470-28113 Tank Assy, Radiator Reserve[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
16470-28113 |
from US $141.04 |
||
|
16470
|
16470
16470-28111 Tank Assy, Radiator Reserve[08.2011 - 12.2012] 2GRFE..GSA33; 1AZFE,2AZFE..ACA3#; 3ZRFAE..ZSA3# |
16470-28111 |
US $94.64 |
||
| replacement | |||||
|
16470
|
16470
16470-28113 Tank Assy, Radiator Reserve[08.2011 - 12.2012] 2GRFE..GSA33; 1AZFE,2AZFE..ACA3#; 3ZRFAE..ZSA3# |
16470-28113 |
from US $141.04 |
||
|
16471
|
16471
16401-75120
Cap Sub-Assy, Radiator Reserve Tank
[11.2005 - 04.2006] 1AZFE,2AZFE,2AD#..ACA3#,ALA30 |
16401-75120 |
— | ||
| replacements | |||||
|
16471
|
16471
16475-51010
Cap Sub-Assy, Radiator Reserve Tank
[11.2005 - 04.2006] 1AZFE,2AZFE,2AD#..ACA3#,ALA30 |
16475-51010 |
— | ||
|
16471
|
16471
16475-28140 Cap Sub-Assy, Radiator Reserve Tank[11.2005 - 04.2006] 1AZFE,2AZFE,2AD#..ACA3#,ALA30 |
16475-28140 |
from US $20.16 |
||
|
16471
|
16471
16475-28120
Cap Sub-Assy, Reserve Tank
[05.2006 - 03.2008] 1AZFE,2AZFE,2AD#..ACA3#,ALA30 |
16475-28120 |
— | ||
| replacements | |||||
|
16471
|
16471
16475-51010
Cap Sub-Assy, Radiator Reserve Tank
[05.2006 - 03.2008] 1AZFE,2AZFE,2AD#..ACA3#,ALA30 |
16475-51010 |
— | ||
|
16471
|
16471
16475-28140 Cap Sub-Assy, Radiator Reserve Tank[05.2006 - 03.2008] 1AZFE,2AZFE,2AD#..ACA3#,ALA30 |
16475-28140 |
from US $20.16 |
||
|
16471
|
16471
16475-37010
Cap Sub-Assy, Radiator Reserve Tank
[08.2011 - 12.2012] 2GRFE..GSA33; 3ZRFAE..ZSA3#; 1AZFE,2AZFE,2AD#..ACA3#,ALA3# |
16475-37010 |
— | ||
| replacement | |||||
|
16471
|
16471
16475-28140 Cap Sub-Assy, Radiator Reserve Tank[08.2011 - 12.2012] 2GRFE..GSA33; 3ZRFAE..ZSA3#; 1AZFE,2AZFE,2AD#..ACA3#,ALA3# |
16475-28140 |
from US $20.16 |
||
|
16471
|
16471
16475-51010
Cap Sub-Assy, Radiator Reserve Tank
[04.2008 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN; 2GRFE..GSA33 |
16475-51010 |
— | ||
|
16523A
|
16523A
16523-28030 Cushion, Radiator Support[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
16523-28030 |
from US $6.40 |
||
|
16533
|
16533
16533-28030 Support, Radiator, Upper[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
16533-28030 |
from US $20.55 |
||
|
16535
|
16535
16535-20030 Support, Radiator, Lower[11.2005 - 08.2008] 2AZFE..ACA33,38..5F |
16535-20030 |
from US $7.31 |
||
|
16561
|
16561
16561-28080 Seal, Radiator To Support, No.1[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN NO.1 |
16561-28080 |
US $3.89 |
||
|
16561
|
16561
16561-28090 Seal, Radiator To Support, No.1[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN NO.2 |
16561-28090 |
US $2.91 |
||
|
16571C
|
16571C
16571-28250 Hose, Radiator, No.1[11.2005 - 12.2008] 1AZFE,2AZFE..ACA3# |
16571-28250 |
from US $26.87 |
||
|
16571D
|
16571D
90466-35001 Clamp Or Clip, Hose(For Radiator Inlet)[11.2005 - 12.2008] 1AZFE,2AZFE..ACA3# NO.1 |
90466-35001 |
from US $5.38 |
||
|
16571D
|
16571D
90466-41005 Clamp Or Clip, Hose(For Radiator Inlet)[11.2005 - 12.2008] 1AZFE,2AZFE..ACA3# NO.2; 2AD#..ALA30 NO.1 |
90466-41005 |
from US $5.56 |
||
|
16571D
|
16571D
96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)[04.2009 - 12.2012] 1AZFE,2AZFE..ACA3# NO.1 |
96136-44301 |
from US $5.56 |
||
|
16571D
|
16571D
96136-44801 Clamp Or Clip, Hose(For Radiator Inlet)HOSE(FOR RADIATOR INLET) [04.2009 - 12.2012] 1AZFE,2AZFE..ACA3# NO.2 |
96136-44801 |
from US $5.91 |
||
|
16571D
|
16571D
96136-54301 Clip, Radiator Hose, No.1[08.2008 - 03.2009] 1AZFE,2AZFE..ACA30,33,38 NO.1 |
96136-54301 |
from US $4.84 |
||
|
16571D
|
16571D
96136-54801 Clamp Or Clip, Hose(For Radiator Inlet)[08.2008 - 03.2009] 1AZFE,2AZFE..ACA30,33,38 NO.2 |
96136-54801 |
from US $5.38 |
||
|
16571F
|
16571F
90467-13073
Clamp Or Clip, Hose(For Water By-Pass Hose)
[11.2005 - 12.2008] 1AZFE,2AZFE..ACA3# |
90467-13073 |
— | ||
| replacement | |||||
|
16571F
|
16571F
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.2005 - 12.2008] 1AZFE,2AZFE..ACA3# |
90467-13128 |
from US $1.38 |
||
|
16571F
|
16571F
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.2008 - 12.2012] 1AZFE,2AZFE..ACA30,33,38 |
90467-13128 |
from US $1.38 |
||
|
16572D
|
16572D
16572-28210 Hose, Radiator, No.2[11.2005 - 12.2008] 1AZFE,2AZFE..ACA3# |
16572-28210 |
from US $17.78 |
||
|
16572E
|
16572E
90466-35001 Clamp Or Clip, Hose(For Radiator Inlet)[11.2005 - 12.2008] 1AZFE,2AZFE..ACA3# NO.1 |
90466-35001 |
from US $5.38 |
||
|
16572E
|
16572E
90466-41005 Clamp Or Clip, Hose(For Radiator Inlet)[11.2005 - 12.2008] 1AZFE,2AZFE..ACA3# NO.2 |
90466-41005 |
from US $5.56 |
||
|
16572E
|
16572E
96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)[04.2009 - 12.2012] 1AZFE,2AZFE..ACA3# NO.1 |
96136-44301 |
from US $5.56 |
||
|
16572E
|
16572E
96136-44801 Clamp Or Clip, Hose(For Radiator Inlet)HOSE(FOR RADIATOR INLET) [04.2009 - 12.2012] 1AZFE,2AZFE..ACA3# NO.2 |
96136-44801 |
from US $5.91 |
||
|
16572E
|
16572E
96136-54301 Clip, Radiator Hose, No.1[08.2008 - 03.2009] 1AZFE,2AZFE..ACA30,33,38 NO.1 |
96136-54301 |
from US $4.84 |
||
|
16572E
|
16572E
96136-54801 Clamp Or Clip, Hose(For Radiator Inlet)[08.2008 - 03.2009] 1AZFE,2AZFE..ACA30,33,38 NO.2 |
96136-54801 |
from US $5.38 |
||
|
16581C
|
16581C
16581-26040 Clamp, Hose(For Water Hose)[11.2011 - 12.2012] 2GRFE..GSA33; 1AZFE,2AZFE..ACA3# |
16581-26040 |
from US $7.22 |
||
|
16611
|
16611
16611-28030 Bracket, Radiator Reserve Tank[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
16611-28030 |
US $17.91 |
||
|
16711
|
16711
16711-28320
Shroud, Fan
[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
16711-28320 |
— | ||
| replacements | |||||
|
16711
|
16711
16581-26040 Clamp, Hose(For Water Hose)[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
16581-26040 |
from US $7.22 |
||
|
16711
|
16711
16711-28321 Shroud, Fan[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
16711-28321 |
US $132.31 |
||
|
16711
|
16711
16711-28321 Shroud, Fan[11.2011 - 12.2012] 2AZFE..ACA33,38 |
16711-28321 |
US $132.31 |
||
|
16712
|
16712
16712-28050 Shroud, Fan, No.2[11.2005 - 08.2008] 2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN |
16712-28050 |
from US $32.14 |
||
|
91671A0820
|
91671A0820
91671-A0820 New Genuine Part |
91671-A0820 |
US $1.43 |
||
|
91671J0820
|
91671J0820
91671-J0820 BOLT FLANGE |
91671-J0820 |
US $2.15 |
||
|
9011908A12
|
9011908A12
90119-08A12 New Genuine Part |
90119-08A12 |
US $1.43 |
||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
from US $0.62 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.55 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9011906782
|
9011906782
90119-06782 BOLT WWASHER |
90119-06782 |
from US $0.66 |
||
|
9011906959
|
9011906959
90119-06959 New Genuine Part |
90119-06959 |
US $1.02 |
||
