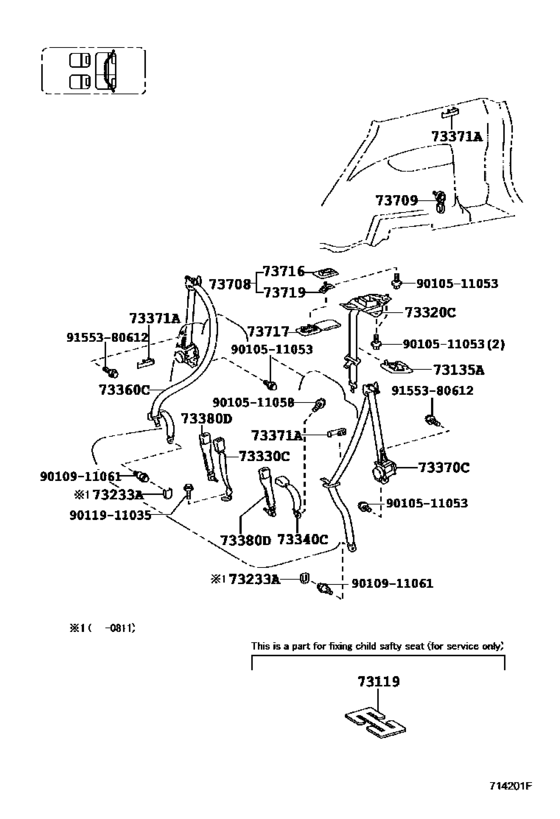

Seat Belt ([11.2005 - ] REAR SEAT (0511- )ACA33,38,GSA33) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- X
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 5F
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73119
|
73119
73119-22010 Plate, Seat Belt Webbing Clip[08.2010 - 12.2012] ACA3#,ALA3#,GSA33,ZSA3# |
73119-22010 |
from US $18.14 |
||
|
73135A
|
73135A
73137-42020-B0 Cover, Shoulder Belt Anchor, Rh[11.2005 - 12.2008] ACA3#,ALA30,GSA33 GRAY,TRIM1# |
73137-42020-B0 |
US $6.29 |
||
|
73233A
|
73233A
73233-42030 Cover, Lap Belt Outer Anchor[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
73233-42030 |
US $4.51 |
||
|
73320C
|
73320C
73320-42020-B2
Belt Assy, Rear Seat 3 Point Type
[11.2005 - 08.2008] ACA33,GSA33..ARL GRAY,TRIM1# |
73320-42020-B2 |
— | ||
| replacement | |||||
|
73320C
|
73320C
73320-42021-B2
Belt Assy, Rear Seat 3 Point Type
[11.2005 - 08.2008] ACA33,GSA33..ARL GRAY,TRIM1# |
73320-42021-B2 |
— | ||
|
73320C
|
73320C
73320-42020-B4
Belt Assy, Rear Seat 3 Point Type
[08.2010 - 07.2012] ACA33,38,GSA33..ARL GRAY,TRIM1# |
73320-42020-B4 |
— | ||
| replacement | |||||
|
73320C
|
73320C
73320-42021-B4
Belt Assy, Rear Seat 3 Point Type
[08.2010 - 07.2012] ACA33,38,GSA33..ARL GRAY,TRIM1# |
73320-42021-B4 |
— | ||
|
73320C
|
73320C
73320-42021-B4
Belt Assy, Rear Seat 3 Point Type
[07.2012 - 12.2012] ACA33,38..GEN GRAY,TRIM13; ACA33,38,GSA33..ARL,EUR GRAY,TRIM1# |
73320-42021-B4 |
— | ||
|
73330C
|
73330C
73330-42090-B0
Belt Assy, Rear Seat Lap Type, Center Rh
[11.2005 - 08.2008] ACA33,GSA33..ARL DK.GRAY,TRIM1# |
73330-42090-B0 |
— | ||
| replacement | |||||
|
73330C
|
73330C
73330-42090-B2
Belt Assy, Rear Seat Lap Type, Center Rh
[11.2005 - 08.2008] ACA33,GSA33..ARL DK.GRAY,TRIM1# |
73330-42090-B2 |
— | ||
|
73330C
|
73330C
73330-42090-B2
Belt Assy, Rear Seat Lap Type, Center Rh
[08.2010 - 12.2012] ACA33,38..GEN DK.GRAY,TRIM13; ACA33,38,GSA33..ARL,EUR DK.GRAY,TRIM1# |
73330-42090-B2 |
— | ||
|
73340C
|
73340C
73340-42070-B0 Belt Assy, Rear Seat Lap Type, Center Lh[08.2012 - 12.2012] ACA33,38..GEN DK.GRAY,TRIM13; ACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
73340-42070-B0 |
US $35.53 |
||
|
73340C
|
73340C
73340-42070-B1 Belt Assy, Rear Seat Lap Type, Center Lh[11.2005 - 12.2008] ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
73340-42070-B1 |
US $42.66 |
||
|
73340C
|
73340C
73340-42070-B4 Belt Assy, Rear Seat Lap Type, Center Lh[08.2010 - 08.2012] ACA33,38..GEN DK.GRAY,TRIM13; ACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
73340-42070-B4 |
US $42.66 |
||
| replacement | |||||
|
73340C
|
73340C
73340-42070-B0 Belt Assy, Rear Seat Lap Type, Center Lh[08.2010 - 08.2012] ACA33,38..GEN DK.GRAY,TRIM13; ACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
73340-42070-B0 |
US $35.53 |
||
|
73360C
|
73360C
73360-42200-B2 Belt Assy, Rear No.1 Seat, Outer Rh[11.2005 - 12.2008] ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
73360-42200-B2 |
US $266.45 |
||
| replacement | |||||
|
73360C
|
73360C
73360-42201-B2 Belt Assy, Rear No.1 Seat, Outer RhREAR NO.1 SEAT, OUTER RH [11.2005 - 12.2008] ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
73360-42201-B2 |
US $266.45 |
||
|
73360C
|
73360C
73360-42201-B2 Belt Assy, Rear No.1 Seat, Outer RhREAR NO.1 SEAT, OUTER RH [12.2009 - 08.2010] ACA33,38..4FC..GEN DK.GRAY,TRIM13; ACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
73360-42201-B2 |
US $266.45 |
||
|
73360C
|
73360C
73360-42270-B2
Belt Assy, Rear No.1 Seat, Outer Rh
[08.2010 - 06.2012] ACA33,38,GSA33..ARL DK.GRAY,TRIM1# |
73360-42270-B2 |
— | ||
| replacement | |||||
|
73360C
|
73360C
73360-42271-B2
Belt Assy, Rear No.1 Seat, Outer Rh
[08.2010 - 06.2012] ACA33,38,GSA33..ARL DK.GRAY,TRIM1# |
73360-42271-B2 |
— | ||
|
73360C
|
73360C
73360-42271-B2
Belt Assy, Rear No.1 Seat, Outer Rh
[07.2012 - 12.2012] ACA33,38,GSA33..ARL DK.GRAY,TRIM1# |
73360-42271-B2 |
— | ||
|
73370C
|
73370C
73370-42110-B2 Belt Assy, Rear No.1 Seat, Outer Lh[11.2005 - 12.2008] ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
73370-42110-B2 |
US $266.45 |
||
| replacement | |||||
|
73370C
|
73370C
73370-42111-B2 Belt Assy, Rear No.1 Seat, Outer LhREAR NO.1 SEAT, OUTER LH [11.2005 - 12.2008] ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
73370-42111-B2 |
US $266.45 |
||
|
73370C
|
73370C
73370-42111-B2 Belt Assy, Rear No.1 Seat, Outer LhREAR NO.1 SEAT, OUTER LH [12.2009 - 08.2010] ACA33,38..4FC..GEN DK.GRAY,TRIM13; ACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
73370-42111-B2 |
US $266.45 |
||
|
73370C
|
73370C
73370-42160-B2
Belt Assy, Rear No.1 Seat, Outer Lh
[08.2010 - 07.2012] ACA33,38,GSA33..ARL DK.GRAY,TRIM1# |
73370-42160-B2 |
— | ||
| replacement | |||||
|
73370C
|
73370C
73370-42161-B2
Belt Assy, Rear No.1 Seat, Outer Lh
[08.2010 - 07.2012] ACA33,38,GSA33..ARL DK.GRAY,TRIM1# |
73370-42161-B2 |
— | ||
|
73370C
|
73370C
73370-42161-B2
Belt Assy, Rear No.1 Seat, Outer Lh
[07.2012 - 12.2012] ACA33,38,GSA33..ARL DK.GRAY,TRIM1# |
73370-42161-B2 |
— | ||
|
73371A
|
73371A
73371-42010-B0 Hanger Rear Seat Shoulder Belt[11.2005 - 12.2008] ACA33,38..LHD;ACA30,31,ALA30..G DK.GRAY,TRIM1#,4#; ACA30,ALA30..X;ACA33,GSA33..ARL DK.GRAY,TRIM1# |
73371-42010-B0 |
US $5.53 |
||
|
73380D
|
73380D
73380-42080-B0 Belt Assy, Rear Seat, Inner[11.2005 - 12.2008] ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
73380-42080-B0 |
US $42.66 |
||
| replacement | |||||
|
73380D
|
73380D
73380-42080-B4 Belt Assy, Rear Seat, Inner[11.2005 - 12.2008] ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
73380-42080-B4 |
US $35.53 |
||
|
73380D
|
73380D
73380-42080-B4 Belt Assy, Rear Seat, Inner[08.2010 - 12.2012] ACA33,38..GEN DK.GRAY,TRIM13; ACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
73380-42080-B4 |
US $35.53 |
||
|
73708
|
73708
73708-42030-B0 Bracket Set, Tether Anchor[11.2005 - 12.2008] ACA33,38,GSA33 GRAY,TRIM1# |
73708-42030-B0 |
US $16.31 |
||
|
73709
|
73709
73708-42060-B0 Bracket Sub-Assy, Tether Anchor[11.2005 - 08.2008] ACA33,GSA33..ARL DK.GRAY,TRIM1# |
73708-42060-B0 |
US $27.08 |
||
| replacement | |||||
|
73709
|
73709
73708-42060-C0 Bracket Sub-Assy, Tether Anchor[11.2005 - 08.2008] ACA33,GSA33..ARL DK.GRAY,TRIM1# |
73708-42060-C0 |
US $24.61 |
||
|
73716
|
73716
73716-42010-B0 Protector, Child Restraint Seat[11.2005 - 12.2008] ACA33,38,GSA33 GRAY,TRIM1# |
73716-42010-B0 |
US $7.43 |
||
|
73717
|
73717
73717-42020-B0 Cover, Child Restraint Seat Tether Anchor[11.2005 - 12.2008] ACA33,38,GSA33 GRAY,TRIM1# |
73717-42020-B0 |
US $13.98 |
||
|
73719
|
73719
73719-42010 Bracket, Child Restraint Seat Tether Anchor[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
73719-42010 |
US $5.10 |
||
|
9010511053
|
9010511053
90105-11053 BOLT FLANGE |
90105-11053 |
from US $1.07 |
||
|
9010511058
|
9010511058
90105-11058 BOLT FLANGE |
90105-11058 |
from US $0.92 |
||
|
9010911061
|
9010911061
90109-11061 New Genuine Part |
90109-11061 |
US $2.34 |
||
|
9011911035
|
9011911035
90119-11035 New Genuine Part |
90119-11035 |
US $1.31 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.62 |
||
