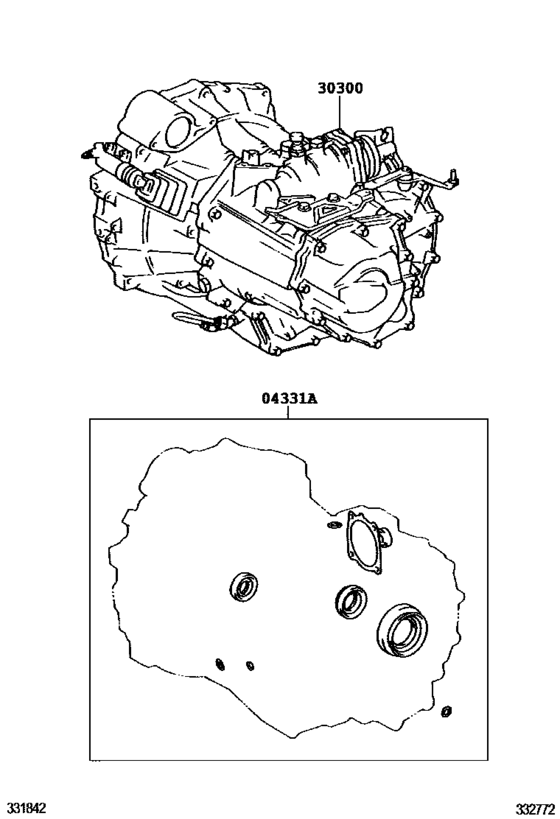

Transaxle Or Transmission Assy & Gasket Kit (Mtm) ([11.2005 - ] E352,E352F,E359F (0511- )5F) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- X
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 5F
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04331A
|
04331A
04331-33080
Gasket Kit, Transaxle Overhaul(Mtm)
[11.2005 - 05.2006] ACA33..5F |
04331-33080 |
— | ||
| replacement | |||||
|
04331A
|
04331A
04331-42120
Gasket Kit, Transaxle Overhaul(Mtm)
[11.2005 - 05.2006] ACA33..5F |
04331-42120 |
— | ||
|
04331A
|
04331A
04331-42120
Gasket Kit, Transaxle Overhaul(Mtm)
[05.2006 - 08.2008] ACA33..5F |
04331-42120 |
— | ||
|
30300
|
30300
30300-42190
Transaxle Assy, Manual
[11.2005 - 08.2008] ACA33..5F E359F |
30300-42190 |
— | ||
