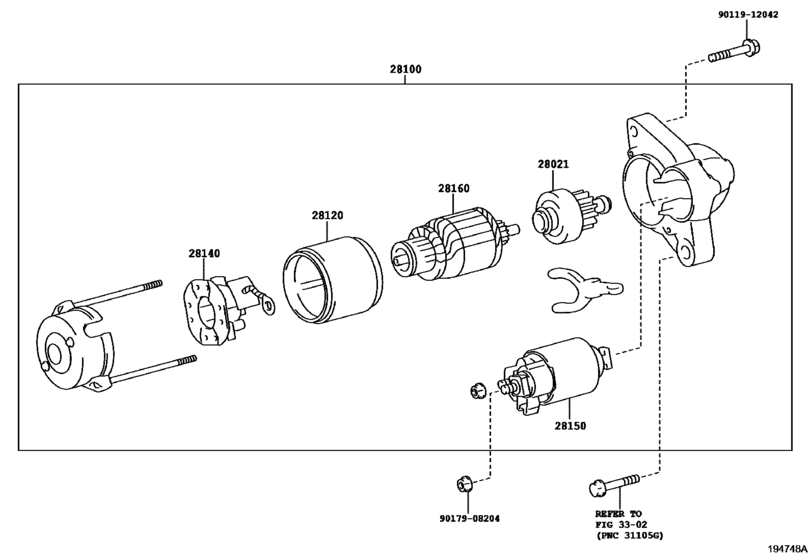

Starter ([12.2012 - ] 12V 2.0KW (1212- )1ADFTV,2AD#..ALA41,49) Diagram Toyota RAV4/VANGUARD
- Year
- 2013 - 2015
- Sales region
- Europe
- Frame
- ALA41
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- EUR
- Model
- RAV4
- From
- 11.2013
- To
- 10.2015
- Gear Shift Type
- 6F
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- DCRE
- Grade Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-26180
Clutch Sub-Assy, Starter Center Bearing
[12.2012 - 10.2015] 1ADFTV,2AD#..ALA41,49 |
28021-26180 |
— | ||
|
28100
|
28100
28100-26180
Starter Assy
[12.2012 - 07.2014] 1ADFTV,2AD#..ALA41,49 12V 2.0KW |
28100-26180 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-26181
Starter Assy
[12.2012 - 07.2014] 1ADFTV,2AD#..ALA41,49 12V 2.0KW |
28100-26181 |
— | ||
|
28100
|
28100
28100-26181
Starter Assy
[08.2014 - 10.2015] 1ADFTV,2AD#..ALA41,49 12V 2.0KW |
28100-26181 |
— | ||
|
28120
|
28120
28120-26180
Yoke Assy, Starter
[12.2012 - 10.2015] 1ADFTV,2AD#..ALA41,49 |
28120-26180 |
— | ||
|
28140
|
28140
28140-38070 Holder Assy, Starter Brush[12.2012 - 10.2015] 1ADFTV,2AD#..ALA41,49 |
28140-38070 |
from US $16.63 |
||
|
28150
|
28150
28150-37020
Switch Assy, Magnet Starter
[12.2012 - 10.2015] 1ADFTV,2AD#..ALA41,49 |
28150-37020 |
— | ||
|
28160
|
28160
28160-26180
Armature Assy, Starter
[12.2012 - 10.2015] 1ADFTV,2AD#..ALA41,49 |
28160-26180 |
— | ||
|
9011912042
|
9011912042
90119-12042 Bolt(For Transaxle Case & Engine Setting) |
90119-12042 |
US $4.66 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
