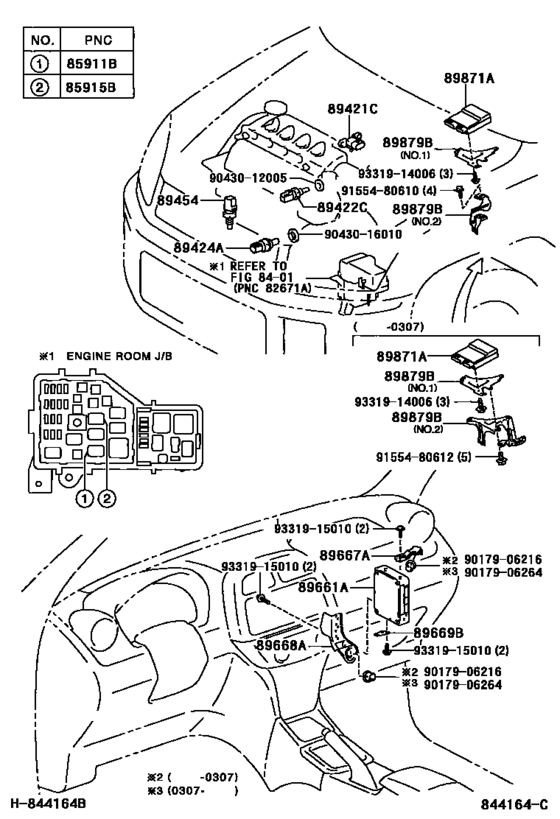

Electronic Controled Diesel (Ecd) ([05.2001 - ] (0105- )CLA2#..LHD) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85911B
|
85911B
90987-02012 Relay, Ignition, No.1[05.2001 - 07.2003] CLA2# |
90987-02012 |
from US $26.54 |
||
|
85911B
|
85911B
90987-02027 Relay[07.2003 -] CLA2# |
90987-02027 |
from US $47.11 |
||
|
85915B
|
85915B
90987-02012 Relay, Ignition, No.1[05.2001 - 07.2003] CLA2# |
90987-02012 |
from US $26.54 |
||
|
85915B
|
85915B
90987-02027 Relay[07.2003 -] CLA2# |
90987-02027 |
from US $47.11 |
||
|
89421C
|
89421C
89421-20210 Sensor, Turbo Pressure (For Diesel Turbo)[05.2001 - 07.2003] CLA2# |
89421-20210 |
from US $154.16 |
||
|
89422C
|
89422C
89422-35010 Sensor, Water Temperature (For E.f.i.)[05.2001 - 07.2003] CLA2# |
89422-35010 |
from US $44.58 |
||
|
89424A
|
89424A
89424-60010 Sensor, Inlet Air Temperature (For Diesel Turbo)[05.2001 - 07.2003] CLA2# |
89424-60010 |
from US $73.08 |
||
|
89454
|
89454
89454-60010 Sensor, Fuel Temperature[05.2001 - 07.2003] CLA2# |
89454-60010 |
from US $37.65 |
||
|
89661A
|
89661A
89661-42780 Computer, Engine ControlENGINE CONTROL [05.2001 - 04.2003] CLA2# PART NUMBER LABEL=89661-42780 |
89661-42780 |
US $1,456 |
||
|
89661A
|
89661A
89661-42A10
Computer, Engine Control
[07.2003 -] CLA2# |
89661-42A10 |
— | ||
|
89661A
|
89661A
89661-42B50
Computer, Engine Control
[04.2003 - 07.2003] CLA2# PART NUMBER LABEL=89661-42B50 |
89661-42B50 |
— | ||
|
89667A
|
89667A
89667-42040
Bracket, Engine Control Computer
[05.2001 - 07.2003] CLA2#..LHD |
89667-42040 |
— | ||
|
89668A
|
89668A
89668-42040 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [05.2001 - 07.2003] CLA2#..LHD |
89668-42040 |
US $19.80 |
||
|
89669B
|
89669B
89669-42040
Bracket, Engine Control Computer, No.3
[05.2001 - 07.2003] CLA2# |
89669-42040 |
— | ||
|
89871A
|
89871A
89871-20030 Driver, InjectorINJECTOR [05.2001 - 07.2003] CLA2# |
89871-20030 |
from US $779.25 |
||
|
89871A
|
89871A
89871-26010
Driver, Injector
[07.2003 -] CLA2# |
89871-26010 |
— | ||
|
89879B
|
89879B
89879-42020 Bracket, Injector DriverINJECTOR DRIVER [05.2001 - 07.2003] CLA2# NO.1 |
89879-42020 |
US $13.69 |
||
|
89879B
|
89879B
89879-42030
Bracket, Injector Driver
[05.2001 - 07.2003] CLA2# NO.2 |
89879-42030 |
— | ||
|
89879B
|
89879B
89879-42040 Bracket, Injector DriverINJECTOR DRIVER [07.2003 -] CLA2# NO.1 |
89879-42040 |
US $19.66 |
||
|
89879B
|
89879B
89879-42050 Bracket, Injector DriverINJECTOR DRIVER [07.2003 - 01.2004] CLA2# NO.2 |
89879-42050 |
US $23.73 |
||
| replacement | |||||
|
89879B
|
89879B
89879-42051 Bracket, Injector DriverINJECTOR DRIVER [07.2003 - 01.2004] CLA2# NO.2 |
89879-42051 |
US $23.88 |
||
|
89879B
|
89879B
89879-42051 Bracket, Injector DriverINJECTOR DRIVER [01.2004 -] CLA2# NO.2 |
89879-42051 |
US $23.88 |
||
|
9017906216
|
9017906216
90179-06216
Direct
|
90179-06216 |
— | ||
| replacement | |||||
|
9017906216
|
9017906216
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017906264
|
9017906264
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.84 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.68 |
||
|
9043016010
|
9043016010
90430-16010 Gasket, Neutral Start Switch |
90430-16010 |
US $1.12 |
||
|
9155480610
|
9155480610
91554-80610 New Genuine Part |
91554-80610 |
US $0.73 |
||
|
9155480612
|
9155480612
91554-80612 BOLT FLANGE |
91554-80612 |
US $0.69 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
