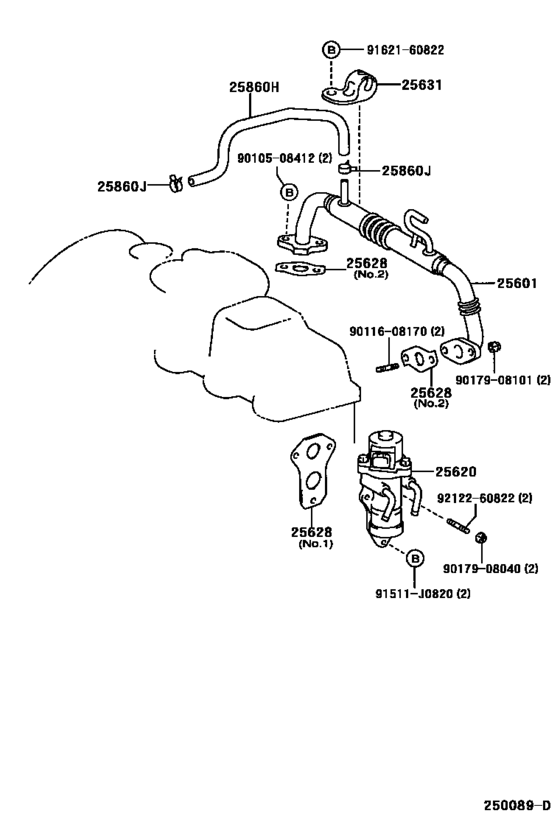

Exhaust Gas Recirculation System ([05.2001 - ] (0105- )1CDFTV) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-27010
Pipe Sub-Assy, Egr, No.1
[05.2001 - 07.2003] 1CDFTV..CLA2# |
25601-27010 |
— | ||
|
25620
|
25620
25620-27080 Valve Assy, EgrEGR [05.2001 - 07.2003] 1CDFTV..CLA2# |
25620-27080 |
US $393.12 |
||
|
25628
|
25628
25628-27010 Gasket, Egr InletEGR INLET [05.2001 - 07.2003] 1CDFTV..CLA2# NO.1 |
25628-27010 |
from US $12.17 |
||
|
25628
|
25628
25628-64030 Gasket, Egr Inlet[05.2001 - 07.2003] 1CDFTV..CLA2# NO.2 |
25628-64030 |
from US $11.15 |
||
|
25631
|
25631
25631-27010 Stay, Egr Pipe, No.1EGR PIPE, NO.1 [05.2001 - 07.2003] 1CDFTV..CLA2# |
25631-27010 |
US $5.97 |
||
|
25860H
|
25860H
16267-27010 Hose, Water By-Pass Hose No.2(For Egr Cooler)WATER BY-PASS HOSE NO.2(FOR EGR COOLER) [05.2001 - 07.2003] 1CDFTV..CLA2# |
16267-27010 |
US $12.08 |
||
|
25860J
|
25860J
90467-15022 Clip Or Clamp(For Ventilation Hose)[05.2001 - 07.2003] 1CDFTV..CLA2# |
90467-15022 |
from US $1.07 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.92 |
||
|
9010508412
|
9010508412
90105-08412
New Genuine Part
|
90105-08412 |
— | ||
|
9011608170
|
9011608170
90116-08170 Bolt, Stud(For Alternator Bracket) |
90116-08170 |
US $3.05 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9017908101
|
9017908101
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9162160822
|
9162160822
91621-60822 Bolt, W/washer(For Repair Actuator Set) |
91621-60822 |
US $1.61 |
||
|
9212260822
|
9212260822
92122-60822 Stud |
92122-60822 |
US $1.31 |
