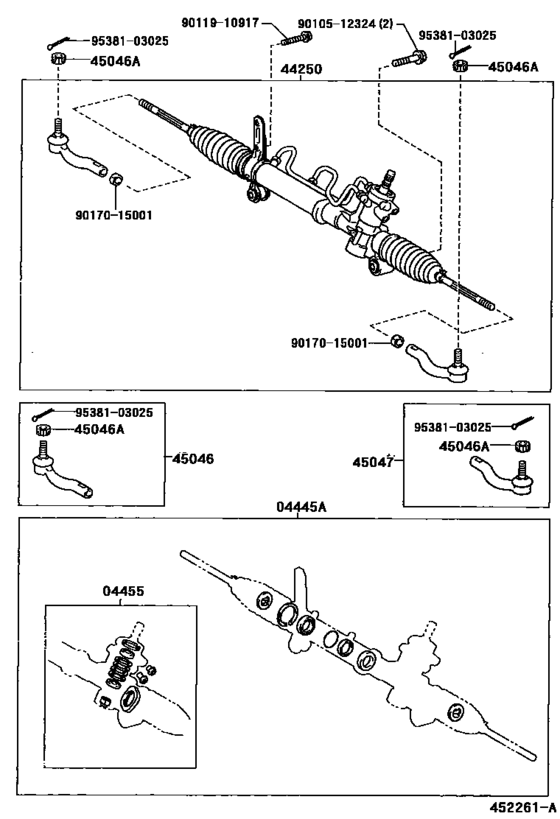

Front Steering Gear & Link ([05.2000 - 07.2003] (0005-0307)LHD) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-13010 Gasket Kit, Power Steering Gear(For Rack & Pinion)[07.2003 -] ACA2#,CLA2#,ZCA2# |
04445-13010 |
from US $80.72 |
||
|
04445A
|
04445A
04445-42030 Gasket Kit, Power Steering Gear(For Rack & Pinion)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
04445-42030 |
from US $80.72 |
||
|
04455
|
04455
04455-42010 Gasket Kit, Power Steering Control Valve Overhole[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
04455-42010 |
US $80.72 |
||
|
04455
|
04455
04455-44010 Gasket Kit, Power Steering Control Valve Overhole[07.2003 -] ACA2#,CLA2#,ZCA2# |
04455-44010 |
US $43.51 |
||
|
44250
|
44250
44200-42120 Gear Assy, Power Steering(For Rack & Pinion)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..LHD |
44200-42120 |
US $1,543.36 |
||
|
45046
|
45046
45046-49095 End Sub-Assy, Tie Rod, Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
45046-49095 |
from US $48.77 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
90171-12028 |
from US $1.35 |
||
|
45047
|
45047
45047-49025 End Sub-Assy, Tie Rod, Lh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
45047-49025 |
from US $48.48 |
||
|
9010512324
|
9010512324
90105-12324
New Genuine Part
|
90105-12324 |
— | ||
| replacement | |||||
|
9010512324
|
9010512324
90105-12266 BOLT WASHER BASED |
90105-12266 |
US $6.99 |
||
|
9011910917
|
9011910917
90119-10917
New Genuine Part
|
90119-10917 |
— | ||
|
9017015001
|
9017015001
90170-15001 Nut, Rack End Lock |
90170-15001 |
from US $1.46 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.78 |
||
