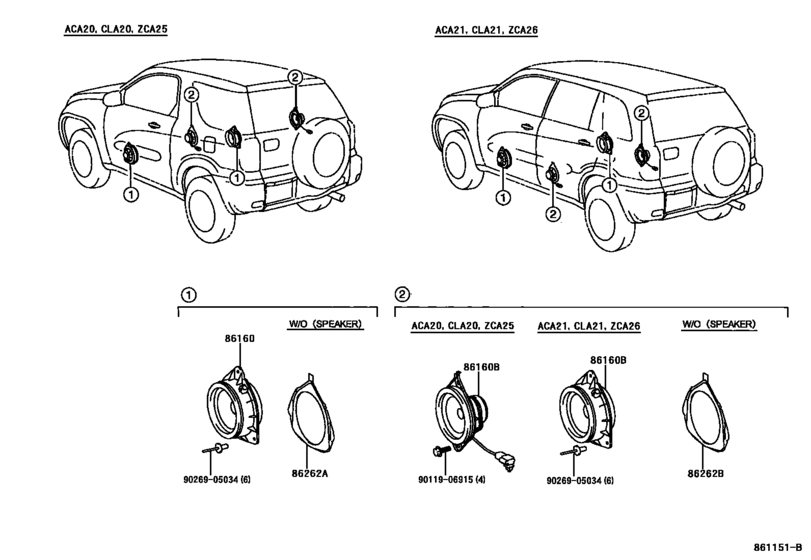

Speaker ([05.2000 - 07.2003] (0005-0307)) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86160
|
86160
86160-42070 Speaker Assy, Front No.1[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
86160-42070 |
US $163.07 |
||
| replacement | |||||
|
86160
|
86160
86160-42110 Speaker Assy, Front No.1[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
86160-42110 |
US $163.07 |
||
|
86160
|
86160
86160-42110 Speaker Assy, Front No.1[07.2004 -] ACA2#,CLA2#,ZCA2# |
86160-42110 |
US $163.07 |
||
|
86160B
|
86160B
86160-42080 Speaker Assy, Rear[05.2000 - 07.2003] ACA20,CLA20,ZCA25 |
86160-42080 |
US $163.07 |
||
|
86262A
|
86262A
86262-17010 Cover, Speaker, Front[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN |
86262-17010 |
US $8.88 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9026905034
|
9026905034
90269-05034 RIVET |
90269-05034 |
from US $1.21 |
||
