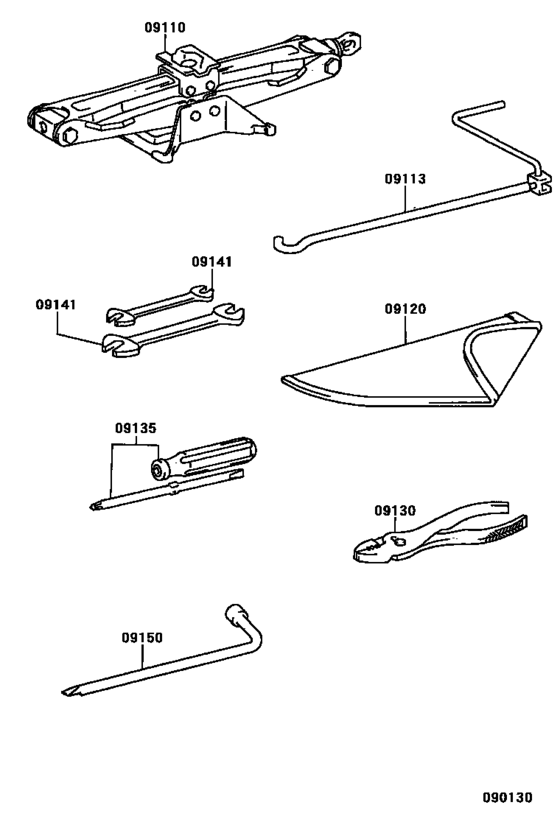

Standard Tool ([05.2000 - ] (0005- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
09110
|
09110
09110-42030
Jack Assy
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN |
09110-42030 |
— | ||
|
09113
|
09113
09113-42010 Handle, Jack[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
09113-42010 |
US $13.85 |
||
|
09120
|
09120
09120-30050 Bag, Tool[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
09120-30050 |
US $8.01 |
||
|
09135
|
09135
99915-10700 Driver, ScrewNo Toyota stamp [05.2000 - 07.2003] ACA2#..GCC,GEN;ACA2#,CLA2#,ZCA2#..LHD..EUR |
99915-10700 |
from US $8.24 |
||
| replacement | |||||
|
09135
|
09135
90089-99009 Driver, Screw (ATC) (Thailand)Screw Driver (ATC) [05.2000 - 07.2003] ACA2#..GCC,GEN;ACA2#,CLA2#,ZCA2#..LHD..EUR |
90089-99009 |
from US $2.34 |
||
|
09141
|
09141
99914-10810 Spanner (China)No Toyota stamp [05.2000 - 07.2003] ACA2#..GCC,GEN;ACA2#,CLA2#,ZCA2#..LHD..EUR 8 X 10 |
99914-10810 |
from US $4.30 |
||
| replacement | |||||
|
09141
|
09141
09141-0K030 Spanner (ATC) (Thailand)8x10 [05.2000 - 07.2003] ACA2#..GCC,GEN;ACA2#,CLA2#,ZCA2#..LHD..EUR 8 X 10 |
09141-0K030 |
from US $6.99 |
||
|
09150
|
09150
09150-40010 Wrench, Hub Nut Box[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
09150-40010 |
from US $19.32 |
||
| replacement | |||||
|
09150
|
09150
09033-1C100 WRENCH[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
09033-1C100 |
US $17.47 |
||
