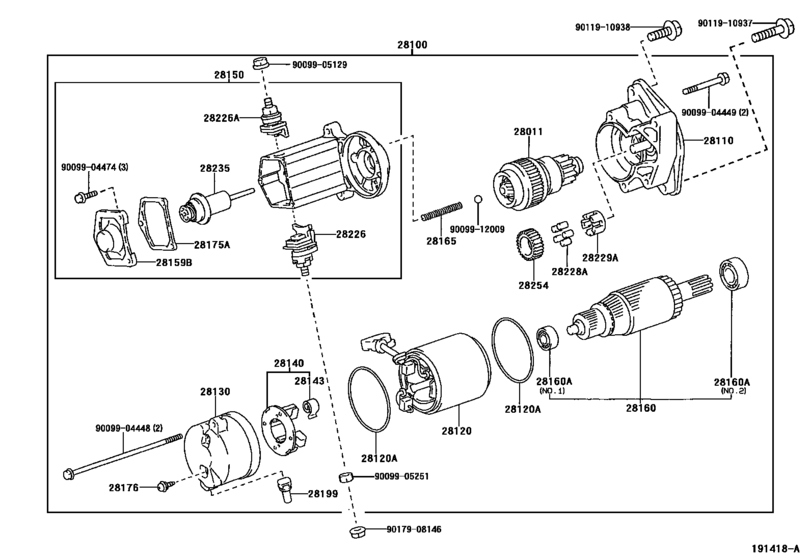

Starter ([05.2001 - 07.2003] 12V 1.4KW (0105-0307)1CDFTV) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-64020 Clutch Sub-Assy, Starter[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
28011-64020 |
US $203.84 |
||
|
28011
|
28011
28011-64130 Clutch Sub-Assy, Starter[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28011-64130 |
US $189.28 |
||
|
28100
|
28100
28100-64300 Starter Assy[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28100-64300 |
US $1,415.23 |
||
|
28100
|
28100
28100-64430 Starter Assy[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
28100-64430 |
US $1,994.72 |
||
|
28110
|
28110
28110-64170 Housing Assy, Starter Drive[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28110-64170 |
US $94.64 |
||
|
28110
|
28110
28115-64430
Housing Assy, Starter Drive
[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
28115-64430 |
— | ||
|
28120
|
28120
28120-55050
Yoke Assy, Starter
[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28120-55050 |
— | ||
|
28120
|
28120
28120-64040
Yoke Assy, Starter
[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
28120-64040 |
— | ||
|
28120A
|
28120A
90099-14064 Rubber(For Starter Yoke)[05.2000 - 07.2003] 1AZFE,1CDFTV..ACA2#,CLA2# 12V 1.2KW,1.4KW |
90099-14064 |
from US $3.67 |
||
|
28120A
|
28120A
90099-64040
Rubber(For Starter Yoke)
[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
90099-64040 |
— | ||
|
28130
|
28130
28130-64130
Frame Assy, Starter Commutator End
[05.2001 - 07.2003] 1CDFTV..CLA2# |
28130-64130 |
— | ||
|
28140
|
28140
28140-64040 Holder Assy, Starter Brush[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
28140-64040 |
from US $35.49 |
||
|
28140
|
28140
28140-64130
Holder Assy, Starter Brush
[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28140-64130 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
90099-17112 |
— | ||
|
28143
|
28143
90099-17115
Spring, Starter Brush
[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
90099-17115 |
— | ||
|
28150
|
28150
28150-64341 Switch Assy, Magnet Starter[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28150-64341 |
US $154.34 |
||
|
28150
|
28150
28150-64430 Switch Assy, Magnet StarterMAGNET STARTER [05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
28150-64430 |
US $311.58 |
||
|
28159B
|
28159B
28159-10040
Cover, Magnet Switch
[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
28159-10040 |
— | ||
|
28159B
|
28159B
28159-55050
Cover, Starter Protector
[05.2000 - 07.2003] 1AZFE,1CDFTV..ACA2#,CLA2# 12V 1.2KW,1.4KW |
28159-55050 |
— | ||
|
28160
|
28160
28160-64041 Armature Assy, Starter[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
28160-64041 |
US $242.86 |
||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28160-74070 |
— | ||
|
28160A
|
28160A
28253-54070 Bearing, Starter Armature[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW,NO.1 |
28253-54070 |
US $16.92 |
||
|
28160A
|
28160A
90099-10143
Bearing, Starter Armature
[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW,NO.2 |
90099-10143 |
— | ||
|
28160A
|
28160A
90099-10196 Bearing, Starter Armature[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW,NO.1 |
90099-10196 |
from US $5.59 |
||
|
28160A
|
28160A
90099-10197 Bearing, Starter Armature[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW,NO.2 |
90099-10197 |
from US $6.64 |
||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
28165-26040 |
— | ||
|
28165
|
28165
28165-76070
Spring, Starter Magnet Switch Return
[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28165-76070 |
— | ||
|
28175A
|
28175A
28175-10040
Gasket, Magnet Switch Cover
[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
28175-10040 |
— | ||
|
28175A
|
28175A
28175-55050 Gasket, Magnet Switch Cover[05.2000 - 07.2003] 1AZFE,1CDFTV..ACA2#,CLA2# 12V 1.2KW,1.4KW |
28175-55050 |
from US $1.67 |
||
|
28176
|
28176
90099-00270
Screw, Starter
[05.2000 - 07.2003] 1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2# |
90099-00270 |
— | ||
|
28199
|
28199
28199-46080 Cover, Starter End Frame[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
28199-46080 |
from US $2.97 |
||
|
28199
|
28199
28199-74110 Cover, Starter End Frame[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28199-74110 |
US $2.89 |
||
|
28226
|
28226
28226-64370 Starter Kit, Battery Terminal[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28226-64370 |
from US $6.63 |
||
|
28226
|
28226
28226-74300
Starter Kit, Battery Terminal
[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
28226-74300 |
— | ||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
28226-72010 |
from US $10.22 |
||
|
28226A
|
28226A
28226-74070 Starter Kit, Battery Terminal[05.2000 - 07.2003] 1AZFE,1CDFTV..ACA2#,CLA2# 12V 1.2KW,1.4KW |
28226-74070 |
from US $8.39 |
||
|
28228A
|
28228A
28228-26040
Roller, Starter Idle Gear Clutch
[05.2001 - 07.2003] 1CDFTV..CLA2# |
28228-26040 |
— | ||
|
28229A
|
28229A
28229-26040
Retainer, Starter Idle Gear
[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
28229-26040 |
— | ||
|
28229A
|
28229A
28229-74070 Retainer, Starter Idle Gear[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28229-74070 |
US $1.44 |
||
|
28235
|
28235
28235-35080 Plunger, Magnet Switch[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
28235-35080 |
from US $23.41 |
||
|
28235
|
28235
28235-55050 Plunger, Magnet Switch[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28235-55050 |
from US $20.27 |
||
|
28254
|
28254
28254-64040
Pinion, Starter Drive
[05.2001 - 07.2003] 1CDFTV..CLA2#..LHD 12V 2.2KW |
28254-64040 |
— | ||
|
28254
|
28254
28254-64130
Pinion, Starter Drive
[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28254-64130 |
— | ||
|
9009904448
|
9009904448
90099-04448
Bolt, Starter
|
90099-04448 |
— | ||
|
9009904449
|
9009904449
90099-04449
New Genuine Part
|
90099-04449 |
— | ||
|
9009904474
|
9009904474
90099-04474
New Genuine Part
|
90099-04474 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009905251
|
9009905251
90099-05251
New Genuine Part
|
90099-05251 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9011910937
|
9011910937
90119-10937 New Genuine Part |
90119-10937 |
US $2.33 |
||
|
9011910938
|
9011910938
90119-10938 New Genuine Part |
90119-10938 |
US $1.40 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
