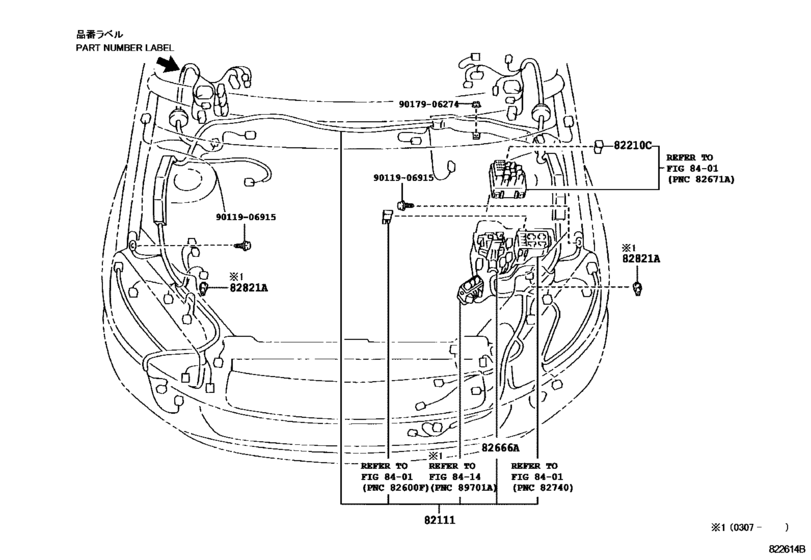

Wiring & Clamp ([05.2000 - ] ENGINE ROOM (0005- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-42C50 Wire, Engine Room MainENGINE ROOM MAIN [07.2003 - 12.2004] CLA2#..LHD PART NUMBER LABEL=82111-42C50 |
82111-42C50 |
US $1,191.01 |
||
|
82111
|
82111
82111-42C51 Wire, Engine Room MainENGINE ROOM MAIN [12.2004 -] CLA2#..LHD PART NUMBER LABEL=82111-42C51 |
82111-42C51 |
US $1,356.99 |
||
|
82111
|
82111
82111-42C60 Wire, Engine Room MainENGINE ROOM MAIN [07.2003 - 12.2004] CLA2#..LHD PART NUMBER LABEL=82111-42C60 |
82111-42C60 |
US $1,356.99 |
||
|
82111
|
82111
82111-42C61 Wire, Engine Room MainENGINE ROOM MAIN [12.2004 -] CLA2#..LHD PART NUMBER LABEL=82111-42C61 |
82111-42C61 |
US $1,528.80 |
||
|
82111
|
82111
82111-42C70 Wire, Engine Room MainENGINE ROOM MAIN [07.2003 - 12.2004] CLA2#..LHD PART NUMBER LABEL=82111-42C70 |
82111-42C70 |
US $1,528.80 |
||
|
82111
|
82111
82111-42C71 Wire, Engine Room MainENGINE ROOM MAIN [12.2004 -] CLA2#..LHD PART NUMBER LABEL=82111-42C71 |
82111-42C71 |
US $1,688.96 |
||
|
82111
|
82111
82111-42C80 Wire, Engine Room MainENGINE ROOM MAIN [07.2003 - 08.2004] CLA20..LHD PART NUMBER LABEL=82111-42C80 |
82111-42C80 |
US $1,356.99 |
||
|
82111
|
82111
82111-42C90 Wire, Engine Room MainENGINE ROOM MAIN [07.2003 - 12.2004] CLA2#..LHD PART NUMBER LABEL=82111-42C90 |
82111-42C90 |
US $1,528.80 |
||
|
82111
|
82111
82111-42C91 Wire, Engine Room MainENGINE ROOM MAIN [12.2004 -] CLA2#..LHD PART NUMBER LABEL=82111-42C91 |
82111-42C91 |
US $1,528.80 |
||
|
82111
|
82111
82111-42D00 Wire, Engine Room MainENGINE ROOM MAIN [07.2003 - 12.2004] CLA2#..LHD PART NUMBER LABEL=82111-42D00 |
82111-42D00 |
US $1,191.01 |
||
|
82111
|
82111
82111-42D01 Wire, Engine Room MainENGINE ROOM MAIN [12.2004 -] CLA2#..LHD PART NUMBER LABEL=82111-42D01 |
82111-42D01 |
US $1,688.96 |
||
|
82111
|
82111
82111-4A270 Wire, Engine Room MainENGINE ROOM MAIN [05.2001 - 07.2003] CLA2#..LHD PART NUMBER LABEL=82111-4A270 |
82111-4A270 |
US $1,355.54 |
||
|
82111
|
82111
82111-4A280 Wire, Engine Room MainENGINE ROOM MAIN [05.2001 - 07.2003] CLA2#..LHD PART NUMBER LABEL=82111-4A280 |
82111-4A280 |
US $1,528.80 |
||
|
82111
|
82111
82111-4A290 Wire, Engine Room MainENGINE ROOM MAIN [05.2001 - 07.2003] CLA2#..LHD PART NUMBER LABEL=82111-4A290 |
82111-4A290 |
US $1,528.80 |
||
|
82111
|
82111
82111-4A300 Wire, Engine Room MainENGINE ROOM MAIN [05.2001 - 07.2003] CLA2#..LHD PART NUMBER LABEL=82111-4A300 |
82111-4A300 |
US $1,355.54 |
||
|
82210C
|
82210C
90982-08280 Fusible Link[07.2003 -] ACA2#,CLA2#,ZCA2# 30A,TERMINAL:FEMALE |
90982-08280 |
from US $3.88 |
||
|
82210C
|
82210C
90982-08281 Fusible Link[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# 40A,TERMINAL:FEMALE |
90982-08281 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08282 Fusible Link[07.2003 -] CLA2# 50A,TERMINAL:FEMALE |
90982-08282 |
from US $7.88 |
||
|
82666A
|
82666A
82666-42090 Holder, Connector No.2[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
82666-42090 |
US $32.76 |
||
|
82821A
|
82821A
82821-12360 Cover, Connector[07.2003 -] ACA2#,CLA2#,ZCA2# |
82821-12360 |
US $1.75 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
