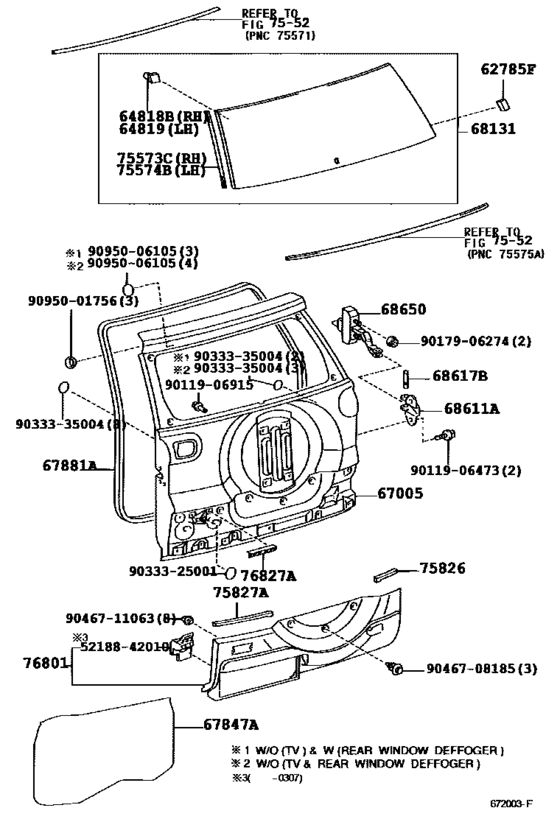

Back Door Panel & Glass ([05.2000 - ] (0005- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62785F
|
62785F
62785-16030 Spacer Quarter Panel, No.1[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
62785-16030 |
from US $2.07 |
||
|
64818B
|
64818B
64818-42020 Spacer, Back Door Glass, No.1[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
64818-42020 |
US $3.14 |
||
|
64819
|
64819
64819-42020 Spacer, Back Window Glass, No.2[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
64819-42020 |
US $3.14 |
||
|
67005
|
67005
67005-42270 Panel Sub-Assy, Back DoorBACK DOOR [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..RHD..EUR |
67005-42270 |
US $921.65 |
||
| replacement | |||||
|
67005
|
67005
67005-42271 Panel Sub-Assy, Back DoorBACK DOOR [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..RHD..EUR |
67005-42271 |
from US $905.05 |
||
|
67005
|
67005
67005-42271 Panel Sub-Assy, Back DoorBACK DOOR [06.2004 - 11.2005] ACA20,21,CLA2#,ZCA2#..RHD..EUR |
67005-42271 |
from US $905.05 |
||
|
67847A
|
67847A
67847-42020 Cover, Back Door Service Hole[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
67847-42020 |
US $17.47 |
||
|
67881A
|
67881A
67881-42030 Weatherstrip, Back Door[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
67881-42030 |
US $173.26 |
||
|
68131
|
68131
68105-42020
Glass, Back Door
[05.2000 - 11.2002] ACA2#,CLA2#,ZCA2# *EHTT,T=3.1,GREEN |
68105-42020 |
— | ||
| replacement | |||||
|
68131
|
68131
68105-42060 Glass, Back Door[05.2000 - 11.2002] ACA2#,CLA2#,ZCA2# *EHTT,T=3.1,GREEN |
68105-42060 |
US $754.21 |
||
|
68131
|
68131
68105-42021 Glass, Back Door[11.2002 - 07.2003] ACA2#,CLA2#,ZCA2# *EHTT,T=3.1,GREEN |
68105-42021 |
US $752.75 |
||
| replacement | |||||
|
68131
|
68131
68105-42060 Glass, Back Door[11.2002 - 07.2003] ACA2#,CLA2#,ZCA2# *EHTT,T=3.1,GREEN |
68105-42060 |
US $754.21 |
||
|
68131
|
68131
68105-42060 Glass, Back Door[07.2003 -] ACA2#,CLA2#,ZCA2# *UVCEHTT,T=3.1,GREEN |
68105-42060 |
US $754.21 |
||
|
68131
|
68131
68105-42080 Glass, Back Door[07.2003 -] ACA20,21,CLA2#,ZCA2#..EUR *EHTT,T=3.1,C.GREEN |
68105-42080 |
US $774.59 |
||
|
68611A
|
68611A
68611-42020
Base, Back Door Check
[05.2000 - 09.2002] ACA2#,CLA2#,ZCA2# |
68611-42020 |
— | ||
| replacement | |||||
|
68611A
|
68611A
68611-42021 Base, Back Door Check[05.2000 - 09.2002] ACA2#,CLA2#,ZCA2# |
68611-42021 |
US $8.04 |
||
|
68611A
|
68611A
68611-42021 Base, Back Door Check[09.2002 - 07.2003] ACA2#,CLA2#,ZCA2# |
68611-42021 |
US $8.04 |
||
|
68617B
|
68617B
68617-20020 Pin, Front Door Check[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
68617-20020 |
from US $3.33 |
||
|
68650
|
68650
68650-42040 Check Assy, Back Door[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
68650-42040 |
from US $74.93 |
||
|
68650
|
68650
68650-42050 Check Assy, Back DoorBACK DOOR [05.2000 - 01.2003] ACA2#,CLA2#,ZCA2#..RHD..EUR ENGLAND SPEC |
68650-42050 |
US $60.13 |
||
| replacement | |||||
|
68650
|
68650
68650-42051 Check Assy, Back DoorBACK DOOR [05.2000 - 01.2003] ACA2#,CLA2#,ZCA2#..RHD..EUR ENGLAND SPEC |
68650-42051 |
US $60.13 |
||
|
68650
|
68650
68650-42051 Check Assy, Back DoorBACK DOOR [01.2003 - 07.2003] ACA2#,CLA2#,ZCA2#..RHD..EUR ENGLAND SPEC |
68650-42051 |
US $60.13 |
||
|
75573C
|
75573C
75573-42020 Moulding, Back Window, Outside[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
75573-42020 |
US $16.59 |
||
|
75574B
|
75574B
75573-42020 Moulding, Back Window, Outside[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
75573-42020 |
US $16.59 |
||
|
75826
|
75826
75826-42030 Pad, Back Door Outside Moulding, Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
75826-42030 |
US $5.10 |
||
|
75827A
|
75827A
75827-42030 Pad, Back Door Outside Moulding, Lh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
75827-42030 |
from US $4.37 |
||
|
76801
|
76801
76811-42905 Garnish Sub-Assy, Back Door, OutsideBACK DOOR, OUTSIDE [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..RHD..EUR W(REAR FOG LAMP = RH) |
76811-42905 |
US $479.02 |
||
|
76801
|
76801
76811-42906 Garnish Sub-Assy, Back Door, OutsideBACK DOOR, OUTSIDE [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR W(REAR FOG LAMP = LH) |
76811-42906 |
from US $326.43 |
||
|
76827A
|
76827A
76827-42010 Retainer, Back Door Garnish, No.2[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
76827-42010 |
US $21.84 |
||
|
5218842010
|
5218842010
52188-42010
Cushion, Rear Bumper Arm, Lh
|
52188-42010 |
— | ||
|
9011906473
|
9011906473
90119-06473 BOLTWWASHER |
90119-06473 |
US $1.25 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.29 |
||
|
9033335004
|
9033335004
90333-35004 Plate, Noise Control, No.1 |
90333-35004 |
US $1.25 |
||
|
9046708185
|
9046708185
90467-08185 Reinforcement, Front Spring Support, No.3 |
90467-08185 |
from US $0.88 |
||
|
9046711063
|
9046711063
90467-11063 Clip(For Rear Bumper Retainer) |
90467-11063 |
from US $1.09 |
||
|
9095001756
|
9095001756
90950-01756 PLUG, HOLE |
90950-01756 |
US $2.62 |
||
|
9095006105
|
9095006105
90950-06105 Seal, Front Door Front Lower Frame Cover |
90950-06105 |
US $1.97 |
||
