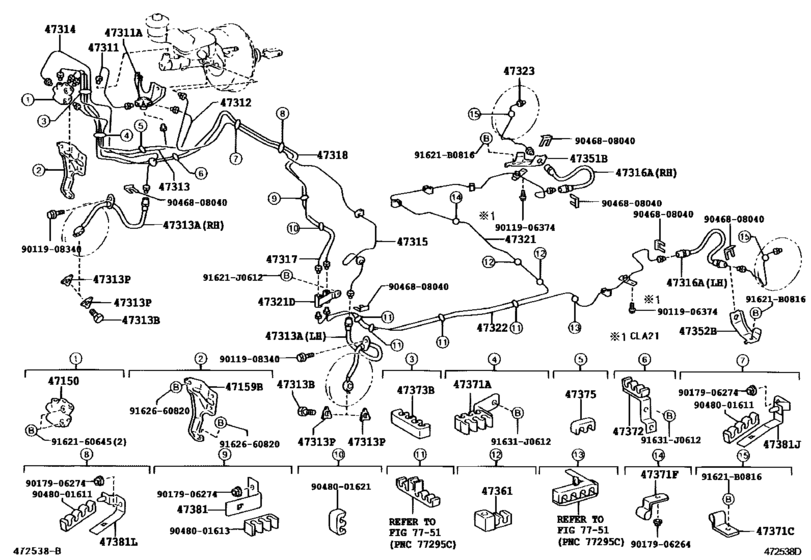

Brake Tube & Clamp ([05.2001 - ] (0105- )CLA2#..RHD) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47150
|
47150
47150-12240 Valve Assy, ProportioningPROPORTIONING [05.2000 - 07.2003] ACA20,CLA20,ZCA25 |
47150-12240 |
from US $206.35 |
||
|
47159B
|
47159B
47159-42010 Bracket, Proportioning & By-Pass ValvePROPORTIONING & BY-PASS VALVE [05.2001 - 07.2003] CLA2# |
47159-42010 |
US $17.91 |
||
|
47159B
|
47159B
47159-42011 Bracket, Proportioning & By-Pass ValvePROPORTIONING & BY-PASS VALVE [07.2003 -] CLA2# |
47159-42011 |
US $17.91 |
||
|
47311
|
47311
47311-42100 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..RHD |
47311-42100 |
US $7.57 |
||
|
47311A
|
47311A
90413-10171 Way(For Front Brake Tube)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..RHD |
90413-10171 |
US $18.20 |
||
|
47312
|
47312
47312-42120 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [05.2001 - 07.2003] CLA2#..RHD W(ABS) |
47312-42120 |
US $14.71 |
||
|
47312
|
47312
47312-42130 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [05.2001 - 07.2003] CLA2#..RHD |
47312-42130 |
US $12.67 |
||
|
47312
|
47312
47312-42240 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [07.2003 - 08.2004] CLA2#..RHD W(VSC) |
47312-42240 |
US $14.71 |
||
|
47313
|
47313
47313-42120 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [05.2001 - 07.2003] CLA2#..RHD W(ABS) |
47313-42120 |
US $10.05 |
||
|
47313
|
47313
47313-42130 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [05.2001 - 07.2003] CLA2#..RHD |
47313-42130 |
US $10.05 |
||
|
47313
|
47313
47313-42220 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [07.2003 - 08.2004] CLA2#..RHD W(ABS) |
47313-42220 |
US $12.67 |
||
|
47313
|
47313
47313-42240 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [07.2003 - 08.2004] CLA2#..RHD W(VSC) |
47313-42240 |
US $10.05 |
||
|
47313A
|
47313A
90947-02C54 Hose, Flexible, No.1(For Front)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# RH |
90947-02C54 |
US $26.03 |
||
|
47313A
|
47313A
90947-02C55 Hose, Flexible, No.1(For Front)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# LH |
90947-02C55 |
US $26.03 |
||
|
47313B
|
47313B
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
90401-10015 |
from US $3.58 |
||
|
47313P
|
47313P
47389-30010 Gasket(For Clutch Master Cylinder To Flexible Hose Tube)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
47389-30010 |
from US $1.19 |
||
|
47314
|
47314
47314-42080
Tube, Front Brake, No.4
[05.2001 - 07.2003] CLA2# |
47314-42080 |
— | ||
|
47314
|
47314
47314-42090 Tube, Front Brake, No.4FRONT BRAKE, NO.4 [07.2003 -] CLA2# |
47314-42090 |
US $14.71 |
||
|
47314
|
47314
47314-42100
Tube, Front Brake, No.4
[07.2003 -] ACA2#,CLA2#,ZCA2# W(ABS) |
47314-42100 |
— | ||
|
47314
|
47314
47314-42110 Tube, Front Brake, No.4[07.2003 -] ACA2#,CLA2#..ARL,EUR W(VSC) |
47314-42110 |
US $5.24 |
||
|
47314
|
47314
47314-42130 Tube, Front Brake, No.4FRONT BRAKE, NO.4 [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# W(ABS) |
47314-42130 |
US $14.71 |
||
|
47315
|
47315
47315-42120 Tube, Front Brake, No.5FRONT BRAKE, NO.5 [05.2001 - 07.2003] CLA2#..RHD W(ABS) |
47315-42120 |
US $32.03 |
||
|
47315
|
47315
47315-42130 Tube, Front Brake, No.5FRONT BRAKE, NO.5 [05.2001 - 07.2003] CLA2#..RHD |
47315-42130 |
US $26.94 |
||
|
47315
|
47315
47315-42160 Tube, Front Brake, No.5FRONT BRAKE, NO.5 [07.2003 -] CLA2#..RHD W(VSC) |
47315-42160 |
US $32.03 |
||
|
47316A
|
47316A
90947-02C53 Hose, Flexible(For Rear Brake Tube)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
90947-02C53 |
US $20.74 |
||
|
47317
|
47317
47317-42080 Tube, Front Brake, No.7FRONT BRAKE, NO.7 [05.2001 - 07.2003] CLA2#..RHD W(ABS) |
47317-42080 |
US $26.94 |
||
|
47317
|
47317
47317-42090 Tube, Front Brake, No.7FRONT BRAKE, NO.7 [05.2001 - 07.2003] CLA2#..RHD |
47317-42090 |
US $26.94 |
||
|
47317
|
47317
47317-42150 Tube, Front Brake, No.7FRONT BRAKE, NO.7 [07.2003 - 08.2004] CLA2#..RHD W(VSC) |
47317-42150 |
US $26.94 |
||
|
47318
|
47318
47318-42080 Tube, Front Brake, No.8FRONT BRAKE, NO.8 [05.2001 - 07.2003] CLA2#..RHD W(ABS) |
47318-42080 |
US $26.94 |
||
|
47318
|
47318
47318-42090 Tube, Front Brake, No.8FRONT BRAKE, NO.8 [05.2001 - 07.2003] CLA2#..RHD |
47318-42090 |
US $26.94 |
||
|
47318
|
47318
47318-42150 Tube, Front Brake, No.8FRONT BRAKE, NO.8 [07.2003 - 08.2004] CLA2#..RHD W(VSC) |
47318-42150 |
US $26.94 |
||
|
47321
|
47321
47321-42130
Tube, Rear Brake, No.1
[05.2001 - 07.2003] CLA20 |
47321-42130 |
— | ||
|
47321D
|
47321D
90412-10220 Way(For Front Brake Tube)[05.2001 - 07.2003] CLA2# |
90412-10220 |
US $13.10 |
||
|
47322
|
47322
47322-42100
Tube, Rear Brake, No.2
[05.2001 - 07.2003] CLA20 |
47322-42100 |
— | ||
|
47323
|
47323
47323-42040
Tube, Rear Brake, No.3
[05.2000 - 08.2002] ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN W(REAR DRUM BRAKE) |
47323-42040 |
— | ||
|
47323
|
47323
47323-42041 Tube, Rear Brake, No.3[08.2002 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN W(REAR DRUM BRAKE) |
47323-42041 |
US $12.67 |
||
|
47323
|
47323
47323-42050 Tube, Rear Brake, No.3[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
47323-42050 |
US $12.23 |
||
|
47351B
|
47351B
47351-42060 Bracket, Flexible Hose, No.1[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
47351-42060 |
US $10.34 |
||
|
47352B
|
47352B
47352-42060 Bracket, Flexible Hose, No.2[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
47352-42060 |
US $10.34 |
||
|
47361
|
47361
77295-42050 Grommet, Fuel Tube[05.2001 - 07.2003] CLA2# |
77295-42050 |
US $6.42 |
||
|
47371A
|
47371A
47371-42200
Clamp, Brake Tube, No.1
[05.2001 - 07.2003] CLA2# |
47371-42200 |
— | ||
|
47371C
|
47371C
90461-08726 Clamp, Brake Tube, No.7[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
90461-08726 |
US $2.77 |
||
|
47371F
|
47371F
90461-08715 Clamp, Brake Tube, No.6[05.2001 - 07.2003] CLA2# |
90461-08715 |
US $3.40 |
||
|
47372
|
47372
47371-42250 Clamp, Brake Tube, No.3[05.2001 - 07.2003] CLA2#..RHD |
47371-42250 |
US $10.34 |
||
|
47373B
|
47373B
90464-00704 Clamp, Brake Tube, No.3[05.2001 - 07.2003] CLA2# |
90464-00704 |
US $2.77 |
||
|
47375
|
47375
90949-01972 Grommet, No.1(For Front Brake Tube)[05.2000 - 07.2003] CLA2#..RHD;ACA2#,ZCA2#..LHD |
90949-01972 |
US $1.46 |
||
|
47381
|
47381
47381-32040 Bracket, Brake Tube Clamp No.1BRAKE TUBE CLAMP NO.1 [05.2001 - 07.2003] CLA2#..RHD |
47381-32040 |
US $3.35 |
||
|
47381J
|
47381J
90949-02135 Bracket, Brake Tube Clamp, No.2BRAKE TUBE CLAMP, NO.2 [05.2001 - 07.2003] CLA2#..RHD |
90949-02135 |
US $4.80 |
||
|
47381L
|
47381L
90949-02136 Bracket, Brake Tube Clamp, No.3BRAKE TUBE CLAMP, NO.3 [05.2001 - 07.2003] CLA2#..RHD |
90949-02136 |
US $4.22 |
||
|
47381L
|
47381L
90949-02152 Bracket, Brake Tube Clamp, No.3BRAKE TUBE CLAMP, NO.3 [09.2004 -] CLA2#..RHD |
90949-02152 |
US $5.24 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9011906374
|
9011906374
90119-06374
BOLT
|
90119-06374 |
— | ||
| replacement | |||||
|
9011906374
|
9011906374
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $1.08 |
||
|
9011908340
|
9011908340
90119-08340 New Genuine Part |
90119-08340 |
US $2.48 |
||
| replacement | |||||
|
9011908340
|
9011908340
90119-08200 BOLT |
90119-08200 |
from US $2.51 |
||
|
9017906264
|
9017906264
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.84 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046808040
|
9046808040
90468-08040 CLIP |
90468-08040 |
from US $1.40 |
||
|
9048001611
|
9048001611
90480-01611
New Genuine Part
|
90480-01611 |
— | ||
|
9048001613
|
9048001613
90480-01613 New Genuine Part |
90480-01613 |
US $4.22 |
||
|
9048001621
|
9048001621
90480-01621 Grommet(For Front Brake Tube) |
90480-01621 |
US $1.97 |
||
|
9162160645
|
9162160645
91621-60645 New Genuine Part |
91621-60645 |
US $2.18 |
||
|
9162660820
|
9162660820
91626-60820 BOLT WWASHER |
91626-60820 |
US $1.75 |
||
| replacement | |||||
|
9162660820
|
9162660820
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
