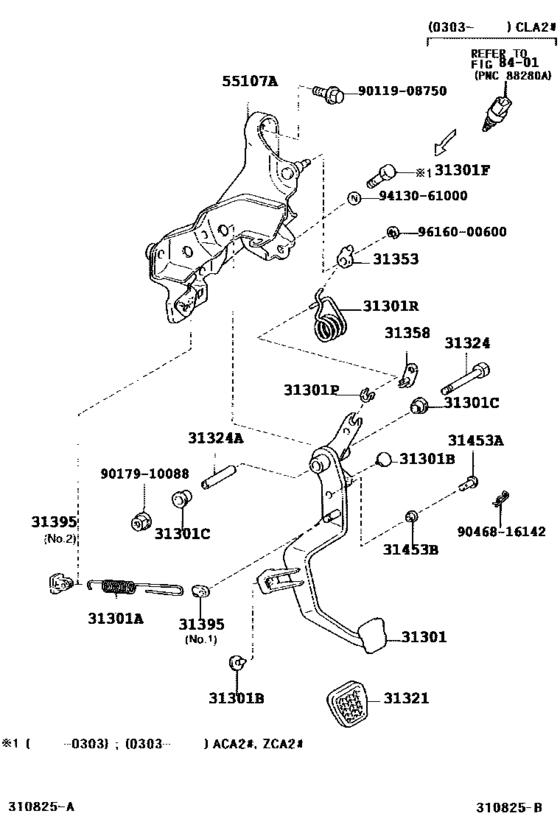

Clutch Pedal & Flexible Hose ([05.2000 - ] (0005- )MTM) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-42050 Pedal Sub-Assy, ClutchCLUTCH [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..RHD..MTM |
31301-42050 |
US $33.63 |
||
| replacement | |||||
|
31301
|
31301
31301-42040 Pedal Sub-Assy, Clutch[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..RHD..MTM |
31301-42040 |
US $33.63 |
||
|
31301A
|
31301A
90905-07033 Spring(For Clutch Pedal)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM |
90905-07033 |
US $3.06 |
||
|
31301B
|
31301B
90541-06036 Cushion, No.1(For Clutch Pedal)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM |
90541-06036 |
from US $0.94 |
||
| replacement | |||||
|
31301B
|
31301B
90541060361
CUSHION
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM |
90541060361 |
— | ||
|
31301C
|
31301C
90386-13015 Bush(For Clutch Pedal)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM |
90386-13015 |
from US $0.64 |
||
|
31301F
|
31301F
90101-10369 Bolt(For Clutch Pedal Stopper)[05.2000 - 03.2003] ACA2#,CLA2#,ZCA2#..MTM |
90101-10369 |
from US $1.31 |
||
|
31301P
|
31301P
90389-06055 Bush(For Clutch Pedal Turnover)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM |
90389-06055 |
from US $1.79 |
||
|
31301R
|
31301R
90949-03113
Spring, Compression(For Turn Over Spring Seat)
[05.2001 - 07.2003] CLA2#..RHD |
90949-03113 |
— | ||
|
31321
|
31321
31321-52010 Pad, Brake Pedal[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM |
31321-52010 |
from US $1.99 |
||
|
31324
|
31324
90101-10015 Shaft, Clutch Pedal[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM |
90101-10015 |
from US $1.07 |
||
| replacement | |||||
|
31324
|
31324
90101100151
Bolt, Hexagon
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM |
90101100151 |
— | ||
|
31324A
|
31324A
90387-10003 Collar, Clutch Pedal Shaft[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM |
90387-10003 |
from US $3.94 |
||
|
31353
|
31353
31353-35010 Holder, Clutch Pedal Spring[05.2001 - 07.2003] CLA2#..RHD |
31353-35010 |
from US $7.02 |
||
|
31358
|
31358
31358-42010 Cap, Over Center Spring[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM |
31358-42010 |
US $7.71 |
||
|
31395
|
31395
31395-33010 Hook, Pedal Spring[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM NO.1 |
31395-33010 |
US $1.51 |
||
|
31395
|
31395
31395-33020 Hook, Pedal Spring[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM NO.2 |
31395-33020 |
US $1.10 |
||
|
31453A
|
31453A
90249-08018 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM L=29.5 |
90249-08018 |
from US $2.20 |
||
|
31453B
|
31453B
90386-08036 Bush(For Clutch Master Cylinder Push Rod Clevis)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM |
90386-08036 |
US $2.15 |
||
|
55107A
|
55107A
55107-42040 Support Sub-Assy, Clutch PedalCLUTCH PEDAL [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..RHD..MTM |
55107-42040 |
US $45.43 |
||
|
9011908750
|
9011908750
90119-08750 BOLT WWASHER |
90119-08750 |
US $2.87 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.82 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.76 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
||
