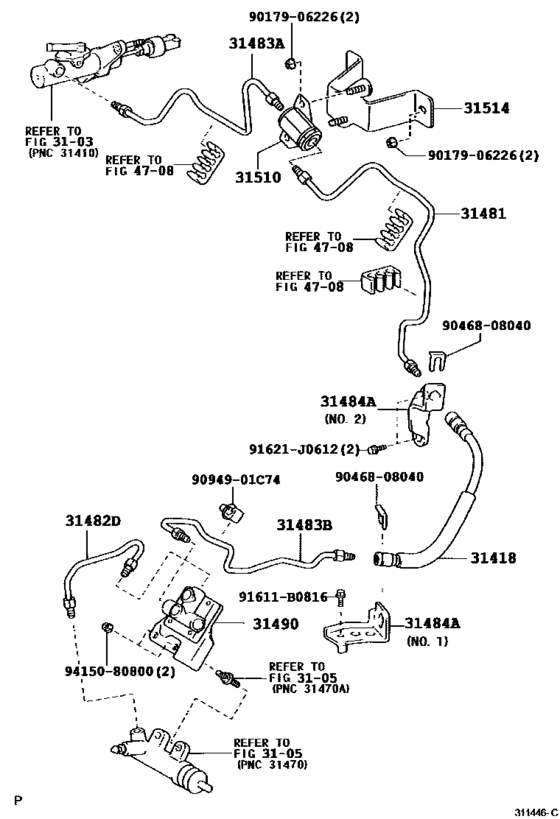

Clutch Pedal & Flexible Hose ([08.2004 - ] (0408- )CLA2#..RHD) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31418
|
31418
90947-02D01
Hose, Clutch
[05.2001 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM |
90947-02D01 |
— | ||
|
31481
|
31481
31481-42070 Tube, Clutch Master Cylinder To Flexible HoseCLUTCH MASTER CYLINDER TO FLEXIBLE HOSE [05.2001 - 07.2003] CLA2#..RHD |
31481-42070 |
US $10.48 |
||
|
31481
|
31481
31485-42011 Tube, Clutch Master Cylinder To Flexible HoseCLUTCH MASTER CYLINDER TO FLEXIBLE HOSE [09.2004 -] CLA2#..RHD |
31485-42011 |
US $11.36 |
||
|
31482D
|
31482D
31482-42040
Tube, Clutch Release Cylinder To Accumulator
[05.2001 - 07.2003] CLA2# |
31482-42040 |
— | ||
|
31483A
|
31483A
31483-42051 Tube, Clutch Master Cylinder To OrificeCLUTCH MASTER CYLINDER TO ORIFICE [09.2004 -] CLA2#..RHD |
31483-42051 |
US $9.46 |
||
|
31483B
|
31483B
31483-42010 Tube, Accumulator To Flexible HoseACCUMULATOR TO FLEXIBLE HOSE [05.2001 - 07.2003] CLA2# |
31483-42010 |
US $11.71 |
||
|
31484A
|
31484A
31484-42060 Bracket, Flexible Hose, No.1(For Clutch)FLEXIBLE HOSE, NO.1(FOR CLUTCH) [05.2001 - 07.2003] CLA2# NO.2 |
31484-42060 |
US $12.67 |
||
|
31484A
|
31484A
31484-42070 Bracket, Flexible Hose, No.1(For Clutch)FLEXIBLE HOSE, NO.1(FOR CLUTCH) [05.2001 - 07.2003] CLA2# NO.1 |
31484-42070 |
US $9.61 |
||
|
31490
|
31490
31490-28110 Accumulator Assy, ClutchCLUTCH [05.2001 - 07.2003] CLA2# |
31490-28110 |
US $95.12 |
||
|
31510
|
31510
31510-42030
Orifice Assy, Clutch
[08.2004 -] CLA2#..RHD |
31510-42030 |
— | ||
|
31514
|
31514
31514-42010 Bracket, Clutch OrificeCLUTCH ORIFICE [09.2004 -] CLA2#..RHD |
31514-42010 |
US $18.35 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9094901C74
|
9094901C74
90949-01C74 Clamp, Brake Tube, No.8 |
90949-01C74 |
US $3.20 |
||
|
9017906226
|
9017906226
90179-06226
Nut (For Rear Wiper Arm Setting)
|
90179-06226 |
— | ||
|
9046808040
|
9046808040
90468-08040 CLIP |
90468-08040 |
from US $1.40 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.78 |
