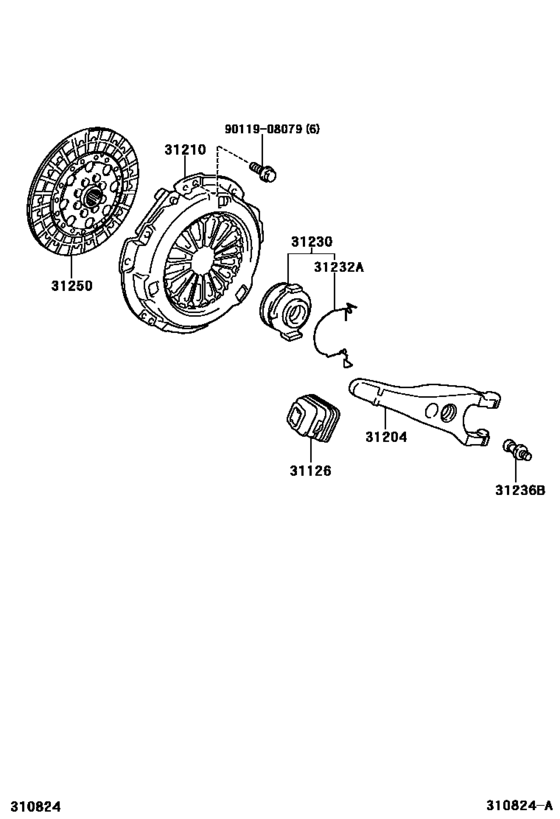

Clutch & Release Fork ([05.2001 - ] (0105- )CLA2#) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20080 Boot, Clutch Release Fork[05.2001 - 07.2003] CLA2# |
31126-20080 |
from US $12.09 |
||
|
31204
|
31204
31204-20130
Fork Sub-Assy, Clutch Release
[05.2001 - 08.2002] CLA2# |
31204-20130 |
— | ||
| replacement | |||||
|
31204
|
31204
31204-20131 Fork Sub-Assy, Clutch ReleaseCLUTCH RELEASE [05.2001 - 08.2002] CLA2# |
31204-20131 |
US $82.99 |
||
|
31204
|
31204
31204-20131 Fork Sub-Assy, Clutch ReleaseCLUTCH RELEASE [08.2002 - 07.2003] CLA2# |
31204-20131 |
US $82.99 |
||
|
31210
|
31210
31210-20371 Cover Assy, ClutchCLUTCH [05.2001 - 07.2003] CLA2# |
31210-20371 |
US $173.26 |
||
| replacement | |||||
|
31210
|
31210
31210-20372 Cover Assy, Clutch[05.2001 - 07.2003] CLA2# |
31210-20372 |
from US $173.26 |
||
|
31210
|
31210
31210-20373
Cover Assy, Clutch
[09.2004 - 11.2005] CLA2# |
31210-20373 |
— | ||
|
31230
|
31230
31230-20191 Bearing Assy, Clutch Release[05.2001 - 07.2003] CLA2# |
31230-20191 |
from US $30.58 |
||
|
31232A
|
31232A
31232-20031 Clip, Release Bearing Hub[05.2001 - 07.2003] CLA2# |
31232-20031 |
from US $2.87 |
||
|
31236B
|
31236B
31236-20080
Support, Release Fork
[05.2001 - 07.2003] CLA2# |
31236-20080 |
— | ||
|
31250
|
31250
31250-20351 Disc Assy, ClutchCLUTCH [05.2001 - 06.2002] CLA2# |
31250-20351 |
US $151.42 |
||
| replacement | |||||
|
31250
|
31250
31250-20353 Disc Assy, ClutchCLUTCH [05.2001 - 06.2002] CLA2# |
31250-20353 |
from US $65.29 |
||
|
31250
|
31250
31250-20352 Disc Assy, ClutchCLUTCH [06.2002 - 07.2003] CLA2# |
31250-20352 |
US $131.04 |
||
| replacement | |||||
|
31250
|
31250
31250-20353 Disc Assy, ClutchCLUTCH [06.2002 - 07.2003] CLA2# |
31250-20353 |
from US $65.29 |
||
|
31250
|
31250
31250-20353 Disc Assy, ClutchCLUTCH [11.2003 -] CLA2# |
31250-20353 |
from US $65.29 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
