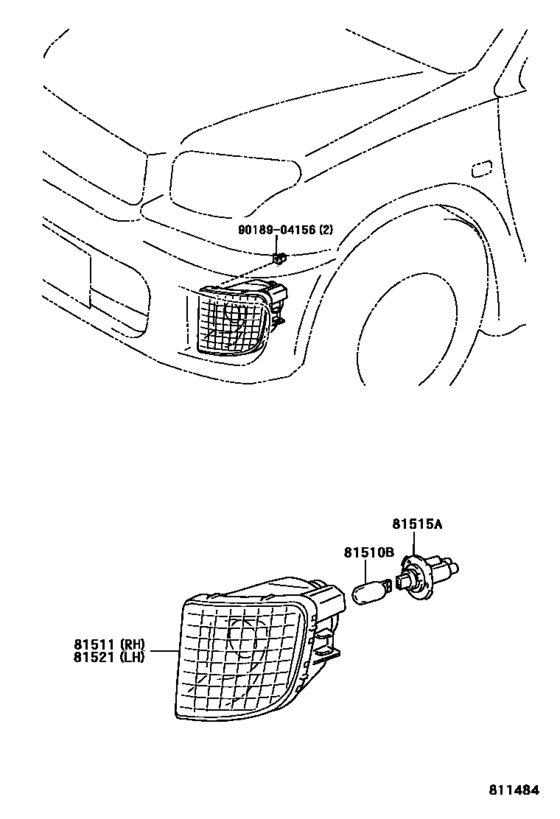

Front Turn Signal Lamp ([05.2000 - ] W/O(FOG LAMP) (0005- )ACA20,21,CLA2#,ZCA2#) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81510B
|
81510B
90981-11047 Bulb (For Front Turn Signal Lamp)[04.2001 - 07.2003] ACA2#,CLA2#,ZCA2# 12V 21W,W(FOG LAMP) |
90981-11047 |
US $3.20 |
||
| replacement | |||||
|
81510B
|
81510B
90981-13043 Bulb (12V 21W)[04.2001 - 07.2003] ACA2#,CLA2#,ZCA2# 12V 21W,W(FOG LAMP) |
90981-13043 |
from US $3.24 |
||
|
81510B
|
81510B
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# 12V 21W,AMBER |
90981-15011 |
from US $4.60 |
||
|
81511
|
81511
81511-42050 Lens, Front Turn Signal Lamp, Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
81511-42050 |
US $84.45 |
||
|
81511
|
81511
81511-42060 Lens, Front Turn Signal Lamp, Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# W(FOG LAMP) |
81511-42060 |
US $94.64 |
||
|
81515A
|
81515A
81515-42050 Plug Assy, Front Turn Signal Lamp[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
81515-42050 |
from US $10.41 |
||
|
81515A
|
81515A
90075-99080 Cover, Fog Lamp[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# W(FOG LAMP) |
90075-99080 |
from US $6.05 |
||
|
81521
|
81521
81521-42050 Lens, Front Turn Signal Lamp, Lh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
81521-42050 |
US $84.45 |
||
|
81521
|
81521
81521-42060 Lens, Front Turn Signal Lamp, Lh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# W(FOG LAMP) |
81521-42060 |
from US $66.46 |
||
|
9018904156
|
9018904156
90189-04156 CLIP |
90189-04156 |
from US $2.33 |
||
