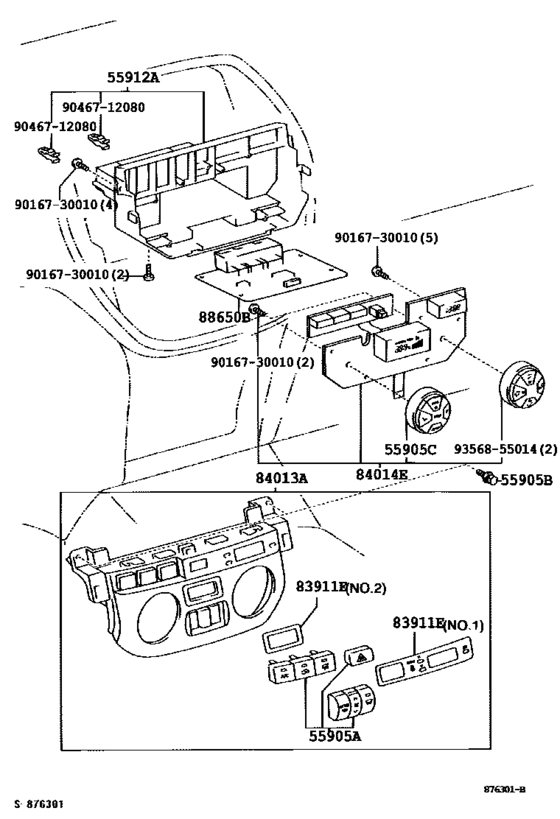

Heating & Air Conditioning - Control & Air Duct ([07.2003 - ] CONTROL PANEL--PUSH TYPE (0307- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55905A
|
55905A
55905-42030
Knob, Heater Control
[07.2003 -] ACA20,21,CLA2#,ZCA2#..EUR AUTO AIR CONDITIONER |
55905-42030 |
— | ||
|
55905A
|
55905A
55905-42050 Knob, Heater Control[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
55905-42050 |
US $10.48 |
||
|
55905A
|
55905A
55905-42170
Knob, Heater Control
[07.2003 -] ACA2#,CLA2#,ZCA2# |
55905-42170 |
— | ||
|
55905B
|
55905B
55905-42060
Knob, Heater Control, No.2
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
55905-42060 |
— | ||
|
55905B
|
55905B
55905-42180 Knob, Heater Control, No.2[07.2003 -] ACA2#,CLA2#,ZCA2# |
55905-42180 |
US $11.53 |
||
|
55905B
|
55905B
55911-42010 Knob, Heater Control, No.2[07.2003 -] ACA20,21,CLA2#,ZCA2#..EUR AUTO AIR CONDITIONER |
55911-42010 |
US $61.73 |
||
|
55905C
|
55905C
55911-42020
Knob, Heater Control, No.3
[07.2003 -] ACA20,21,CLA2#,ZCA2#..EUR |
55911-42020 |
— | ||
|
55912A
|
55912A
55912-42030 Housing, Heater Control[07.2003 -] ACA20,21,CLA2#,ZCA2#..EUR |
55912-42030 |
US $60.72 |
||
|
83911E
|
83911E
83911-42010 Ornament, Clock[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
83911-42010 |
US $10.92 |
||
|
83911E
|
83911E
83911-42020
Ornament, Clock
[07.2003 -] ACA20,21,CLA2#,ZCA2#..EUR NO.1; ACA2#,CLA2#,ZCA2# NO.1 |
83911-42020 |
— | ||
|
83911E
|
83911E
83911-42030 Ornament, Clock[07.2003 -] ACA20,21,CLA2#,ZCA2#..EUR NO.2 |
83911-42030 |
US $16.16 |
||
|
84013A
|
84013A
84013-42020 Panel Sub-Assy, Integration[07.2003 -] ACA20,21,CLA2#,ZCA2#..EUR |
84013-42020 |
US $163.07 |
||
|
84014E
|
84014E
84014-42050
Board Sub-Assy, Printed Wire Integration
[05.2001 - 07.2003] CLA2#..RHD |
84014-42050 |
— | ||
|
84014E
|
84014E
84014-42070 Board Sub-Assy, Printed Wire Integration[07.2003 -] ACA20,21,CLA2#,ZCA2#..EUR AUTO AIR CONDITIONER |
84014-42070 |
US $387.30 |
||
|
84014E
|
84014E
84014-42110 Board Sub-Assy, Printed Wire IntegrationPRINTED WIRE INTEGRATION [07.2003 -] CLA2#..RHD |
84014-42110 |
US $218.40 |
||
|
88650B
|
88650B
88650-42170
Amplifier Assy, Airconditioner
[07.2003 -] CLA2# |
88650-42170 |
— | ||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $1.08 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.76 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
