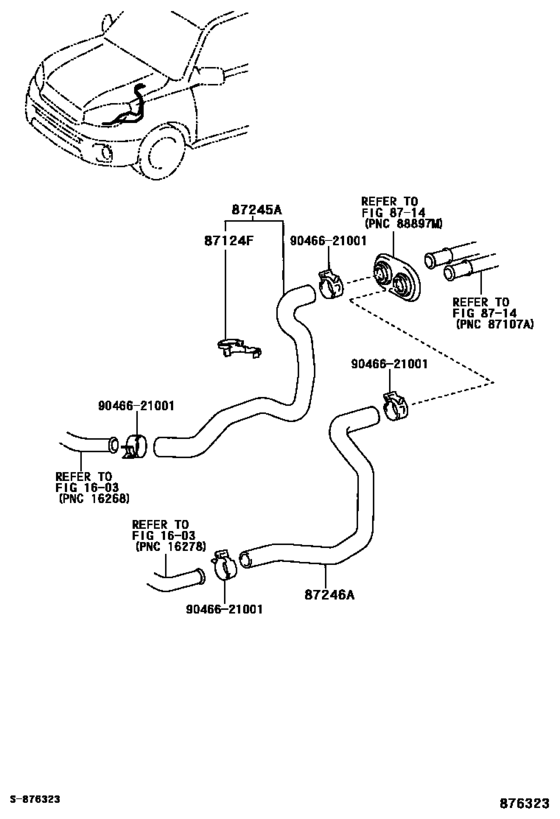

Heating & Air Conditioning - Water Piping ([07.2003 - ] (0307- )CLA2#) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87124F
|
87124F
87124-42030 Clamp, Heater[07.2003 -] CLA2# |
87124-42030 |
from US $1.40 |
||
|
87245A
|
87245A
87209-42010 Hose, Heater Water, Inlet AHEATER WATER, INLET A [05.2001 - 07.2003] CLA2# |
87209-42010 |
US $32.18 |
||
|
87246A
|
87246A
87245-42260 Hose, Heater Water, Outlet AHEATER WATER, OUTLET A [05.2001 - 07.2003] CLA2# |
87245-42260 |
US $27.08 |
||
|
9046621001
|
9046621001
90466-21001 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90466-21001 |
from US $3.94 |
