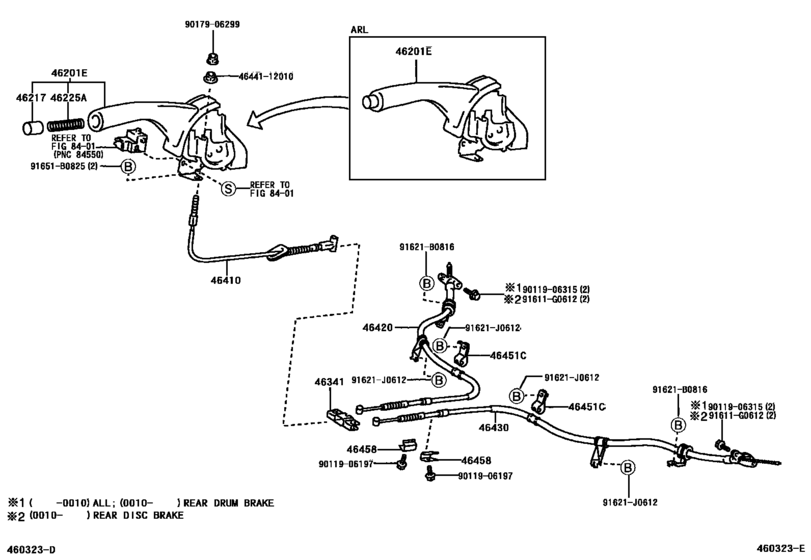

Parking Brake & Cable ([05.2000 - ] (0005- )ACA20,22,CLA20,ZCA25) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201E
|
46201E
46201-42060-C0 Lever Sub-Assy, Parking Brake[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..RHD..(EUR,GEN) BLACK,TRIM14,15 |
46201-42060-C0 |
US $77.17 |
||
|
46217
|
46217
46217-16030-C0 Knob, Parking Brake Release Rod[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN BLACK,TRIM14,15 |
46217-16030-C0 |
US $3.20 |
||
|
46225A
|
46225A
90501-10132 Spring, Compression(For Parking Brake Pawl Rod)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN |
90501-10132 |
from US $1.72 |
||
|
46341
|
46341
46341-42010 Equalizer, Parking Brake[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
46341-42010 |
US $7.86 |
||
|
46410
|
46410
46410-42040 Cable Assy, Parking Brake, No.1[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
46410-42040 |
US $32.15 |
||
|
46420
|
46420
46420-42080 Cable Assy, Parking Brake, No.2[05.2000 - 07.2003] ACA20,CLA20,ZCA25 W(REAR DISC BRAKE) |
46420-42080 |
US $58.24 |
||
|
46420
|
46420
46420-42100 Cable Assy, Parking Brake, No.2[05.2000 - 07.2003] ACA20,CLA20,ZCA25..EUR,GCC,GEN |
46420-42100 |
US $63.07 |
||
|
46430
|
46430
46430-42080
Cable Assy, Parking Brake, No.3
[05.2000 - 07.2003] ACA20,CLA20,ZCA25 W(REAR DISC BRAKE) |
46430-42080 |
— | ||
|
46430
|
46430
46430-42100 Cable Assy, Parking Brake, No.3[05.2000 - 07.2003] ACA20,CLA20,ZCA25..EUR,GCC,GEN |
46430-42100 |
US $63.07 |
||
|
46451C
|
46451C
46451-42070 Bracket, Parking Brake Cable Support, No.1[05.2000 - 07.2003] ACA20,CLA20,ZCA25 |
46451-42070 |
US $6.41 |
||
|
46458
|
46458
46458-28010 Retainer, Cable[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
46458-28010 |
US $4.12 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
4644112010
|
4644112010
46441-12010 Nut, Wire Adjusting, No.1 |
46441-12010 |
US $2.87 |
||
|
9011906197
|
9011906197
90119-06197 New Genuine Part |
90119-06197 |
US $0.55 |
||
|
9011906315
|
9011906315
90119-06315 BOLT |
90119-06315 |
US $1.25 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.66 |
