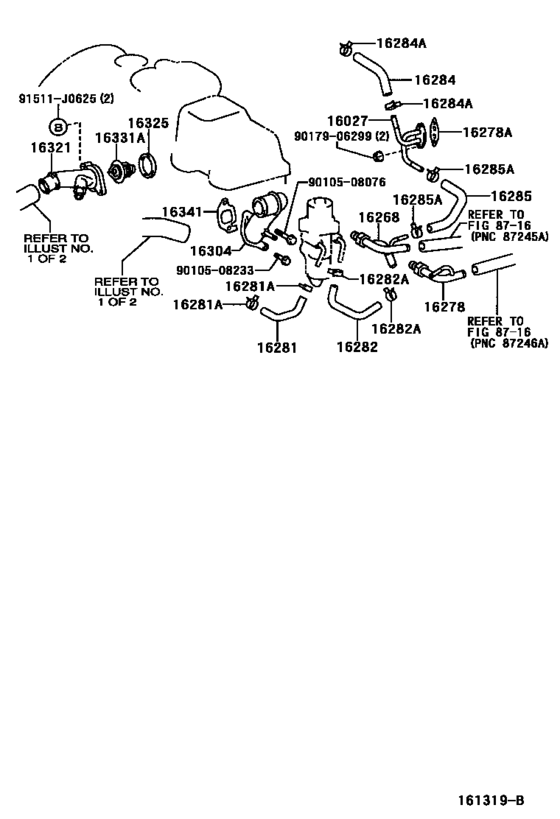

Radiator & Water Outlet ([05.2001 - ] (0105- )1CDFTV) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16027
|
16027
16027-27020
Pipe Sub-Assy, Turbo Water, No.1
[05.2001 - 07.2003] 1CDFTV..CLA2# |
16027-27020 |
— | ||
|
16268
|
16268
16268-27030 Pipe, Water By-Pass, No.1WATER BY-PASS, NO.1 [05.2001 - 07.2003] 1CDFTV..CLA2# |
16268-27030 |
US $37.13 |
||
|
16278
|
16278
16278-27030 Pipe, Water By-Pass, No.2WATER BY-PASS, NO.2 [05.2001 - 07.2003] 1CDFTV..CLA2# |
16278-27030 |
US $30.28 |
||
|
16278A
|
16278A
16347-27020 Gasket, Water By-Pass[05.2001 - 07.2003] 1CDFTV..CLA2# |
16347-27020 |
from US $0.53 |
||
|
16281
|
16281
16281-27010 Hose, Water By-Pass, No.4WATER BY-PASS, NO.4 [05.2001 - 07.2003] 1CDFTV..CLA2# |
16281-27010 |
US $7.86 |
||
|
16281A
|
16281A
90467-13073
Clamp Or Clip, Hose(For Water By-Pass Hose)
[04.2002 - 07.2003] 1CDFTV..CLA2# |
90467-13073 |
— | ||
| replacement | |||||
|
16281A
|
16281A
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2002 - 07.2003] 1CDFTV..CLA2# |
90467-13128 |
from US $1.38 |
||
|
16281A
|
16281A
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[05.2001 - 04.2002] 1CDFTV..CLA2# |
90467-13128 |
from US $1.38 |
||
|
16282
|
16282
16282-27010 Hose, Water By-Pass, No.5WATER BY-PASS, NO.5 [05.2001 - 07.2003] 1CDFTV..CLA2# |
16282-27010 |
US $7.86 |
||
|
16282A
|
16282A
90467-13073
Clamp Or Clip, Hose(For Water By-Pass Hose)
[04.2002 - 07.2003] 1CDFTV..CLA2# |
90467-13073 |
— | ||
| replacement | |||||
|
16282A
|
16282A
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2002 - 07.2003] 1CDFTV..CLA2# |
90467-13128 |
from US $1.38 |
||
|
16282A
|
16282A
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[05.2001 - 04.2002] 1CDFTV..CLA2# |
90467-13128 |
from US $1.38 |
||
|
16284
|
16284
16284-27020 Hose, Turbo Water, No.1TURBO WATER, NO.1 [05.2001 - 07.2003] 1CDFTV..CLA2# |
16284-27020 |
US $7.86 |
||
|
16284A
|
16284A
90467-15022 Clip Or Clamp(For Ventilation Hose)[05.2001 - 07.2003] 1CDFTV..CLA2# |
90467-15022 |
from US $1.07 |
||
|
16285
|
16285
16285-27020 Hose, Turbo Water, No.2TURBO WATER, NO.2 [05.2001 - 07.2003] 1CDFTV..CLA2# |
16285-27020 |
US $7.86 |
||
|
16285A
|
16285A
90467-15022 Clip Or Clamp(For Ventilation Hose)[05.2001 - 07.2003] 1CDFTV..CLA2# |
90467-15022 |
from US $1.07 |
||
|
16304
|
16304
16304-27020 Outlet Sub-Assy, WaterWATER [05.2001 - 07.2003] 1CDFTV..CLA2# |
16304-27020 |
US $72.51 |
||
|
16321
|
16321
16031-27010 Inlet, WaterWATER [05.2001 - 07.2003] 1CDFTV..CLA2# |
16031-27010 |
US $81.54 |
||
|
16325
|
16325
16325-27010
Gasket, Water Inlet Housing, No.1
[05.2001 - 07.2003] 1CDFTV..CLA2# |
16325-27010 |
— | ||
|
16331A
|
16331A
90916-03123 Thermostat[05.2001 - 07.2003] 1CDFTV..CLA2# |
90916-03123 |
from US $20.27 |
||
|
16341
|
16341
16341-27010
Gasket, Water Outlet
[05.2001 - 07.2003] 1CDFTV..CLA2# |
16341-27010 |
— | ||
|
91511J0625
|
91511J0625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.78 |
||
|
9010508076
|
9010508076
90105-08076 BOLT |
90105-08076 |
US $3.05 |
||
|
9010508233
|
9010508233
90105-08233 Bolt (For Transaxle Housing & Transaxle Case Setting) |
90105-08233 |
US $0.87 |
||
| replacement | |||||
|
9010508233
|
9010508233
90080-10187 Bolt (For Transaxle Housing & Transaxle Case Setting) |
90080-10187 |
US $3.96 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.66 |
||
