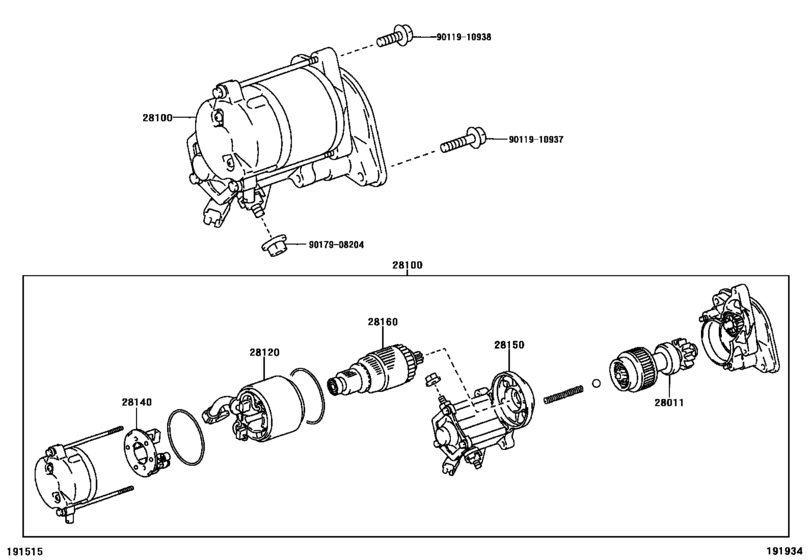

Starter ([07.2003 - ] 12V 1.4KW (0307- )1CDFTV) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-64130 Clutch Sub-Assy, Starter[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28011-64130 |
US $189.28 |
||
|
28100
|
28100
28100-64300 Starter Assy[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28100-64300 |
US $1,415.23 |
||
|
28120
|
28120
28120-55050
Yoke Assy, Starter
[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28120-55050 |
— | ||
|
28140
|
28140
28140-64130
Holder Assy, Starter Brush
[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28140-64130 |
— | ||
|
28150
|
28150
28150-64341 Switch Assy, Magnet Starter[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28150-64341 |
US $154.34 |
||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[05.2001 - 07.2003] 1CDFTV..CLA2# 12V 1.4KW |
28160-74070 |
— | ||
|
9011910937
|
9011910937
90119-10937 New Genuine Part |
90119-10937 |
US $2.33 |
||
|
9011910938
|
9011910938
90119-10938 New Genuine Part |
90119-10938 |
US $1.40 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
