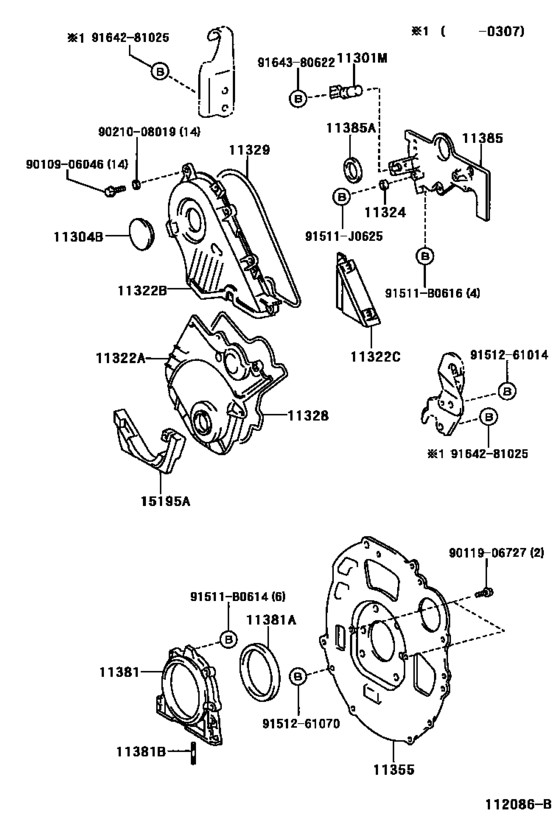

Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- )1CDFTV) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301M
|
11301M
90919-05012 Sensor, Crank Position[05.2001 - 07.2003] 1CDFTV..CLA2# |
90919-05012 |
from US $95.36 |
||
|
11304B
|
11304B
90950-01357 Plug, Semi Circular(For Chain Cover No.2)[05.2001 - 07.2003] 1CDFTV..CLA2# OD=64 |
90950-01357 |
US $5.53 |
||
|
11322A
|
11322A
11321-27010 Cover, Timing Belt, No.1TIMING BELT, NO.1 [05.2001 - 11.2002] 1CDFTV..CLA2# |
11321-27010 |
US $47.32 |
||
| replacement | |||||
|
11322A
|
11322A
11321-27011 Cover, Timing Belt, No.1TIMING BELT, NO.1 [05.2001 - 11.2002] 1CDFTV..CLA2# |
11321-27011 |
US $50.96 |
||
|
11322A
|
11322A
11321-27011 Cover, Timing Belt, No.1TIMING BELT, NO.1 [11.2002 - 07.2003] 1CDFTV..CLA2# |
11321-27011 |
US $50.96 |
||
|
11322B
|
11322B
11322-27011 Cover, Timing Belt, No.2TIMING BELT, NO.2 [05.2001 - 07.2003] 1CDFTV..CLA2# |
11322-27011 |
US $58.82 |
||
|
11322C
|
11322C
11323-27010 Cover, Timing Belt, No.3TIMING BELT, NO.3 [05.2001 - 07.2003] 1CDFTV..CLA2# |
11323-27010 |
US $32.32 |
||
|
11324
|
11324
11324-27010 Plate, Timing Chain CoverTIMING CHAIN COVER [05.2001 - 07.2003] 1CDFTV..CLA2# |
11324-27010 |
US $5.97 |
||
|
11328
|
11328
11328-27010 Gasket, Timing Gear Or Chain CoverTIMING GEAR OR CHAIN COVER [05.2001 - 07.2003] 1CDFTV..CLA2# |
11328-27010 |
US $6.05 |
||
|
11329
|
11329
11329-27010 Gasket, Timing Gear Rear CoverTIMING GEAR REAR COVER [05.2001 - 07.2003] 1CDFTV..CLA2# |
11329-27010 |
US $6.05 |
||
|
11355
|
11355
11355-27011 Plate, Rear EndREAR END [05.2001 - 07.2003] 1CDFTV..CLA2# |
11355-27011 |
US $82.99 |
||
|
11381
|
11381
11381-64020 Retainer, Engine Rear Oil Seal[05.2001 - 07.2003] 1CDFTV..CLA2# |
11381-64020 |
US $63.77 |
||
|
11381A
|
11381A
90311-90008 Seal, Engine Rear Oil[05.2001 - 07.2003] 1CDFTV..CLA2# |
90311-90008 |
from US $17.98 |
||
|
11381B
|
11381B
90126-06018 Bolt, Stud(For Engine Rear Oil Seal Retainer)[05.2001 - 07.2003] 1CDFTV..CLA2# |
90126-06018 |
US $0.87 |
||
|
11385
|
11385
11382-27010 Retainer, Camshaft Oil SealCAMSHAFT OIL SEAL [05.2001 - 07.2003] 1CDFTV..CLA2# |
11382-27010 |
US $77.17 |
||
|
11385A
|
11385A
90311-38081 Seal, Oil(For Camshaft)[05.2001 - 07.2003] 1CDFTV..CLA2# |
90311-38081 |
from US $7.17 |
||
|
15195A
|
15195A
15195-27011
Insulator, Oil Pump
[05.2001 - 07.2003] 1CDFTV..CLA2# |
15195-27011 |
— | ||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.86 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
91511J0625
|
91511J0625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.78 |
||
|
9010906046
|
9010906046
90109-06046 BOLT |
90109-06046 |
from US $0.78 |
||
|
9011906727
|
9011906727
90119-06727 BOLT W-WASHER |
90119-06727 |
US $2.15 |
||
|
9021008019
|
9021008019
90210-08019 WASHER |
90210-08019 |
from US $1.85 |
||
| replacement | |||||
|
9021008019
|
9021008019
90080-21002
WASHER
|
90080-21002 |
— | ||
|
9151261014
|
9151261014
91512-61014 BOLT FLANGE |
91512-61014 |
US $1.31 |
||
|
9151261070
|
9151261070
91512-61070 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91512-61070 |
US $4.66 |
||
|
9164281025
|
9164281025
91642-81025 BOLT WWASHER |
91642-81025 |
from US $0.98 |
||
|
9164380622
|
9164380622
91643-80622 New Genuine Part |
91643-80622 |
US $1.46 |
||
