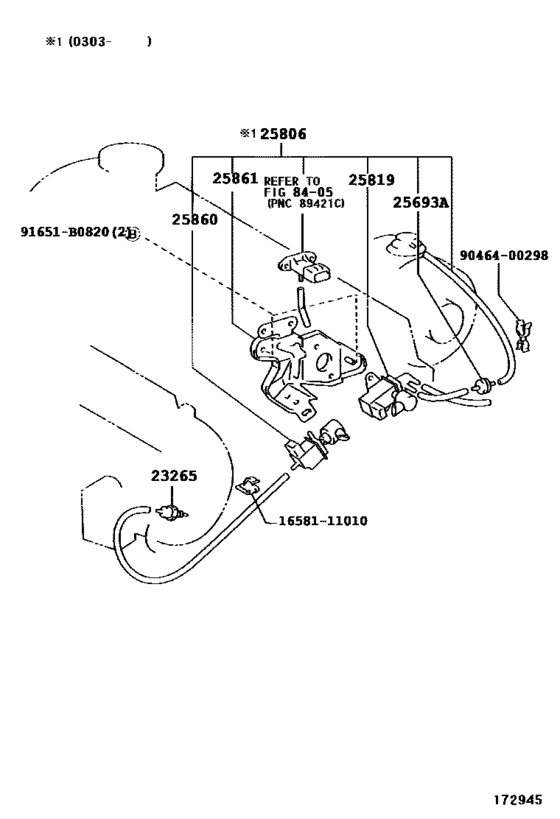

Vacuum Piping ([05.2001 - ] (0105- )1CDFTV) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23265
|
23265
90917-11037 Filter, Gas, No.1[05.2001 - 07.2003] 1CDFTV..CLA2# |
90917-11037 |
from US $20.03 |
||
|
25693A
|
25693A
25693-58010 Damper, Egr Vacuum Modulator[05.2001 - 07.2003] 1CDFTV..CLA2# |
25693-58010 |
US $7.69 |
||
|
25806
|
25806
25806-27040 Valve Set, Pressure ControlPRESSURE CONTROL [03.2003 - 07.2003] 1CDFTV..CLA2# |
25806-27040 |
US $643.55 |
||
|
25819
|
25819
25819-27040 Valve Assy, Vacuum RegulatingVACUUM REGULATING [05.2001 - 07.2003] 1CDFTV..CLA2# |
25819-27040 |
US $195.20 |
||
|
25860
|
25860
25860-27010 Valve Assy, Vacuum Switching, No.1VACUUM SWITCHING, NO.1 [05.2001 - 07.2003] 1CDFTV..CLA2# |
25860-27010 |
US $69.96 |
||
|
25861
|
25861
25861-27050 Bracket, Vacuum Switching ValveVACUUM SWITCHING VALVE [05.2001 - 07.2003] 1CDFTV..CLA2# |
25861-27050 |
US $27.81 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
1658111010
|
1658111010
16581-11010 Clamp, Hose(for Water Hose) |
16581-11010 |
US $3.49 |
||
|
9046400298
|
9046400298
90464-00298 Clamp, No.2 (For Transfer Vacuum) |
90464-00298 |
US $2.62 |
||
