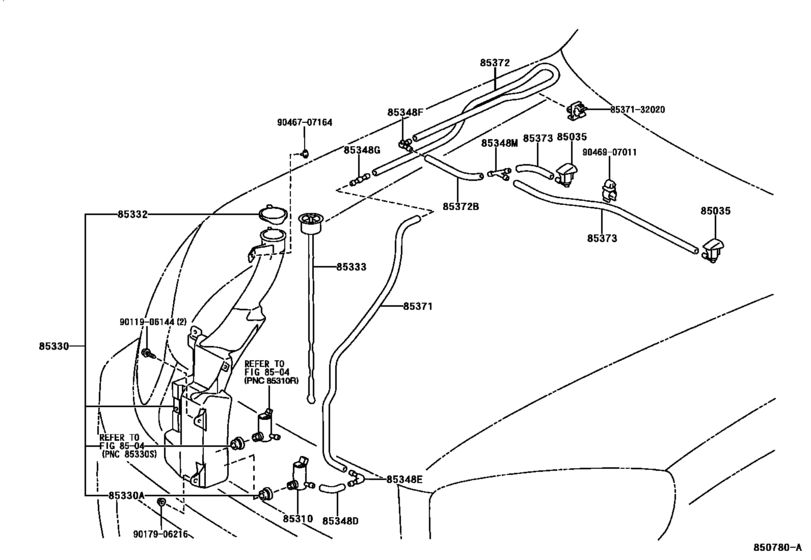

Windshield Washer ([05.2000 - 07.2003] (0005-0307)EUR) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-42050
Nozzle Sub-Assy, Washer
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..RHD |
85381-42050 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..RHD |
85381-12050 |
from US $16.44 |
||
|
85310
|
85310
85330-33020 Motor And Pump Assy, Windshield Washer[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR |
85330-33020 |
US $97.40 |
||
|
85310
|
85310
85330-60190 Motor And Pump Assy, Windshield Washer[07.2003 -] ACA20,21,CLA2#,ZCA2#..EUR |
85330-60190 |
from US $90.20 |
||
|
85330
|
85330
85315-42150
Jar Assy, Windshield Washer
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR |
85315-42150 |
— | ||
|
85330
|
85330
85315-42190 Jar Assy, Windshield Washer[07.2003 -] ACA2#,CLA2#,ZCA2# |
85315-42190 |
from US $55.10 |
||
|
85330A
|
85330A
85336-60300 Bush, Windshield Washer Jar[07.2003 -] ACA2#,CLA2#,ZCA2# |
85336-60300 |
from US $1.92 |
||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-33050 Cap, Washer, Inlet[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR |
85316-33050 |
from US $2.10 |
||
|
85332
|
85332
85386-60040 Cap, Windshield Washer Jar[07.2003 -] ACA2#,CLA2#,ZCA2# |
85386-60040 |
US $3.67 |
||
|
85333
|
85333
85312-42020
Filter, Windshield Washer Jar
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
85312-42020 |
— | ||
|
85333
|
85333
85312-68010
Filter, Windshield Washer Jar
[07.2003 -] ACA2#,CLA2#,ZCA2# |
85312-68010 |
— | ||
|
85348D
|
85348D
85355-16192
Joint, Windshield Washer Elbow, No.1
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR |
85355-16192 |
— | ||
|
85348E
|
85348E
85355-20200 Joint, Windshield Washer Hose, No.1[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
85355-20200 |
from US $0.98 |
||
|
85348F
|
85348F
85375-42110
Joint, Windshield Washer Elbow, No.3
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
85375-42110 |
— | ||
| replacement | |||||
|
85348F
|
85348F
85375-60290 Joint, Windshield Washer Elbow, No.1[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
85375-60290 |
from US $1.76 |
||
|
85348G
|
85348G
85375-10260 Joint, Windshield Washer Hose, No.1[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
85375-10260 |
from US $1.44 |
||
|
85348M
|
85348M
85348-14390 Joint, Windshield Washer Hose, No.1[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
85348-14390 |
from US $1.40 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR *H,L=850 |
90099-33080 |
from US $5.27 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# *H,L=950 |
90099-33080 |
from US $5.27 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR *H,L=250 |
90099-33080 |
from US $5.27 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# *H,L=170; ACA2#,CLA2#,ZCA2#..EUR *H,L=660; ACA2#..ARL,GCC,GEN *H,L=40 |
90099-33080 |
from US $5.27 |
||
|
8537132020
|
8537132020
85371-32020 Clamp, Washer, No.2 |
85371-32020 |
from US $2.01 |
||
|
9011906144
|
9011906144
90119-06144 Bolt, Hexagon (For Shift Lever Plate) |
90119-06144 |
US $0.61 |
||
|
9017906216
|
9017906216
90179-06216
Direct
|
90179-06216 |
— | ||
| replacement | |||||
|
9017906216
|
9017906216
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046707164
|
9046707164
90467-07164 Clip(For Front Fender Apron Seal) |
90467-07164 |
from US $1.21 |
||
|
9046907011
|
9046907011
90469-07011 Clamp No.1 (For Windseield Washer) |
90469-07011 |
from US $1.97 |
||
