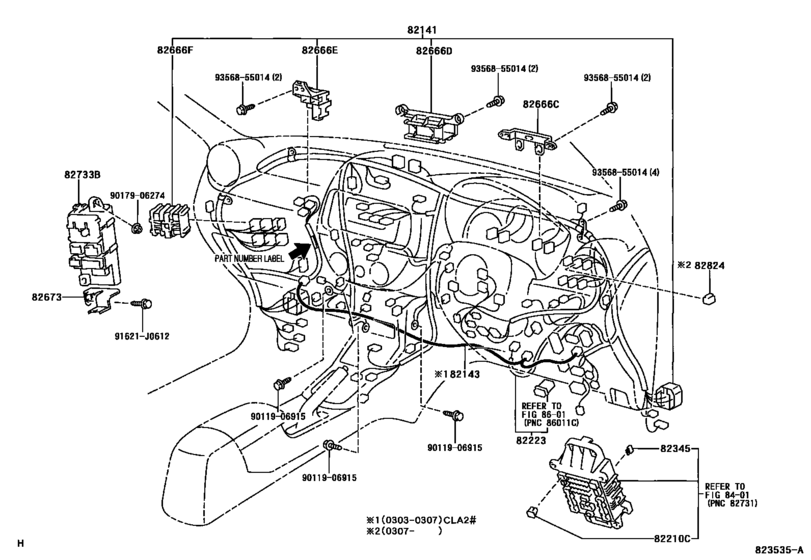

Wiring & Clamp ([05.2000 - ] INSTRUMENT PANEL (0005- )RHD) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-42D50 Wire, Instrument PanelINSTRUMENT PANEL [07.2003 - 12.2004] CLA2#..RHD PART NUMBER LABEL=82141-42D50 |
82141-42D50 |
US $1,191.01 |
||
|
82141
|
82141
82141-42D51 Wire, Instrument PanelINSTRUMENT PANEL [12.2004 -] CLA2#..RHD PART NUMBER LABEL=82141-42D51 |
82141-42D51 |
US $1,356.99 |
||
|
82141
|
82141
82141-42D60 Wire, Instrument PanelINSTRUMENT PANEL [07.2003 - 12.2004] CLA2#..RHD PART NUMBER LABEL=82141-42D60 |
82141-42D60 |
US $1,191.01 |
||
|
82141
|
82141
82141-42D61 Wire, Instrument PanelINSTRUMENT PANEL [12.2004 -] CLA2#..RHD PART NUMBER LABEL=82141-42D61 |
82141-42D61 |
US $1,191.01 |
||
|
82141
|
82141
82141-42D70 Wire, Instrument PanelINSTRUMENT PANEL [07.2003 - 12.2004] CLA2#..RHD PART NUMBER LABEL=82141-42D70 |
82141-42D70 |
US $1,191.01 |
||
|
82141
|
82141
82141-42D71 Wire, Instrument PanelINSTRUMENT PANEL [12.2004 -] CLA2#..RHD PART NUMBER LABEL=82141-42D71 |
82141-42D71 |
US $1,191.01 |
||
|
82141
|
82141
82141-42D80 Wire, Instrument PanelINSTRUMENT PANEL [07.2003 - 12.2004] CLA2#..RHD PART NUMBER LABEL=82141-42D80 |
82141-42D80 |
US $1,356.99 |
||
|
82141
|
82141
82141-42D81 Wire, Instrument PanelINSTRUMENT PANEL [12.2004 -] CLA2#..RHD PART NUMBER LABEL=82141-42D81 |
82141-42D81 |
US $1,528.80 |
||
|
82141
|
82141
82145-42030 Wire, Instrument PanelINSTRUMENT PANEL [05.2001 - 03.2003] CLA2#..RHD PART NUMBER LABEL=82145-42030 |
82145-42030 |
US $1,355.54 |
||
|
82141
|
82141
82145-42031 Wire, Instrument PanelINSTRUMENT PANEL [03.2003 - 07.2003] CLA2#..RHD PART NUMBER LABEL=82145-42031 |
82145-42031 |
US $1,355.54 |
||
|
82143
|
82143
82143-42010 Wire, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [03.2003 - 07.2003] CLA2# |
82143-42010 |
US $15.58 |
||
|
82210C
|
82210C
90982-08280 Fusible Link[07.2003 -] ACA2#,CLA2#,ZCA2# 30A,TERMINAL:FEMALE |
90982-08280 |
from US $3.88 |
||
|
82210C
|
82210C
90982-08281 Fusible Link[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# 40A,TERMINAL:FEMALE |
90982-08281 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08282 Fusible Link[07.2003 -] CLA2# 50A,TERMINAL:FEMALE |
90982-08282 |
from US $7.88 |
||
|
82223
|
82223
82223-42010 Wire, Switch[05.2000 - 03.2003] ACA2#,CLA2#,ZCA2#..RHD |
82223-42010 |
US $22.86 |
||
|
82223
|
82223
82223-42120 Wire, SwitchSWITCH [03.2003 - 07.2003] CLA2#..RHD |
82223-42120 |
US $23 |
||
|
82345
|
82345
82345-32020 Diode[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
82345-32020 |
US $13.45 |
||
|
82666C
|
82666C
82666-42030 Holder, Connector No.4[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
82666-42030 |
US $9.46 |
||
|
82666D
|
82666D
82666-42060 Holder, Connector No.5[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
82666-42060 |
US $21.69 |
||
|
82666E
|
82666E
82666-42070 Holder, Connector No.6[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..RHD |
82666-42070 |
US $17.18 |
||
|
82666E
|
82666E
82666-42140 Holder, Connector No.6[07.2003 -] ACA2#,CLA2#,ZCA2#..RHD |
82666-42140 |
US $20.09 |
||
|
82666F
|
82666F
82666-42110 Holder, Connector No.7[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
82666-42110 |
US $32.61 |
||
|
82673
|
82673
82673-42070 Bracket, Junction Block[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..RHD |
82673-42070 |
US $6.84 |
||
|
82733B
|
82733B
82733-42050 Block, Passenger Side JunctionPASSENGER SIDE JUNCTION [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..RHD |
82733-42050 |
US $398.94 |
||
|
82733B
|
82733B
82733-42060 Block, Passenger Side JunctionPASSENGER SIDE JUNCTION [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..RHD..EUR W(POWER DOOR LOCK & DOUBLE LOCK) |
82733-42060 |
US $451.36 |
||
|
82733B
|
82733B
82733-42061 Block, Passenger Side JunctionPASSENGER SIDE JUNCTION [07.2004 -] ACA20,21,CLA2#,ZCA2#..RHD..EUR W(POWER DOOR LOCK & DOUBLE LOCK) |
82733-42061 |
US $451.36 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
