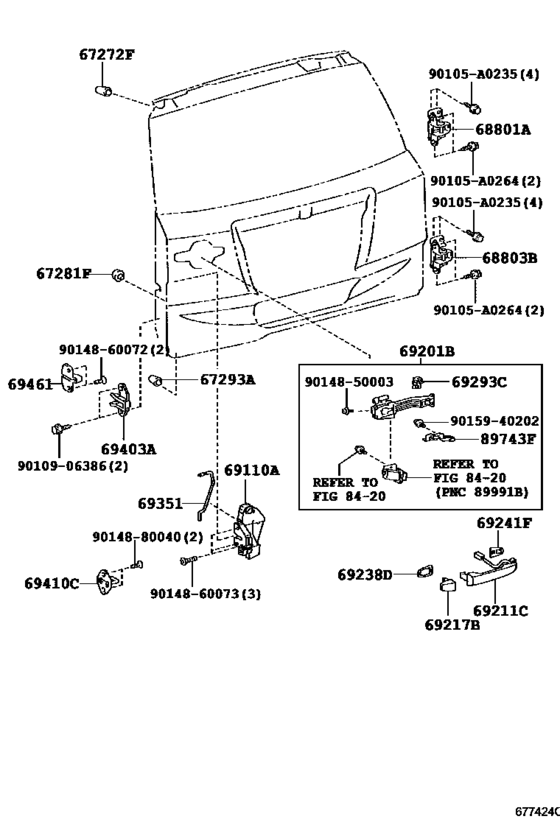

Back Door Lock & Hinge ([04.2012 - ] (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67272F
|
67272F
90541-09108 Cushion, Back Door Stopper, No.2[04.2012 -] QEA38 |
90541-09108 |
from US $3.04 |
||
|
67281F
|
67281F
67282-46010 Stopper, Back Door, Lower[04.2012 -] QEA38 |
67282-46010 |
from US $3.26 |
||
|
67293A
|
67293A
67272-42010 Cushion, Back Door Stopper[04.2012 -] QEA38 |
67272-42010 |
US $4.12 |
||
|
68801A
|
68801A
68801-0R010
Hinge Sub-Assy, Back Door, Upper
[04.2012 - 08.2014] QEA38 |
68801-0R010 |
— | ||
|
68803B
|
68803B
68801-0R010
Hinge Sub-Assy, Back Door, Upper
[04.2012 -] QEA38 |
68801-0R010 |
— | ||
|
69110A
|
69110A
69110-0R011
Lock Assy, Back Door W/motor
[04.2012 -] QEA38 |
69110-0R011 |
— | ||
| replacement | |||||
|
69110A
|
69110A
69110-42131 Lock Assy, Back Door W/motor[04.2012 -] QEA38 |
69110-42131 |
from US $179.67 |
||
|
69201B
|
69201B
69201-02210
Frame Sub-Assy, Front Door Outside Handle, Rh
[04.2012 - 08.2014] QEA38 |
69201-02210 |
— | ||
|
69211C
|
69211C
69210-02110-A0
Handle Assy, Front Door, Outside Rh
[04.2012 - 08.2014] QEA38 SUPER WHITE 2,040 |
69210-02110-A0 |
— | ||
|
69211C
|
69211C
69210-02110-A1
Handle Assy, Front Door, Outside Rh
[04.2012 - 08.2014] QEA38 WHITE PEARL CS.,070 |
69210-02110-A1 |
— | ||
|
69211C
|
69211C
69210-02110-B0
Handle Assy, Front Door, Outside Rh
[04.2012 - 08.2014] QEA38 SILVER ME.,1F7 |
69210-02110-B0 |
— | ||
|
69211C
|
69211C
69210-02110-J4
Handle Assy, Front Door, Outside Rh
[04.2012 - 08.2014] QEA38 GRAYISH BLUE M.M.,8V5 |
69210-02110-J4 |
— | ||
|
69217B
|
69217B
69217-02230-A0
Cover, Back Door Outside Handle
[04.2012 - 08.2014] QEA38 SUPER WHITE 2,040 |
69217-02230-A0 |
— | ||
|
69217B
|
69217B
69217-02230-A1
Cover, Back Door Outside Handle
[04.2012 - 08.2014] QEA38 WHITE PEARL CS.,070 |
69217-02230-A1 |
— | ||
|
69217B
|
69217B
69217-02230-B0
Cover, Back Door Outside Handle
[04.2012 - 08.2014] QEA38 SILVER ME.,1F7 |
69217-02230-B0 |
— | ||
|
69217B
|
69217B
69217-02230-J4
Cover, Back Door Outside Handle
[04.2012 - 08.2014] QEA38 GRAYISH BLUE M.M.,8V5 |
69217-02230-J4 |
— | ||
|
69238D
|
69238D
69238-AA010
Pad, Front Door Outside Handle, Rear
[04.2012 - 08.2014] QEA38 |
69238-AA010 |
— | ||
|
69241F
|
69241F
69241-AA020 Pad, Front Door Outside Handle, Front[04.2012 - 08.2014] QEA38 |
69241-AA020 |
US $5.97 |
||
|
69293C
|
69293C
69293-12030 Snap, Front Door Outside Handle[04.2012 - 08.2014] QEA38 |
69293-12030 |
from US $1.97 |
||
|
69351
|
69351
69378-0R010
Rod, Back Door Lock Control, Upper
[04.2012 -] QEA38 |
69378-0R010 |
— | ||
|
69403A
|
69403A
69403-60011 Stopper Sub-Assy, Back Door Side Female, RhBACK DOOR SIDE FEMALE, RH [04.2012 -] QEA38 |
69403-60011 |
from US $11.82 |
||
|
69410C
|
69410C
69410-60010 Plate Assy, Rear Door Lock StrikerDOOR LOCK STRIKER [04.2012 -] QEA38 |
69410-60010 |
from US $13.42 |
||
|
69461
|
69461
69461-60010 Stopper, Back Door Side Male, RhBACK DOOR SIDE MALE [04.2012 -] QEA38 |
69461-60010 |
from US $6.79 |
||
|
89743F
|
89743F
89743-47010 Bracket, Electrical Key Wire Harness[04.2012 - 08.2014] QEA38 |
89743-47010 |
US $3.20 |
||
|
90105A0235
|
90105A0235
90105-A0235
New Genuine Part
|
90105-A0235 |
— | ||
|
90105A0264
|
90105A0264
90105-A0264
New Genuine Part
|
90105-A0264 |
— | ||
|
9010906386
|
9010906386
90109-06386 BOLT |
90109-06386 |
from US $0.60 |
||
|
9014850003
|
9014850003
90148-50003 Screw Hex Lobular |
90148-50003 |
from US $0.66 |
||
|
9014860072
|
9014860072
90148-60072 SCREW HEXALOBULAR |
90148-60072 |
from US $0.60 |
||
|
9014860073
|
9014860073
90148-60073 SCREW HEXALOBULAR |
90148-60073 |
from US $0.60 |
||
|
9014880040
|
9014880040
90148-80040 Screw Hex Lobular |
90148-80040 |
from US $0.66 |
||
|
9015940202
|
9015940202
90159-40202 SCREW WWASHER |
90159-40202 |
US $1.08 |
||
