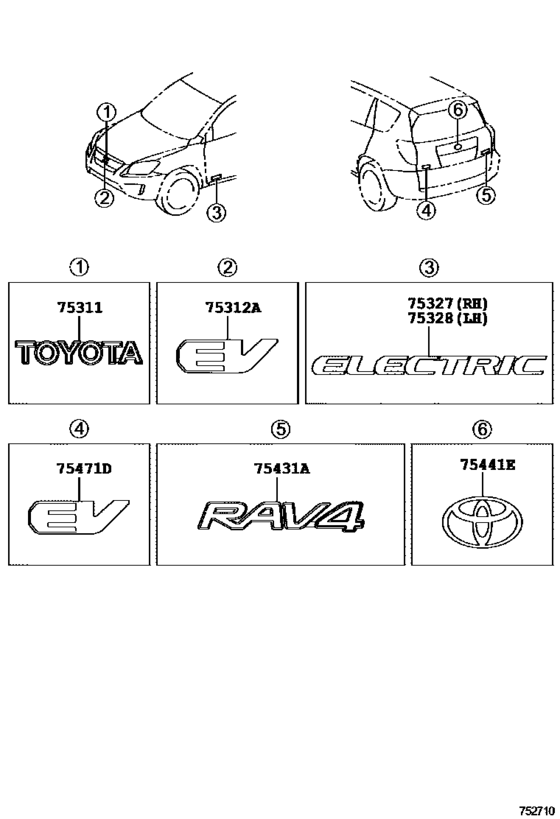

Emblem & Name Plate ([04.2012 - ] (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75311
|
75311
75311-0R040
Emblem, Radiator Grille (Or Front Panel)
[04.2012 - 08.2014] QEA38 |
75311-0R040 |
— | ||
|
75312A
|
75312A
75312-0R040
Plate, Front Name, No.2
[04.2012 - 08.2014] QEA38 EV |
75312-0R040 |
— | ||
|
75327
|
75327
75315-0R010
Mark, Front Door, Rh
[04.2012 -] QEA38 |
75315-0R010 |
— | ||
|
75328
|
75328
75315-0R010
Mark, Front Door, Rh
[04.2012 -] QEA38 |
75315-0R010 |
— | ||
|
75431A
|
75431A
75431-42110
Emblem, Back Door, No.1
[04.2012 -] QEA38 RAV4 |
75431-42110 |
— | ||
|
75441E
|
75441E
75403-12040 Ornament Sub-Assy, Back Door[04.2012 - 08.2014] QEA38 |
75403-12040 |
US $52.92 |
||
|
75471D
|
75471D
75471-0R010
Plate, Rear Name
[04.2012 -] QEA38 EV |
75471-0R010 |
— |
