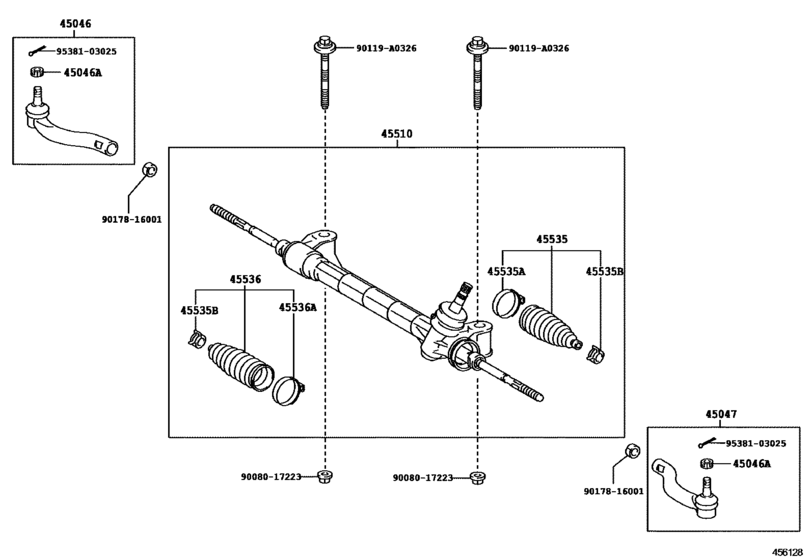

Front Steering Gear & Link ([04.2012 - ] (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-09650
End Sub-Assy, Tie Rod, Rh
[04.2012 -] QEA38 |
45046-09650 |
— | ||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[04.2012 -] QEA38 |
90171-12028 |
from US $1.35 |
||
|
45047
|
45047
45047-09310
End Sub-Assy, Tie Rod, Lh
[04.2012 -] QEA38 |
45047-09310 |
— | ||
|
45510
|
45510
45510-0R070
Gear Assy, Steering
[04.2014 - 08.2014] QEA38 |
45510-0R070 |
— | ||
|
45510
|
45510
45510-0R100
Gear Assy, Steering
[04.2012 - 03.2014] QEA38 |
45510-0R100 |
— | ||
| replacement | |||||
|
45510
|
45510
45510-42230 Gear Assy, Steering[04.2012 - 03.2014] QEA38 |
45510-42230 |
from US $620.26 |
||
|
45535
|
45535
45535-49025 Boot, Steering Rack, No.1STEERING RACK, NO.1 [04.2012 -] QEA38 |
45535-49025 |
from US $10.76 |
||
|
45535A
|
45535A
45538-42010 Clamp(For Steering Rack Boot No.1)[04.2012 -] QEA38 |
45538-42010 |
US $2.80 |
||
|
45535B
|
45535B
45537-42010 Clip(For Steering Rack Boot)[04.2012 -] QEA38 |
45537-42010 |
US $2.62 |
||
|
45536
|
45536
45535-49025 Boot, Steering Rack, No.1STEERING RACK, NO.1 [04.2012 -] QEA38 |
45535-49025 |
from US $10.76 |
||
|
45536A
|
45536A
45538-42010 Clamp(For Steering Rack Boot No.1)[04.2012 -] QEA38 |
45538-42010 |
US $2.80 |
||
|
90119A0326
|
90119A0326
90119-A0326
New Genuine Part
|
90119-A0326 |
— | ||
|
9008017223
|
9008017223
90080-17223
Nut(For Front Suspension Lower Arm)
|
90080-17223 |
— | ||
|
9017816001
|
9017816001
90178-16001 Nut |
90178-16001 |
from US $1.13 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.78 |
||
