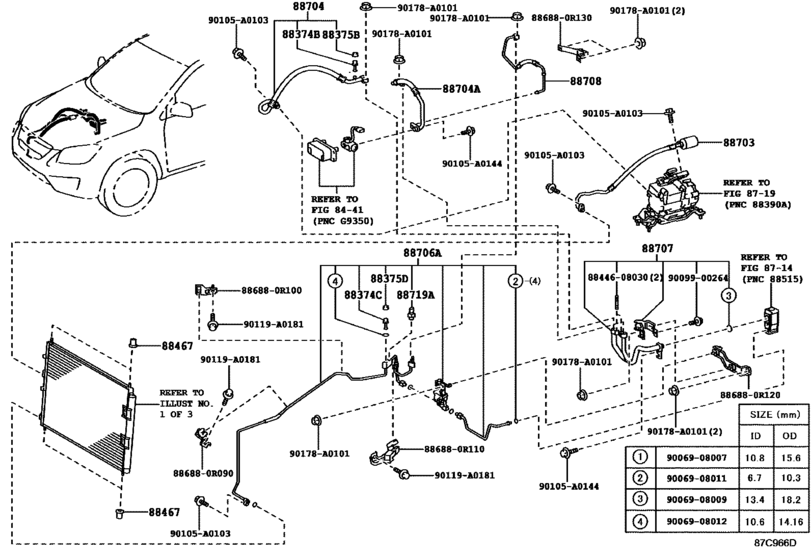

Heating & Air Conditioning - Cooler Piping ([04.2012 - ] PIPING (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[04.2012 -] QEA38 |
88374-30010 |
from US $3.12 |
||
|
88374C
|
88374C
88374-30010 Valve, Service, No.1[04.2012 -] QEA38 |
88374-30010 |
from US $3.12 |
||
|
88375B
|
88375B
88375-30290 Cap, Service Valve (For Cooler Pipe)[04.2012 -] QEA38 |
88375-30290 |
from US $0.88 |
||
|
88375D
|
88375D
88375-30280 Cap, Service Valve (For Cooler Pipe)[04.2012 -] QEA38 |
88375-30280 |
from US $0.98 |
||
|
88467
|
88467
16716-28010 Cushion, Fan Shroud[04.2012 - 08.2014] QEA38 |
16716-28010 |
from US $2.13 |
||
|
88703
|
88703
88703-0R050
Hose Sub-Assy, Discharge
[04.2012 -] QEA38 |
88703-0R050 |
— | ||
|
88704
|
88704
88704-0R050
Hose Sub-Assy, Suction
[04.2012 -] QEA38 |
88704-0R050 |
— | ||
|
88704A
|
88704A
88704-0R060
Hose Sub-Assy, Suction, A
[04.2012 -] QEA38 |
88704-0R060 |
— | ||
|
88706A
|
88706A
88706-0R070
Tube Sub-Assy, Liquid, A
[04.2012 -] QEA38 |
88706-0R070 |
— | ||
|
88707
|
88707
88707-0R040
Pipe Sub-Assy, Suction
[04.2012 -] QEA38 |
88707-0R040 |
— | ||
|
88708
|
88708
88708-0R010
Hose Sub-Assy, Liquid
[04.2012 -] QEA38 |
88708-0R010 |
— | ||
|
88719A
|
88719A
88719-33020 Sensor, Airconditioner Pressure[04.2012 -] QEA38 |
88719-33020 |
from US $124.05 |
||
|
90105A0103
|
90105A0103
90105-A0103
Bolt(For Camshaft Housing Set)
|
90105-A0103 |
— | ||
|
90105A0144
|
90105A0144
90105-A0144
New Genuine Part
|
90105-A0144 |
— | ||
|
90119A0181
|
90119A0181
90119-A0181
New Genuine Part
|
90119-A0181 |
— | ||
|
90178A0101
|
90178A0101
90178-A0101
New Genuine Part
|
90178-A0101 |
— | ||
|
886880R090
|
886880R090
88688-0R090
Bracket, Cooler Diaphragm
|
88688-0R090 |
— | ||
|
886880R100
|
886880R100
88688-0R100
Bracket, Cooler Diaphragm
|
88688-0R100 |
— | ||
|
886880R110
|
886880R110
88688-0R110
Bracket, Cooler Diaphragm
|
88688-0R110 |
— | ||
|
886880R120
|
886880R120
88688-0R120
Bracket, Cooler Diaphragm
|
88688-0R120 |
— | ||
|
886880R130
|
886880R130
88688-0R130
Bracket, Cooler Diaphragm
|
88688-0R130 |
— | ||
|
8844608030
|
8844608030
88446-08030
Bolt, Idle Pulley
|
88446-08030 |
— | ||
|
9006908007
|
9006908007
90069-08007 AC ORING |
90069-08007 |
from US $1.35 |
||
|
9006908009
|
9006908009
90069-08009 GASKET |
90069-08009 |
US $4.66 |
||
|
9006908011
|
9006908011
90069-08011 AC ORING |
90069-08011 |
US $4.22 |
||
|
9006908012
|
9006908012
90069-08012 New Genuine Part |
90069-08012 |
US $4.37 |
||
|
9009900264
|
9009900264
90099-00264
SCREW
|
90099-00264 |
— |
