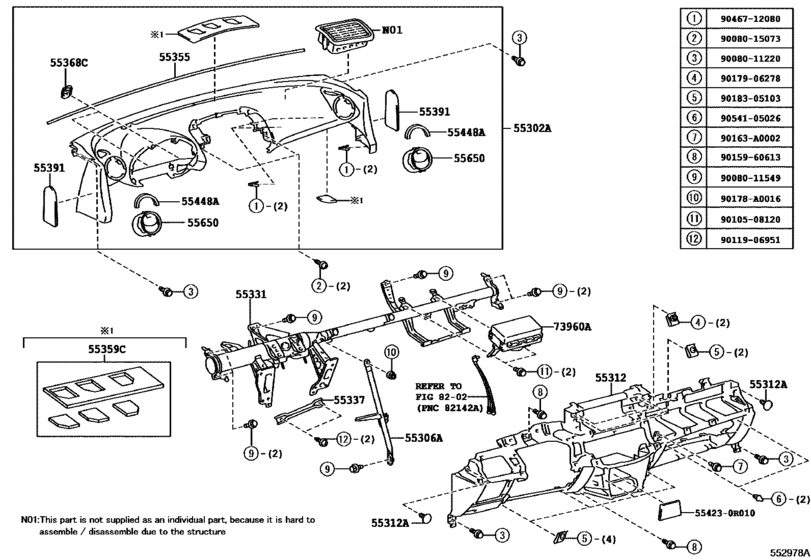

Instrument Panel & Glove Compartment ([04.2012 - ] (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55302A
|
55302A
55302-0R060-B0
Panel Sub-Assy, Instrument, Upper
[04.2012 - 08.2014] QEA38 DR GRAY,TRIM1# |
55302-0R060-B0 |
— | ||
|
55306A
|
55306A
55306-0R010
Brace Sub-Assy, Instrument Panel, No.1
[04.2012 -] QEA38 |
55306-0R010 |
— | ||
|
55312
|
55312
55312-0R010-B1
Panel, Instrument, Lower
[04.2012 - 08.2014] QEA38 GRAY,TRIM1# |
55312-0R010-B1 |
— | ||
|
55312A
|
55312A
90467-05161-B0 Clip, Instrument Panel[04.2012 - 08.2014] QEA38 DK.GRAY |
90467-05161-B0 |
US $1.25 |
||
|
55331
|
55331
55330-0R040
Reinforcement, Instrument Panel
[04.2012 -] QEA38 |
55330-0R040 |
— | ||
|
55337
|
55337
55337-0R010
Reinforcement, Instrument Panel Sub
[04.2012 -] QEA38 |
55337-0R010 |
— | ||
|
55355
|
55355
55355-0R010
Cushion, Instrument Panel, No.1
[04.2012 -] QEA38 |
55355-0R010 |
— | ||
|
55359C
|
55359C
55359-0R030
Coshion, Instrument Panel, No.5
[04.2012 -] QEA38 |
55359-0R030 |
— | ||
|
55368C
|
55368C
55368-0R010
Bracket, Meter Mounting
[04.2012 -] QEA38 |
55368-0R010 |
— | ||
|
55391
|
55391
55391-0R030
Cushion, Instrument Panel, Lower No.1
[04.2012 -] QEA38 |
55391-0R030 |
— | ||
|
55448A
|
55448A
55448-0R010
Cushion, Instrument Panel Finish, No.1
[04.2012 -] QEA38 |
55448-0R010 |
— | ||
|
55650
|
55650
55650-0R011-B1
Register Assy, Instrument Panel, No.1
[04.2012 - 08.2014] QEA38 GRAY,TRIM1# |
55650-0R011-B1 |
— | ||
|
73960A
|
73960A
73960-0R010
Air Bag Assy, Instrument Panel Passenger W/o Door
[04.2012 - 04.2014] QEA38 |
73960-0R010 |
— | ||
| replacement | |||||
|
73960A
|
73960A
73960-0R012
Air Bag Assy, Instrument Panel Passenger W/o Door
[04.2012 - 04.2014] QEA38 |
73960-0R012 |
— | ||
|
73960A
|
73960A
73960-0R012
Air Bag Assy, Instrument Panel Passenger W/o Door
[05.2014 -] QEA38 |
73960-0R012 |
— | ||
|
90163A0002
|
90163A0002
90163-A0002
New Genuine Part
|
90163-A0002 |
— | ||
|
90178A0016
|
90178A0016
90178-A0016
New Genuine Part
|
90178-A0016 |
— | ||
|
554230R010
|
554230R010
55423-0R010
Panel, Stereo Player Finish
|
55423-0R010 |
— | ||
|
9008011220
|
9008011220
90080-11220 BOLT WWASHER |
90080-11220 |
US $0.83 |
||
|
9008011549
|
9008011549
90080-11549
New Genuine Part
|
90080-11549 |
— | ||
|
9008015073
|
9008015073
90080-15073
SCREW WWASHER TAPP
|
90080-15073 |
— | ||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.61 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.43 |
||
|
9015960613
|
9015960613
90159-60613 New Genuine Part |
90159-60613 |
US $1.08 |
||
|
9017906278
|
9017906278
90179-06278 NUT |
90179-06278 |
US $1.79 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.61 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.76 |
||
|
9054105026
|
9054105026
90541-05026 Cushion(For Glove Compartment) |
90541-05026 |
US $1.31 |
||
