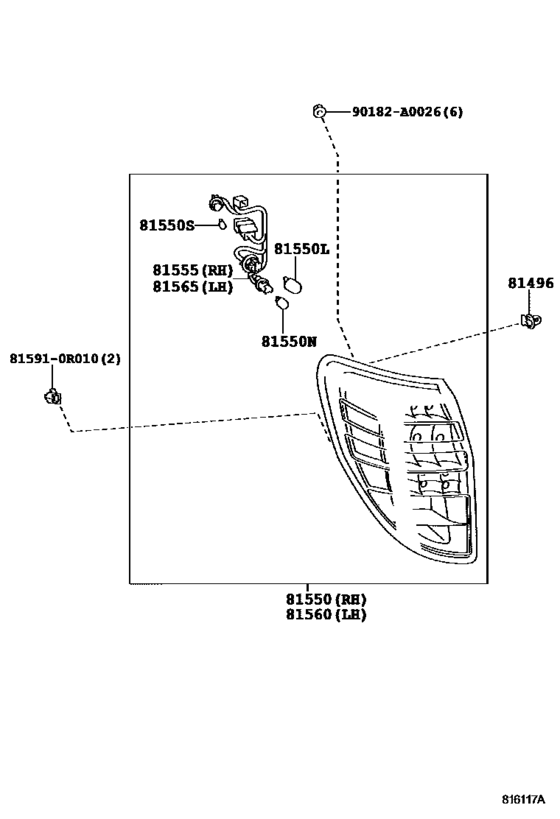

Rear Combination Lamp ([04.2012 - ] (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-0R010
Guide, Rear Combination Lamp
[04.2012 -] QEA38 |
81496-0R010 |
— | ||
|
81550
|
81550
81550-0R040
Lamp Assy, Rear Combination, Rh
[04.2012 -] QEA38 |
81550-0R040 |
— | ||
|
81550L
|
81550L
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[04.2012 -] QEA38 |
90981-15011 |
from US $4.60 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[04.2012 -] QEA38 |
90981-11059 |
from US $3.24 |
||
|
81550S
|
81550S
99132-12050 Bulb (12V 5W)[04.2012 -] QEA38 |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81550S
|
81550S
90080-81053 Bulb(For Clearance Lamp)[04.2012 -] QEA38 |
90080-81053 |
US $1.01 |
||
|
81555
|
81555
81555-0R040
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[04.2012 -] QEA38 |
81555-0R040 |
— | ||
|
81560
|
81560
81560-0R040
Lamp Assy, Rear Combination, Lh
[04.2012 -] QEA38 |
81560-0R040 |
— | ||
|
81565
|
81565
81555-0R040
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[04.2012 -] QEA38 |
81555-0R040 |
— | ||
|
90182A0026
|
90182A0026
90182-A0026
New Genuine Part
|
90182-A0026 |
— | ||
|
815910R010
|
815910R010
81591-0R010
Lens And Body, Reflex Side Reflector, Lh
|
81591-0R010 |
— | ||
