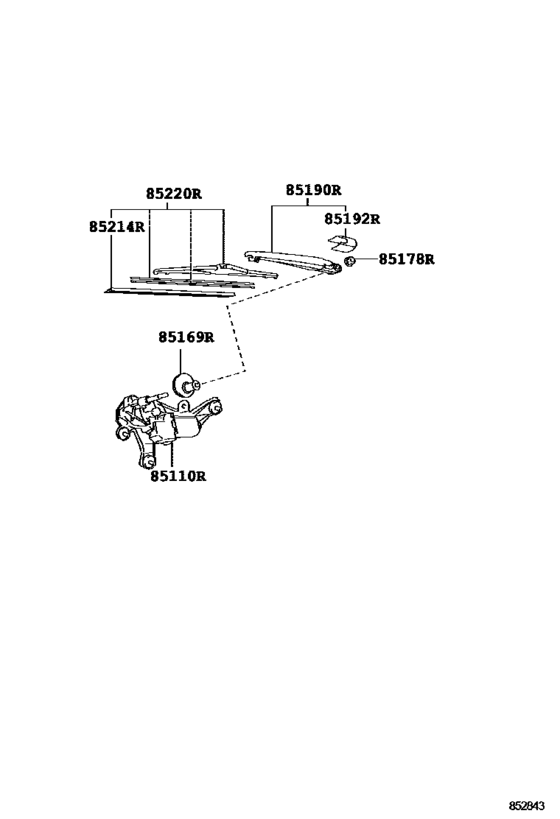

Rear Wiper ([04.2012 - ] (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110R
|
85110R
85130-0R010
Motor Assy, Rear Wiper
[04.2012 -] QEA38 |
85130-0R010 |
— | ||
|
85169R
|
85169R
85143-0R010
Grommet, Rear Wiper Motor
[04.2012 -] QEA38 |
85143-0R010 |
— | ||
|
85178R
|
85178R
90080-17021
Nut (For Rear Wiper Arm Setting)
[04.2012 -] QEA38 |
90080-17021 |
— | ||
| replacement | |||||
|
85178R
|
85178R
90179-06158 Nut, Rear Wiper Link Pivot, No.2[04.2012 -] QEA38 |
90179-06158 |
from US $0.98 |
||
|
85190R
|
85190R
85241-02050
Arm Assy, Rear Wiper
[04.2012 -] QEA38 |
85241-02050 |
— | ||
|
85192R
|
85192R
85292-02060
Cover, Rear Wiper Arm
[04.2012 -] QEA38 |
85292-02060 |
— | ||
|
85214R
|
85214R
85214-05110 Rubber, Rear Wiper[04.2012 -] QEA38 |
85214-05110 |
from US $6.61 |
||
|
85220R
|
85220R
85242-02040 Blade Assy, Rear WiperRR WIPER [04.2012 -] QEA38 |
85242-02040 |
US $20.51 |
||
