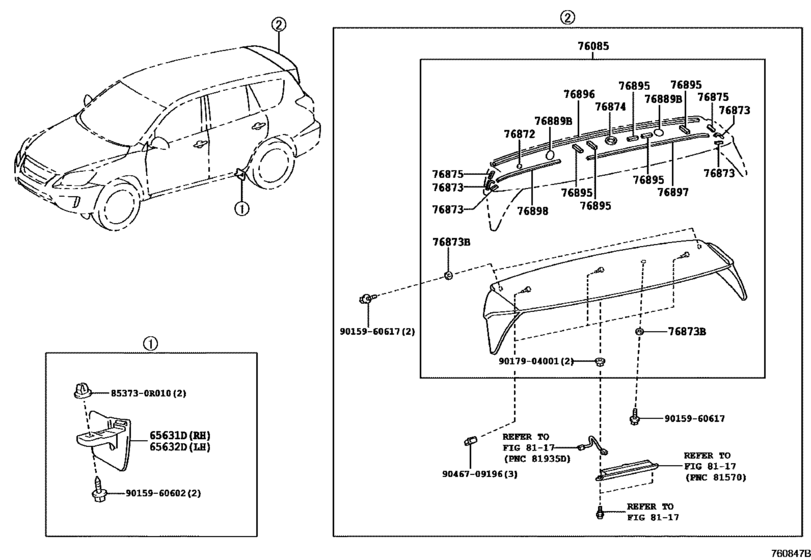

Spoiler & Side Mudguard ([04.2012 - ] (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65631D
|
65631D
65631-0R040
Plate, Rear Wheel House, Front Rh
[04.2012 - 08.2014] QEA38 |
65631-0R040 |
— | ||
|
65632D
|
65632D
65632-0R040
Plate, Rear Wheel House, Front Lh
[04.2012 -] QEA38 |
65632-0R040 |
— | ||
|
76085
|
76085
76085-0R901-A0
Spoiler Sub-Assy, Rear
[04.2012 -] QEA38 SUPER WHITE 2,040 |
76085-0R901-A0 |
— | ||
|
76085
|
76085
76085-0R901-A1
Spoiler Sub-Assy, Rear
[04.2012 -] QEA38 WHITE PEARL CS.,070 |
76085-0R901-A1 |
— | ||
|
76085
|
76085
76085-0R901-B0
Spoiler Sub-Assy, Rear
[04.2012 -] QEA38 SILVER ME.,1F7 |
76085-0R901-B0 |
— | ||
|
76085
|
76085
76085-0R901-B1
Spoiler Sub-Assy, Rear
[04.2012 -] QEA38 GRAY ME.,1G3 |
76085-0R901-B1 |
— | ||
|
76085
|
76085
76085-0R901-J0
Spoiler Sub-Assy, Rear
[04.2012 -] QEA38 GRAYISH BLUE M.M.,8V5 |
76085-0R901-J0 |
— | ||
|
76872
|
76872
76872-0R010
Protector, Rear Spoiler, No.1
[04.2012 -] QEA38 |
76872-0R010 |
— | ||
|
76873
|
76873
76875-0R020
Protector, Rear Spoiler, No.2
[04.2012 - 08.2014] QEA38 |
76875-0R020 |
— | ||
|
76873B
|
76873B
76873-0R010
Protector, Rear Spoiler, No.2
[04.2012 -] QEA38 |
76873-0R010 |
— | ||
|
76874
|
76874
76874-0R010
Protector, Rear Spoiler, No.3
[04.2012 -] QEA38 |
76874-0R010 |
— | ||
|
76875
|
76875
76876-0R010
Protector, Rear Spoiler, No.4
[04.2012 - 08.2014] QEA38 |
76876-0R010 |
— | ||
|
76889B
|
76889B
76889-0R010
Seal, Rear Spoiler, No.1
[04.2012 -] QEA38 |
76889-0R010 |
— | ||
|
76895
|
76895
76895-0R010
Protector, Rear Spoiler, No.5
[04.2012 - 08.2014] QEA38 |
76895-0R010 |
— | ||
|
76896
|
76896
76896-0R010
Protector, Rear Spoiler, No.6
[04.2012 - 08.2014] QEA38 |
76896-0R010 |
— | ||
|
76897
|
76897
76897-0R010
Protector, Rear Spoiler, Side Rh
[04.2012 -] QEA38 |
76897-0R010 |
— | ||
|
76898
|
76898
76897-0R010
Protector, Rear Spoiler, Side Rh
[04.2012 - 06.2012] QEA38 L=655 |
76897-0R010 |
— | ||
|
76898
|
76898
76898-0R010
Protector, Rear Spoiler, Side Lh
[06.2012 -] QEA38 L=280 |
76898-0R010 |
— | ||
|
853730R010
|
853730R010
85373-0R010
Hose, Windshield Washer (from Joint To Nozzle)
|
85373-0R010 |
— | ||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.62 |
||
|
9015960617
|
9015960617
90159-60617 New Genuine Part |
90159-60617 |
US $1.61 |
||
|
9017904001
|
9017904001
90179-04001 NUT |
90179-04001 |
from US $1.19 |
||
|
9046709196
|
9046709196
90467-09196 Clip, Rear Spoiler, No.1 |
90467-09196 |
from US $0.92 |
