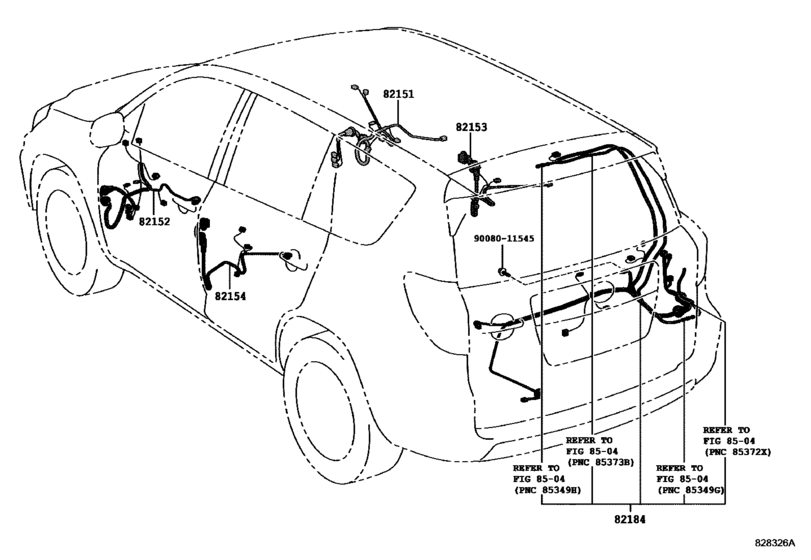

Wiring & Clamp ([04.2012 - ] DOOR (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82151
|
82151
82151-42A91
Wire, Front Door, Rh
[04.2012 -] QEA38 |
82151-42A91 |
— | ||
|
82152
|
82152
82152-42A01
Wire, Front Door, Lh
[04.2012 -] QEA38 |
82152-42A01 |
— | ||
|
82153
|
82153
82153-0R010
Wire, Rear Door, No.1
[04.2012 -] QEA38 |
82153-0R010 |
— | ||
|
82154
|
82154
82153-0R010
Wire, Rear Door, No.1
[04.2012 -] QEA38 |
82153-0R010 |
— | ||
|
82184
|
82184
82184-42251 Wire, Back Door, No.1[04.2012 -] QEA38 |
82184-42251 |
US $173.26 |
||
|
9008011545
|
9008011545
90080-11545 New Genuine Part |
90080-11545 |
US $1.60 |
