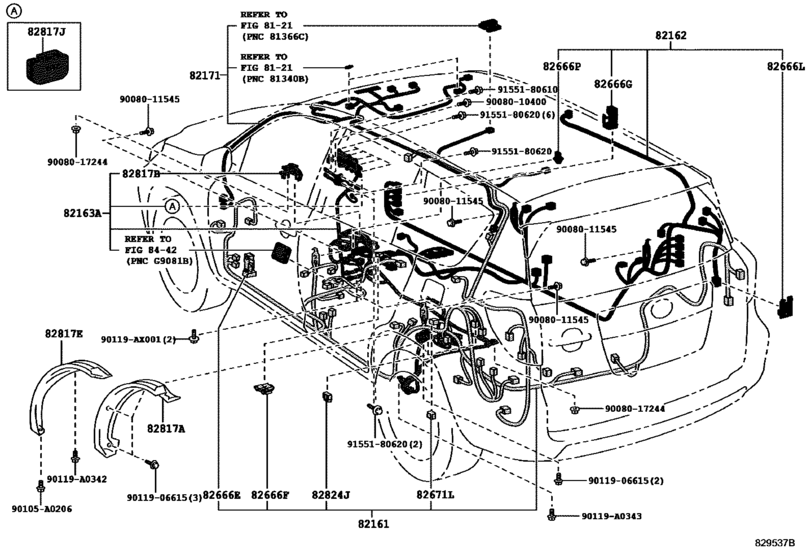

Wiring & Clamp ([04.2012 - 02.2013] FLOOR,FRAME & ROOF (1204-1302)) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82161
|
82161
82161-0R280
Wire, Floor
[04.2012 -] QEA38 |
82161-0R280 |
— | ||
|
82162
|
82162
82162-0R330
Wire, Floor, No.2
[04.2012 - 03.2014] QEA38 |
82162-0R330 |
— | ||
| replacement | |||||
|
82162
|
82162
82162-0R331
Wire, Floor, No.2
[04.2012 - 03.2014] QEA38 |
82162-0R331 |
— | ||
|
82162
|
82162
82162-0R331
Wire, Floor, No.2
[04.2014 -] QEA38 |
82162-0R331 |
— | ||
|
82163A
|
82163A
8216C-0R012
Wire, Floor, No.4
[04.2012 - 02.2013] QEA38 |
8216C-0R012 |
— | ||
| replacements | |||||
|
82163A
|
82163A
82119-0R012
Wire, Motor Compartment, No.5
[04.2012 - 02.2013] QEA38 |
82119-0R012 |
— | ||
|
82163A
|
82163A
8216C-0R014
Wire, Floor, No.4
[04.2012 - 02.2013] QEA38 |
8216C-0R014 |
— | ||
|
82163A
|
82163A
82817-0R131
Protector, Wiring Harness, No.6
[04.2012 - 02.2013] QEA38 |
82817-0R131 |
— | ||
|
82163A
|
82163A
G9081-0R013
Inlet Sub-Assy, Ev Charger W/cable
[04.2012 - 02.2013] QEA38 |
G9081-0R013 |
— | ||
|
82163A
|
82163A
8216C-0R014
Wire, Floor, No.4
[02.2013 - 05.2014] QEA38 |
8216C-0R014 |
— | ||
|
82163A
|
82163A
8216C-0R015
Wire, Floor, No.4
[05.2014 -] QEA38 |
8216C-0R015 |
— | ||
|
82171
|
82171
82171-0R170
Wire, Roof, No.1
[04.2012 - 08.2014] QEA38 |
82171-0R170 |
— | ||
|
82666E
|
82666E
82666-42200 Holder, Connector No.6[04.2012 -] QEA38 |
82666-42200 |
US $20.38 |
||
|
82666F
|
82666F
82666-42260
Holder, Connector No.7
[04.2012 -] QEA38 |
82666-42260 |
— | ||
|
82666G
|
82666G
82666-42210 Holder, Connector No.8[04.2012 -] QEA38 |
82666-42210 |
US $20.38 |
||
|
82666L
|
82666L
82666-42280 Holder, Connector No.9[04.2012 -] QEA38 |
82666-42280 |
US $5.82 |
||
|
82666P
|
82666P
82666-22130 Holder, Connector No.7[04.2012 -] QEA38 |
82666-22130 |
US $3.20 |
||
|
82671L
|
82671L
82671-30360 Block, Junction[04.2012 -] QEA38 |
82671-30360 |
US $8.04 |
||
|
82817A
|
82817A
77277-0R040
Protector, Wiring Harness, No.2
[04.2012 -] QEA38 |
77277-0R040 |
— | ||
|
82817B
|
82817B
82817-0R121
Protector, Wiring Harness, No.3
[04.2012 - 02.2013] QEA38 |
82817-0R121 |
— | ||
| replacement | |||||
|
82817B
|
82817B
82817-0R122
Protector, Wiring Harness, No.3
[04.2012 - 02.2013] QEA38 |
82817-0R122 |
— | ||
|
82817B
|
82817B
82817-0R122
Protector, Wiring Harness, No.3
[02.2013 -] QEA38 |
82817-0R122 |
— | ||
|
82817E
|
82817E
82817-0R130
Protector, Wiring Harness, No.6
[04.2012 - 01.2013] QEA38 |
82817-0R130 |
— | ||
| replacement | |||||
|
82817E
|
82817E
82817-0R131
Protector, Wiring Harness, No.6
[04.2012 - 01.2013] QEA38 |
82817-0R131 |
— | ||
|
82817E
|
82817E
82817-0R131
Protector, Wiring Harness, No.6
[02.2013 -] QEA38 |
82817-0R131 |
— | ||
|
82817J
|
82817J
82817-0R200
Protector, Wiring Harness, No.9
[04.2012 -] QEA38 |
82817-0R200 |
— | ||
|
82824J
|
82824J
82824-22080 Connector, Wiring Harness[04.2012 -] QEA38 |
82824-22080 |
US $20.68 |
||
|
90105A0206
|
90105A0206
90105-A0206
Plug(For Fuel Sub-Tank)
|
90105-A0206 |
— | ||
|
90119A0342
|
90119A0342
90119-A0342
New Genuine Part
|
90119-A0342 |
— | ||
|
90119A0343
|
90119A0343
90119-A0343
New Genuine Part
|
90119-A0343 |
— | ||
|
90119AX001
|
90119AX001
90119-AX001
New Genuine Part
|
90119-AX001 |
— | ||
|
9008010400
|
9008010400
90080-10400
Bolt (For Pawl Stopper Plate)
|
90080-10400 |
— | ||
|
9008011545
|
9008011545
90080-11545 New Genuine Part |
90080-11545 |
US $1.60 |
||
|
9008017244
|
9008017244
90080-17244 NUT FLANGE |
90080-17244 |
US $1.50 |
||
|
9011906615
|
9011906615
90119-06615 BOLT, WWASHER |
90119-06615 |
from US $1.50 |
||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $1.08 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.64 |
||
