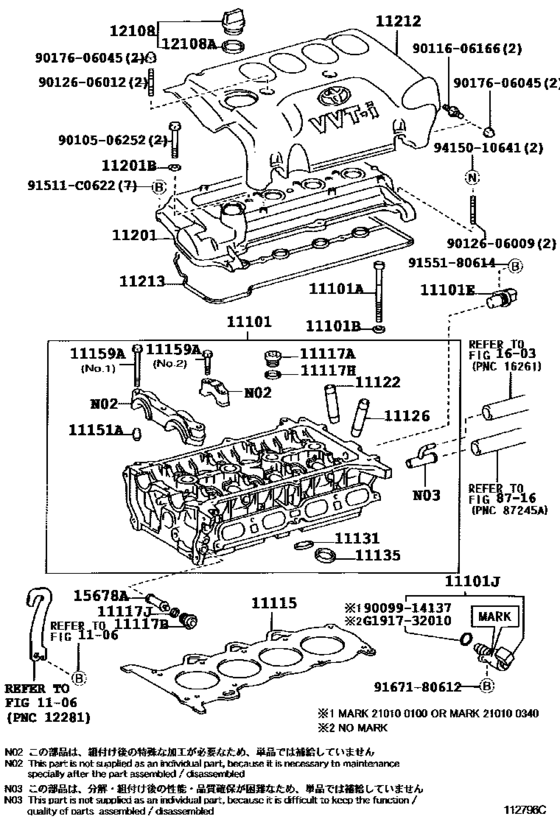

Cylinder Head ([04.2003 - ] (0304- )) Diagram Toyota SCION XB
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- NCP31
- body
- HB
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- From
- 04.2003
- To
- 12.2006
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-21061 Head Sub-Assy, Cylinder[04.2003 -] 1NZFE..NCP31 |
11101-21061 |
US $1,260.90 |
||
| replacement | |||||
|
11101
|
11101
11101-21062 Head Sub-Assy, Cylinder[04.2003 -] 1NZFE..NCP31 |
11101-21062 |
US $953.68 |
||
|
11101A
|
11101A
90910-02126
Bolt(For Cylinder Head Set)
[04.2003 - 12.2006] 1NZFE..NCP31 |
90910-02126 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02170 Bolt(For Cylinder Head Set)[04.2003 - 12.2006] 1NZFE..NCP31 |
90910-02170 |
from US $4.30 |
||
|
11101B
|
11101B
90201-09024 Washer, Plate(For Cylinder Head Set)[04.2003 -] 1NZFE..NCP31 |
90201-09024 |
from US $1.07 |
||
|
11101E
|
11101E
90919-05024 Sensor, Cam Position[04.2003 -] 1NZFE..NCP31 |
90919-05024 |
from US $69.38 |
||
|
11101J
|
11101J
15330-21011 Valve Assy, Camshaft Timing Oil Control[04.2003 -] 1NZFE..NCP31 |
15330-21011 |
from US $65.85 |
||
|
11115
|
11115
11115-21040 Gasket, Cylinder Head[04.2003 - 08.2003] 1NZFE..NCP31 |
11115-21040 |
US $64.65 |
||
| replacement | |||||
|
11115
|
11115
11115-21091 Gasket, Cylinder Head[04.2003 - 08.2003] 1NZFE..NCP31 |
11115-21091 |
from US $31.92 |
||
|
11115
|
11115
11115-21050
Gasket, Cylinder Head
[08.2003 -] 1NZFE..NCP31 |
11115-21050 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-21091 Gasket, Cylinder Head[08.2003 -] 1NZFE..NCP31 |
11115-21091 |
from US $31.92 |
||
|
11117A
|
11117A
90341-20002 Plug, W/head Taper Screw, No.1[04.2003 -] 1NZFE..NCP31 |
90341-20002 |
from US $3.02 |
||
|
11117B
|
11117B
90341-14013 Plug, W/head Taper Screw, No.1[04.2003 -] 1NZFE..NCP31 |
90341-14013 |
US $2.15 |
||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[04.2003 -] 1NZFE..NCP31 |
90430-20004 |
from US $0.98 |
||
|
11117J
|
11117J
90430-14009 Gasket(For Cylinder Head Screw Plug)[04.2003 -] 1NZFE..NCP31 |
90430-14009 |
from US $0.80 |
||
|
11122
|
11122
11122-21010 Bush, Intake Valve Guide[04.2003 -] 1NZFE..NCP31 STD |
11122-21010 |
from US $8.60 |
||
|
11122
|
11122
11123-21010 Bush, Intake Valve Guide[04.2003 -] 1NZFE..NCP31 O/S 0.05 |
11123-21010 |
US $6.33 |
||
|
11126
|
11126
11122-21010 Bush, Intake Valve Guide[04.2003 -] 1NZFE..NCP31 STD |
11122-21010 |
from US $8.60 |
||
|
11126
|
11126
11123-21010 Bush, Intake Valve Guide[04.2003 -] 1NZFE..NCP31 O/S 0.05 |
11123-21010 |
US $6.33 |
||
|
11131
|
11131
11131-21020 Seat, Intake Valve[04.2003 -] 1NZFE..NCP31 STD |
11131-21020 |
US $11.50 |
||
|
11131
|
11131
11132-21020 Seat, Intake Valve[04.2003 -] 1NZFE..NCP31 O/S 0.03 |
11132-21020 |
US $11.50 |
||
|
11135
|
11135
11135-21040 Seat, Exhaust Valve[04.2003 -] 1NZFE..NCP31 STD |
11135-21040 |
US $10.34 |
||
|
11135
|
11135
11136-21040 Seat, Exhaust Valve[04.2003 -] 1NZFE..NCP31 O/S 0.03 |
11136-21040 |
US $10.34 |
||
|
11151A
|
11151A
90250-06001 Pin, Straight[04.2003 -] 1NZFE..NCP31 L=14,OD=6 |
90250-06001 |
US $1.79 |
||
|
11159A
|
11159A
90109-06080 Bolt, Stud(For Head To Cylinder Head Cover)[04.2003 -] 1NZFE..NCP31 NO.2 |
90109-06080 |
from US $1.19 |
||
|
11159A
|
11159A
90119-08A29 Bolt(For Head To Camshaft Bearing Cap)[04.2003 -] 1NZFE..NCP31 NO.1 |
90119-08A29 |
US $1.79 |
||
|
11201
|
11201
11201-21050 Cover Sub-Assy, Cylinder Head[04.2003 - 12.2006] 1NZFE..NCP31 |
11201-21050 |
US $267.90 |
||
| replacement | |||||
|
11201
|
11201
11201-21051 Cover Sub-Assy, Cylinder Head[04.2003 - 12.2006] 1NZFE..NCP31 |
11201-21051 |
US $318.40 |
||
|
11201B
|
11201B
90210-06013 Washer, Seal(For Cylinder Head Cover)[04.2003 -] 1NZFE..NCP31 |
90210-06013 |
from US $0.80 |
||
|
11212
|
11212
11212-21030 Cover, Cylinder Head, No.2[04.2003 - 10.2004] 1NZFE..NCP31 |
11212-21030 |
US $96.10 |
||
| replacement | |||||
|
11212
|
11212
11212-21032
Cover, Cylinder Head, No.2
[04.2003 - 10.2004] 1NZFE..NCP31 |
11212-21032 |
— | ||
| replacement | |||||
|
11212
|
11212
11212-21060 Cover, Cylinder Head, No.2[04.2003 - 10.2004] 1NZFE..NCP31 |
11212-21060 |
from US $83.56 |
||
|
11212
|
11212
11212-21031 Cover, Cylinder Head, No.2[10.2004 - 09.2005] 1NZFE..NCP31 |
11212-21031 |
US $96.10 |
||
| replacement | |||||
|
11212
|
11212
11212-21032
Cover, Cylinder Head, No.2
[10.2004 - 09.2005] 1NZFE..NCP31 |
11212-21032 |
— | ||
| replacement | |||||
|
11212
|
11212
11212-21060 Cover, Cylinder Head, No.2[10.2004 - 09.2005] 1NZFE..NCP31 |
11212-21060 |
from US $83.56 |
||
|
11212
|
11212
11212-21032
Cover, Cylinder Head, No.2
[10.2005 -] 1NZFE..NCP31 |
11212-21032 |
— | ||
| replacement | |||||
|
11212
|
11212
11212-21060 Cover, Cylinder Head, No.2[10.2005 -] 1NZFE..NCP31 |
11212-21060 |
from US $83.56 |
||
|
11213
|
11213
11213-21011 Gasket, Cylinder Head Cover[04.2003 -] 1NZFE..NCP31 |
11213-21011 |
from US $15.87 |
||
|
12108
|
12108
12180-21021 Cap Sub-Assy, Oil Filler[04.2003 -] 1NZFE..NCP31 |
12180-21021 |
from US $13.28 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[04.2003 -] 1NZFE..NCP31 |
90430-37140 |
from US $1.17 |
||
|
15678A
|
15678A
15678-21010 Filter, Oil Control Valve[04.2003 -] 1NZFE..NCP31 |
15678-21010 |
from US $5.15 |
||
|
91511C0622
|
91511C0622
91511-C0622 Strainer Bolt |
91511-C0622 |
US $1.08 |
||
|
9009914137
|
9009914137
90099-14137 Ring, O(For Cam Timing Oil Control Valve) |
90099-14137 |
from US $2.16 |
||
|
9010506252
|
9010506252
90105-06252 Bolt(For Cylinder Head Cover) |
90105-06252 |
US $1.97 |
||
|
9011606166
|
9011606166
90116-06166 BOLT STUD |
90116-06166 |
US $1.25 |
||
|
9012606009
|
9012606009
90126-06009 STUD HEX LOBULAR |
90126-06009 |
US $2.33 |
||
|
9012606012
|
9012606012
90126-06012 STUD, HEX LOBULAR |
90126-06012 |
from US $1.21 |
||
|
9017606045
|
9017606045
90176-06045 NUT, CAP CYL HEAD COVER |
90176-06045 |
from US $0.78 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.66 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.66 |
||
|
9415010641
|
9415010641
94150-10641 Nut |
94150-10641 |
US $1.08 |
||
|
G191732010
|
G191732010
G1917-32010 RING O SOLENOID |
G1917-32010 |
from US $2.20 |
||
