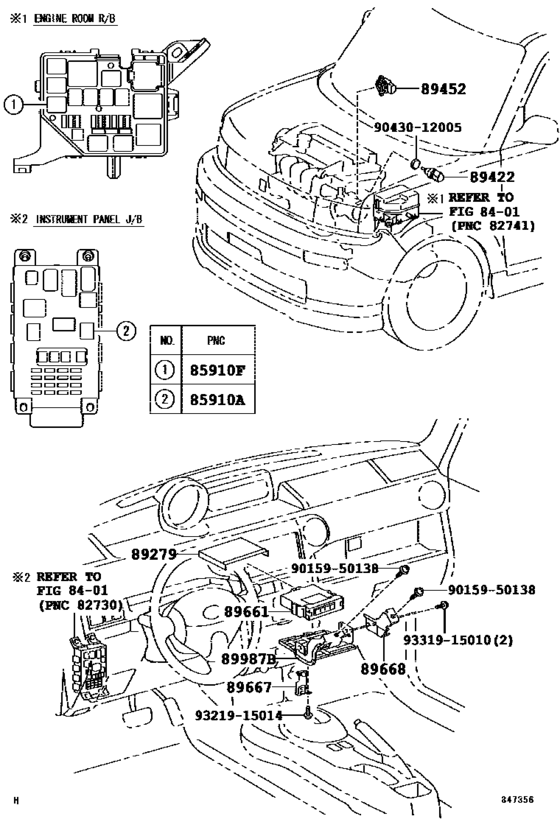

Electronic Fuel Injection System ([07.2005 - ] (0507- )) Diagram Toyota SCION XB
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- NCP31
- body
- HB
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- From
- 04.2003
- To
- 12.2006
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90987-02027 Relay[04.2003 -] NCP31 |
90987-02027 |
from US $47.11 |
||
|
85910F
|
85910F
90987-02027 Relay[04.2003 -] NCP31 |
90987-02027 |
from US $47.11 |
||
|
89279
|
89279
89279-52100 Cover, Engine Control Computer[07.2005 - 12.2006] NCP31 |
89279-52100 |
US $3.64 |
||
|
89422
|
89422
89422-16010 Sensor, Water Temperature (For E.f.i.)[04.2003 - 07.2005] NCP31 DENSO |
89422-16010 |
from US $40.49 |
||
|
89422
|
89422
89422-22030 Sensor, Water Temperature (For E.f.i.)[04.2003 - 07.2005] NCP31 NTC |
89422-22030 |
from US $50.04 |
||
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[07.2005 -] NCP31 DENSO |
89422-33030 |
from US $40.49 |
||
|
89452
|
89452
89452-20130 Sensor, Throttle Position (For E.f.i.)[04.2003 -] NCP31 |
89452-20130 |
from US $64.68 |
||
|
89661
|
89661
89661-52E30
Computer, Engine Control
[07.2005 - 12.2006] NCP31..MTM |
89661-52E30 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-52E31
Computer, Engine Control
[07.2005 - 12.2006] NCP31..MTM |
89661-52E31 |
— | ||
|
89661
|
89661
89666-52280
Computer, Engine Control
[04.2003 - 04.2004] NCP31..MTM |
89666-52280 |
— | ||
|
89661
|
89661
89666-52370
Computer, Engine Control
[04.2004 - 07.2005] NCP31..MTM |
89666-52370 |
— | ||
|
89667
|
89667
89667-52120 Bracket, Engine Control ComputerENGINE CONTROL COMPUTER [04.2003 - 07.2005] NCP31 |
89667-52120 |
US $4.37 |
||
|
89667
|
89667
89667-52260
Bracket, Engine Control Computer
[07.2005 - 12.2006] NCP31 |
89667-52260 |
— | ||
|
89668
|
89668
89668-52130 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [04.2003 - 07.2005] NCP31 |
89668-52130 |
US $4.37 |
||
|
89668
|
89668
89668-52280
Bracket, Engine Control Computer, No.2
[07.2005 - 12.2006] NCP31 |
89668-52280 |
— | ||
|
89987B
|
89987B
89987-52010 Bracket, Computer, No.1COMPUTER, NO.1 [07.2005 -] NCP31..MTM |
89987-52010 |
US $43.10 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.25 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.68 |
||
|
9321915014
|
9321915014
93219-15014 Screw, Cover Set, No.1 |
93219-15014 |
US $2.15 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
