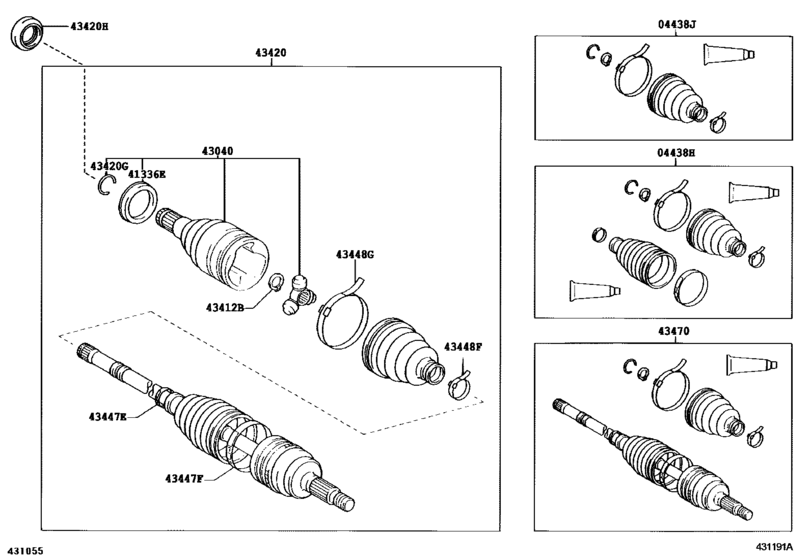

Front Drive Shaft ([04.2003 - ] LH (0304- )) Diagram Toyota SCION XB
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- NCP31
- body
- HB
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- From
- 04.2003
- To
- 12.2006
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04427-52260
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[05.2005 - 03.2006] NCP31 |
04427-52260 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04427-52891
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[05.2005 - 03.2006] NCP31 |
04427-52891 |
— | ||
|
04438H
|
04438H
04427-52580
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[04.2006 - 12.2006] NCP31 |
04427-52580 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04427-52891
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[04.2006 - 12.2006] NCP31 |
04427-52891 |
— | ||
|
04438H
|
04438H
04438-52041 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2003 - 05.2005] NCP31 |
04438-52041 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04438-52042 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2003 - 05.2005] NCP31 |
04438-52042 |
US $141.52 |
||
|
04438J
|
04438J
04437-52190 Boot Kit, Front Drive Shaft Inboard Joint, Rh[05.2005 - 12.2006] NCP31 |
04437-52190 |
US $74.26 |
||
| replacement | |||||
|
04438J
|
04438J
04437-52191 Boot Kit, Front Drive Shaft Inboard Joint[05.2005 - 12.2006] NCP31 |
04437-52191 |
from US $72.11 |
||
|
04438J
|
04438J
04438-52030 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.2003 - 05.2005] NCP31 |
04438-52030 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04437-52191 Boot Kit, Front Drive Shaft Inboard Joint[04.2003 - 05.2005] NCP31 |
04437-52191 |
from US $72.11 |
||
|
41336E
|
41336E
41336-12010 Cover, Dust(For Differential Side Gear Shaft)[04.2003 -] NCP31 |
41336-12010 |
from US $1.46 |
||
|
43040
|
43040
43403-10011
Joint Assy, Front Drive Inboard
[04.2003 -] NCP31 |
43403-10011 |
— | ||
| replacement | |||||
|
43040
|
43040
43403-0W031 JOINT SET, FR AXLE[04.2003 -] NCP31 |
43403-0W031 |
US $283.92 |
||
|
43412B
|
43412B
90520-22001 Ring, Shaft Snap (For Front Drive Inner Shaft Inner)[04.2003 -] NCP31 |
90520-22001 |
US $1.02 |
||
|
43420
|
43420
43420-52070 Shaft Assy, Front Drive, Lh[04.2003 -] NCP31 |
43420-52070 |
US $666.85 |
||
|
43420G
|
43420G
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[04.2003 -] NCP31 |
90521-26004 |
from US $1.79 |
||
|
43420H
|
43420H
90311-34028
Oil Seal, Front Drive Shaft, Lh
[04.2003 - 12.2006] NCP31..MTM |
90311-34028 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-34042 Oil Seal, Front Drive Shaft, Lh[04.2003 - 12.2006] NCP31..MTM |
90311-34042 |
from US $8.42 |
||
|
43447E
|
43447E
42345-52110 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[04.2003 -] NCP31 |
42345-52110 |
US $4.80 |
||
| replacement | |||||
|
43447E
|
43447E
42345-52260 Clamp (For Front Axle Outboard Joint Boot Rh)[04.2003 -] NCP31 |
42345-52260 |
US $3.94 |
||
|
43447F
|
43447F
42345-52100 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[04.2003 -] NCP31 |
42345-52100 |
US $6.99 |
||
| replacement | |||||
|
43447F
|
43447F
42345-52250 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[04.2003 -] NCP31 |
42345-52250 |
US $5.91 |
||
|
43448F
|
43448F
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[04.2003 -] NCP31 |
90949-01078 |
US $0.96 |
||
|
43448G
|
43448G
90949-01146 Clamp, No.2 (For Front Axle Inboard Joint Boot Setting)[04.2003 -] NCP31 |
90949-01146 |
US $4.40 |
||
|
43470
|
43470
43470-59045 Shaft Assy, Front Drive Outboard Joint, Lh[04.2003 - 05.2005] NCP31 |
43470-59045 |
US $666.85 |
||
| replacement | |||||
|
43470
|
43470
43470-59456 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [04.2003 - 05.2005] NCP31 |
43470-59456 |
US $444.08 |
||
|
43470
|
43470
43470-59455 Shaft Assy, Front Drive Outboard Joint, Lh[05.2005 -] NCP31 |
43470-59455 |
US $532.90 |
||
| replacement | |||||
|
43470
|
43470
43470-59456 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [05.2005 -] NCP31 |
43470-59456 |
US $444.08 |
||
